Description

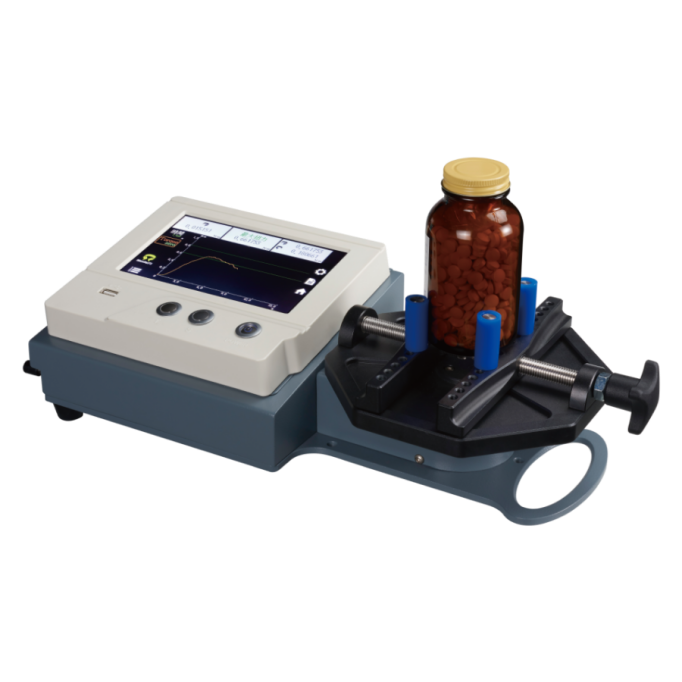

PW-UTM-T1 Digital Bottle Cap Torque Test Machine Bottle Cap Torque Tester For Sale
Application:

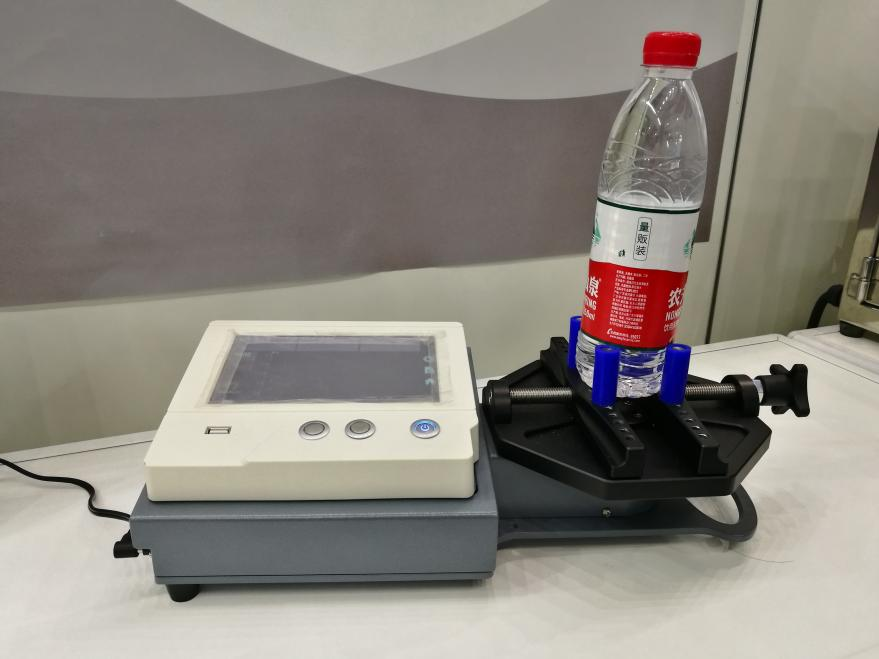

The bottle cap torque tester is a versatile measuring tool designed to test different types of bottle lid torque. It is primarily used for testing and calibrating tightening force, conducting torsional destructive testing of parts, and more. This tool finds extensive use in electric, light industry, machinery manufacturing, research institutions, and other fields.
Specification:
Measuring range: 0~10N-m, 0~100kgf-cm, 0~90lbf-in (other capacities are optional)
Display resolution: 0.001Nm
0.01kgf-cm
0.01lb-in
Vessel Diameter: Ø10~190mm
Measuring unit: Nm, mN-m, N-cm, kgf-cm, gf-cm ,lbf-ft, lbf-in, ozf-in
Test analysis: Maximum torque value, first peak value, second peak value (forward and reverse)
Taking point ratio:1200Hz
Precision:±1% of maximum capacity
Overload: 150% of maximum capacity
Machine power supply: single-phase 100V~240V
Machine size: 45x19x13.6cm
Machine weight: 5.6kg
Display resolution: 0.001Nm
0.01kgf-cm
0.01lb-in
Vessel Diameter: Ø10~190mm
Measuring unit: Nm, mN-m, N-cm, kgf-cm, gf-cm ,lbf-ft, lbf-in, ozf-in
Test analysis: Maximum torque value, first peak value, second peak value (forward and reverse)
Taking point ratio:1200Hz
Precision:±1% of maximum capacity
Overload: 150% of maximum capacity
Machine power supply: single-phase 100V~240V
Machine size: 45x19x13.6cm
Machine weight: 5.6kg
