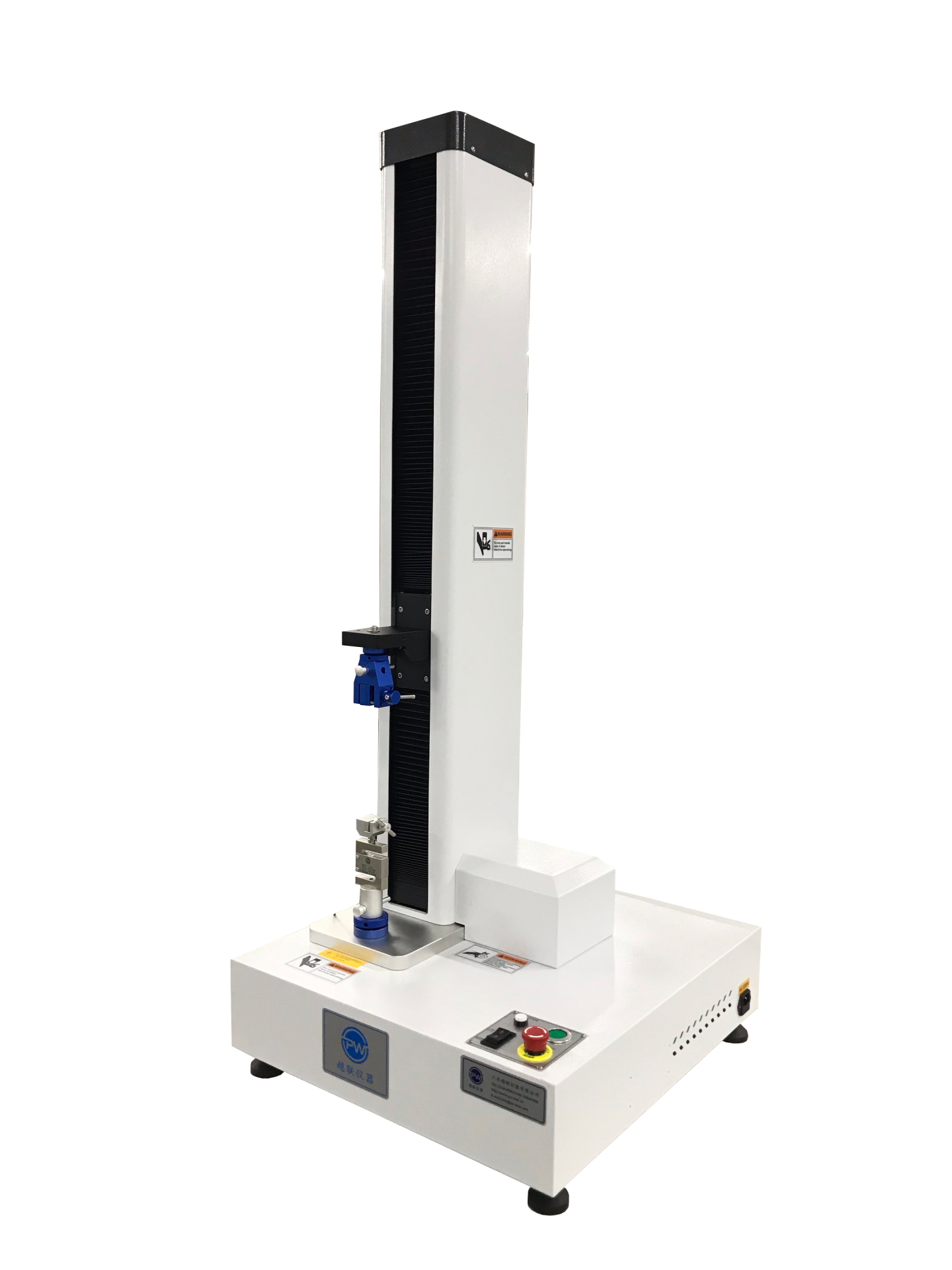

PW-US71H3 Vertical High-Speed Peel Strength Tester

PW-US71H3 Vertical High-Speed Peel Strength Tester

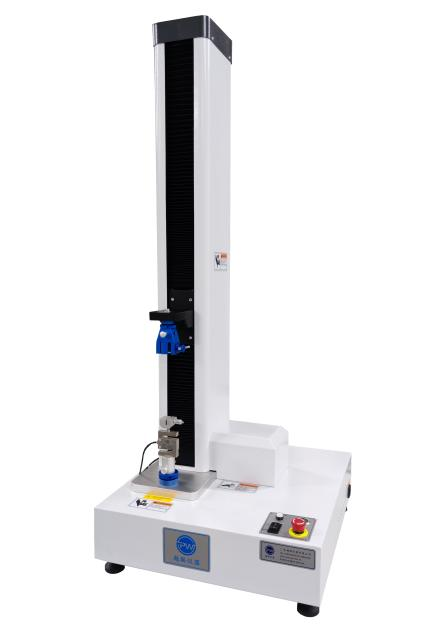

PW-US71H3 Vertical High-Speed Peel Strength Tester - Image 2

Description

PW-US71H3  Vertical High–Speed Peel Strength Tester

Application

The PW-US71H3 Vertical High-Speed Peel Testing Tester is suitable for high-speed peel testing of products such as release films, release papers, films, tapes, and other adhesive materials, as well as new materials. It can perform ultra-high-speed 180° peel tests and is widely used in the R&D, production, and application sectors of the new materials industry.

Features

  1. The testing functions are extensive, designed specifically to meet the requirements of ultra-high-speed 180-degree peel force testing.
  2. The software features are more powerful, allowing for customizable settings to meet any specific needs, including multi-range data acquisition and fully editable reporting capabilities.
  3. The machine is designed with an aesthetically pleasing and refined appearance. It is easy to operate, with strong software expandability and high precision.
  4. Driven by a precision servo motor, the machine can achieve a maximum speed of 30M/MIN (300,000 mm/min).
  5. The casing is made of high-grade ABS plastic, treated with advanced painting and molding processes, ensuring durability and an attractive appearance.

Technical Specifications

  • Model: PW-US71H3
  • Capacity Options: 50N, 100N, 200N, 500N, 1KN, 2KN(Dual capacity configuration available with quick-change capability)
  • Control Method: Fully computer-controlled with powerful software functions
  • Force Units: N, kN, gf, kgf, lbf, kP, tf (SI), tf (long), etc.
  • Length Units: mm, cm, Inch, m, km, um, etc.
  • Stress Units: Pa, KPa, MPa, GPa, KN/㎡, N/㎡, etc.
  • Force Resolution: 1/1,000,000
  • Accuracy: Better than Class 0.5
  • Travel Resolution: 1/1,000,000 mm
  • Sampling Rate: 1000 times per second
  • Effective Travel: 650 mm
  • Speed Range: 01~30,000 mm/min (Customizable)
  • Testing Space: Ø140 mm
  • Stopping Modes: Overload stop, emergency stop button, automatic stop upon specimen failure, automatic stop at upper/lower limits
  • Machine Power: Servo motor drive
  • Machine Dimensions (W×D×H): 540×590×1350 mm
  • Net Weight: 70 kg
  • Power: 500W
  • Power Supply: 220V, 50~60Hz
  • Standard Equipment: USB/RS232 connection cable (1), software (1), peel fixture (1), manual roller (1), test steel plates (5)
