PW-US30 Horizontal High Speed Peel Strength Tester Universal Testing Machine For Sale

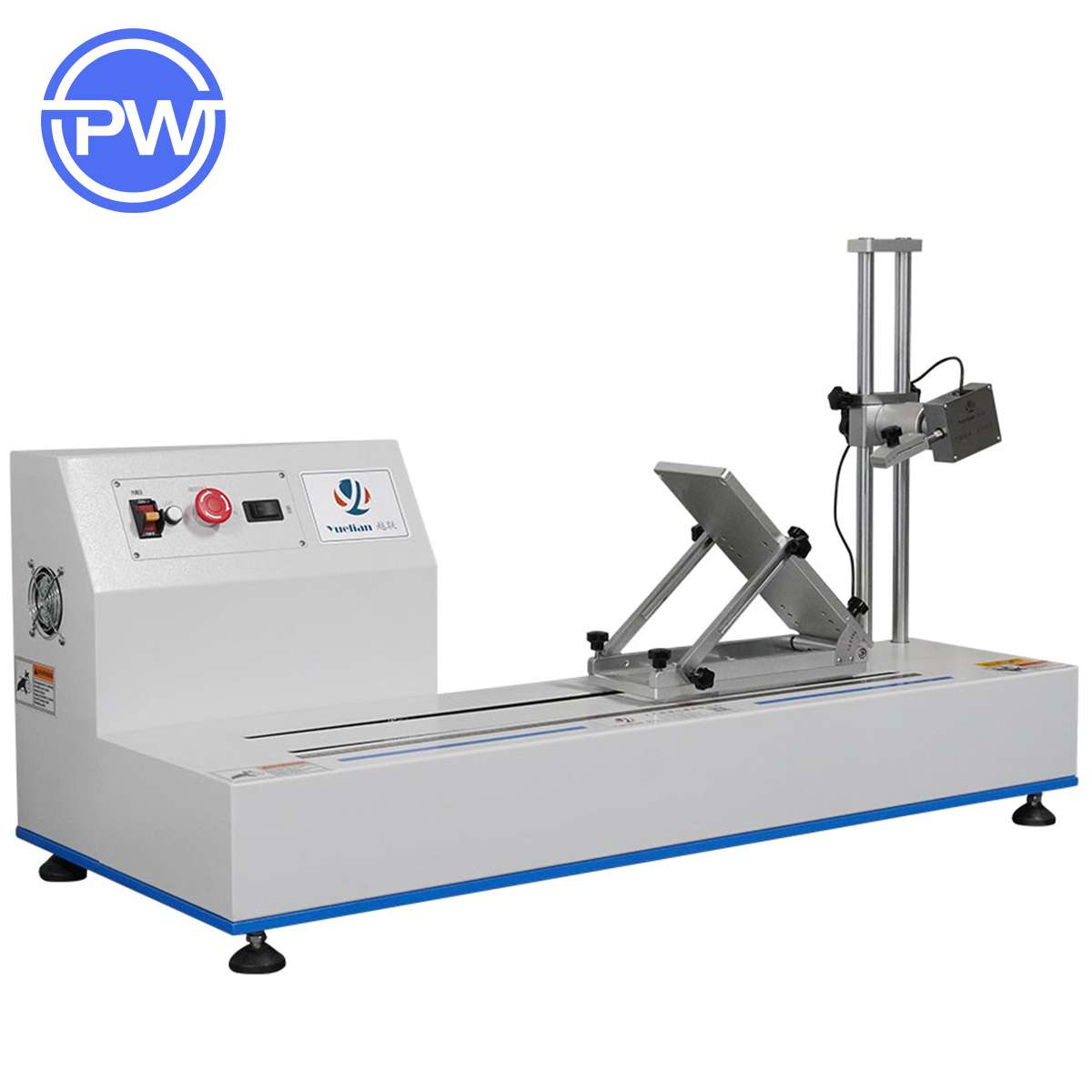

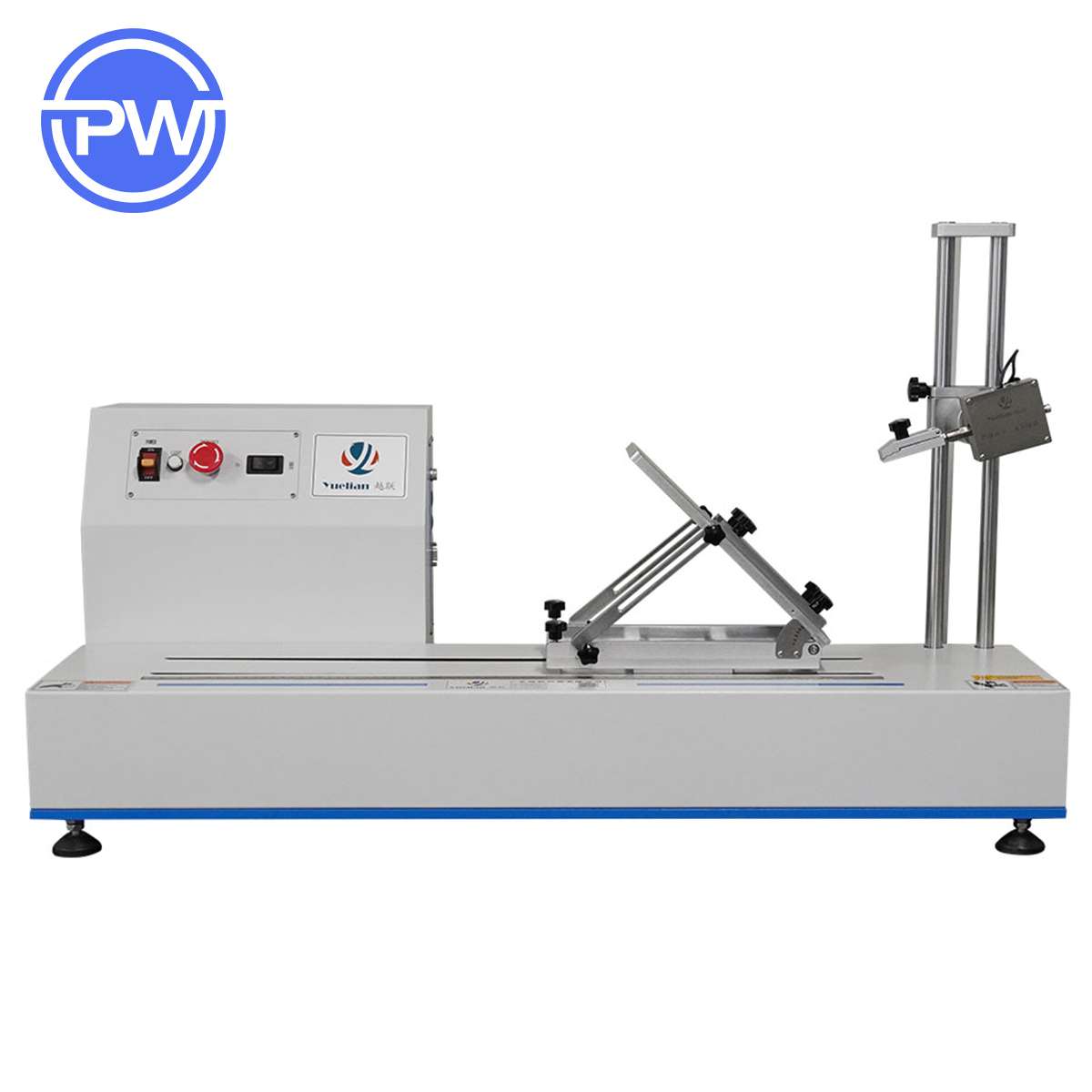

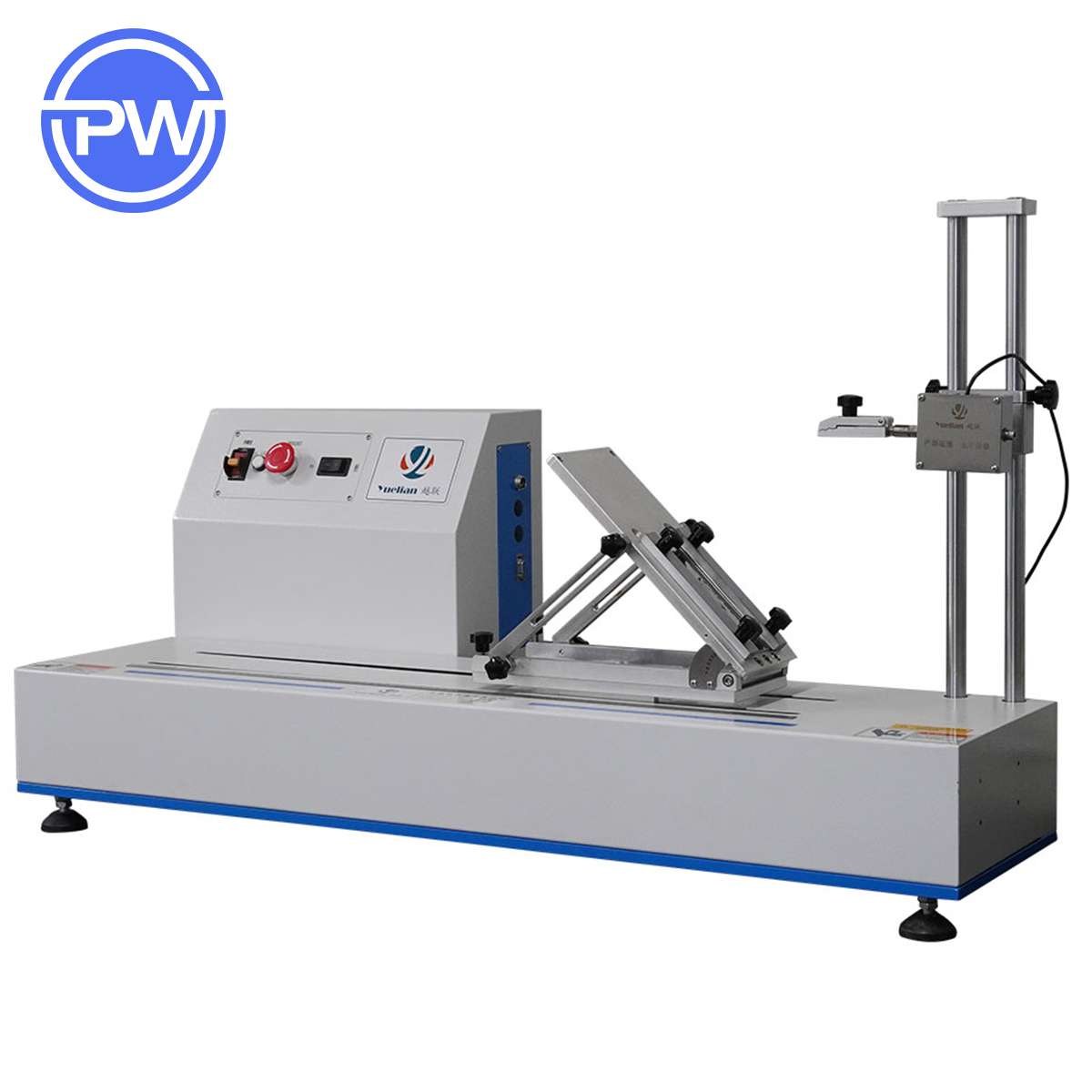

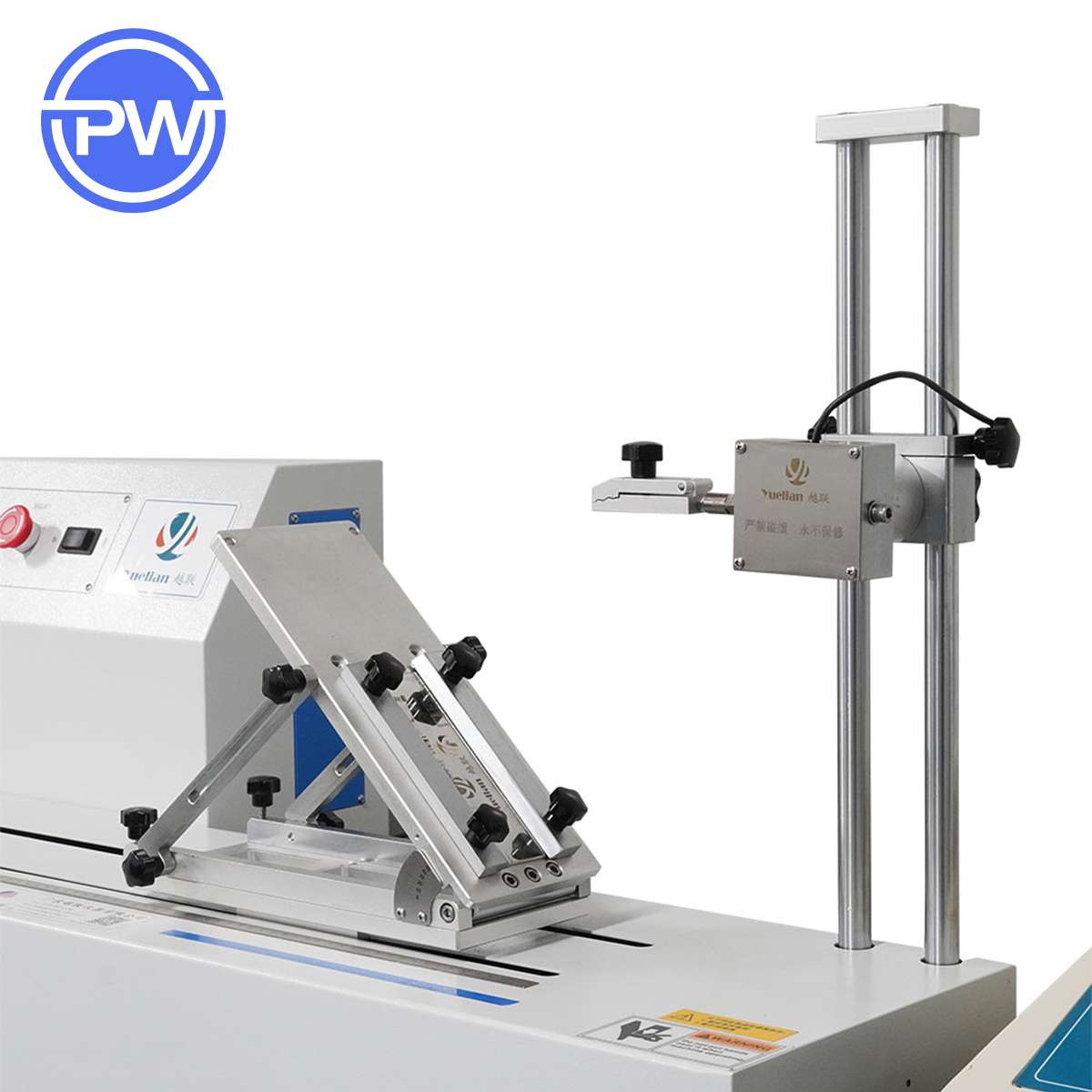

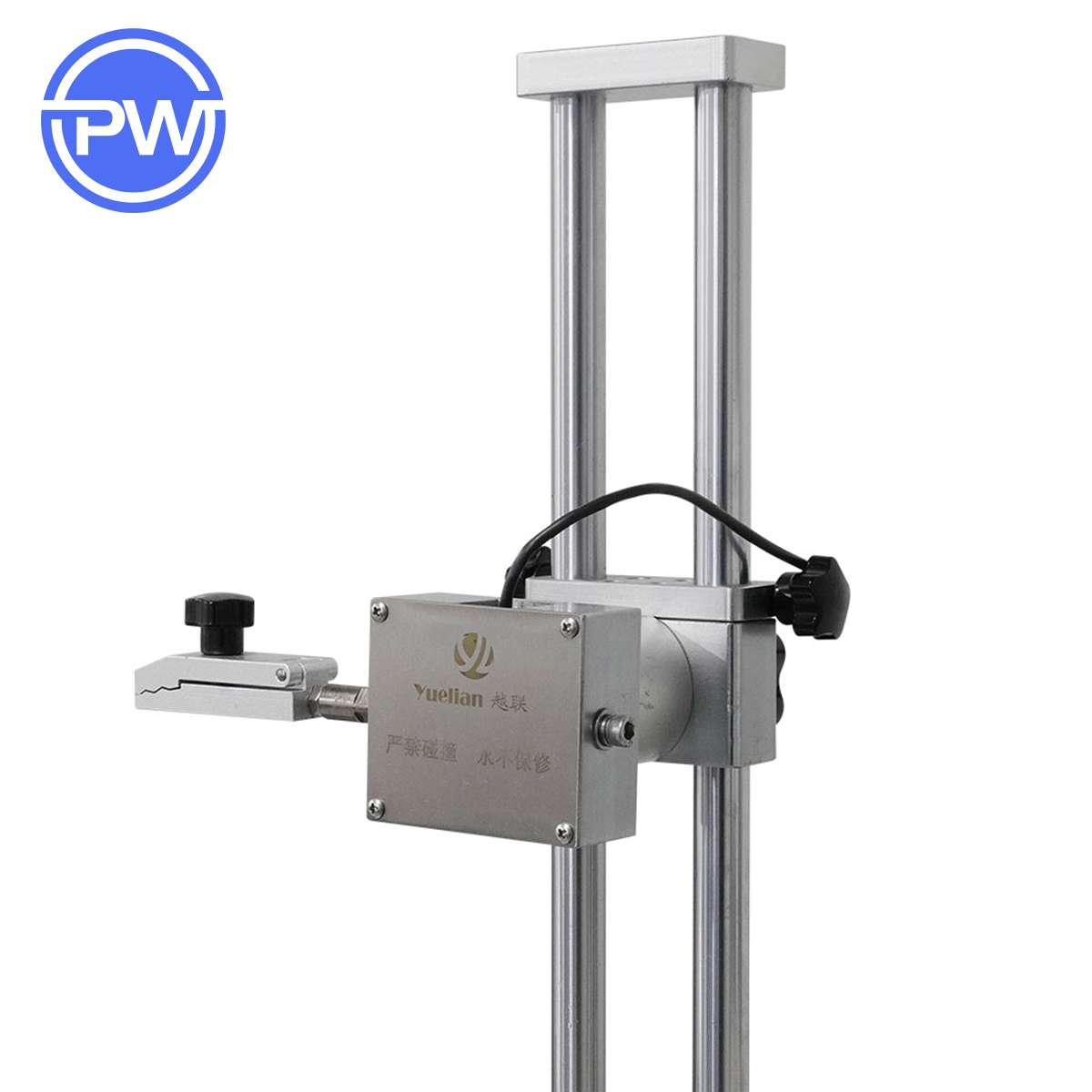

The machine is developed and designed for 90° and 180° peel test, friction test and horizontal tensile test and other related tests.Especially there is a test piece fixing plate with adjustable angle on the machine, and the height and angle of the sensor can be changed according to the needs of users. A variety of peel tests can be performed at different angles.
This machine is operated by computer for machine setting and curve test analysis, which is very convenient in operation.
Test & Control System is designed for PC Electronic Universal Testing Machines, PC Hydraulic Universal Testing Machines and PC Compression testers; Can conduct tensile, compression, bending, shearing, tearing and peeling test; The PC and interface board are used to collect, save, process and print the test results of the data; It can calculate parameters such as maximum force, yield force, average peel force, maximum deformation, yield point, elastic modulus, etc.;It can be used for curve processing, multi-sensor support, graphical interface, flexible data processing, MS-ACCESS database support, making the system more powerful.making more powerful function of system.
| Item | PW-US30 |
| Capacity (MAX) | 1KN(optional 10N~1KN force sensor) |
| Control Method | Full computer control mode, powerful software |
| Unit of Force | N、kN、gf、kgf、lbf、kP、tf(SI)、tf(long)… |
| Unit of Length | mm、cm、Inch、m、km、um… |
| Force Resolution | 1/1,000,000 |
| Accuracy | ±0.1% |
| Stroke Resolution | 1/1,000,000 |
| Sensor Accuracy | 3/10,000 |
| Effective Stroke | 650mm; (Customizable) |
| Speed Range | 0.01~30000mm/min; (Customizable) |
| Test Space | 100mm(Customizable) |
| Shutdown Mode | Overload stop, emergency stop key, automatic stop for test piece destruction, automatic stop for upper and lower limit setting; |
| Machine Power | Servo motor drive |
| Machine Dimensions | 1300×500×850mm(W×D×H) |
| Machine Net Weight | About 55KG |
| Power | 400W |
| Power Supply | 220V 50~60HZ |
| Machine Accessories | 1 USB communication cable, 1 software |
| Optional Accessories | Computers, peel-off steel sheets, rolling wheels |
