Description

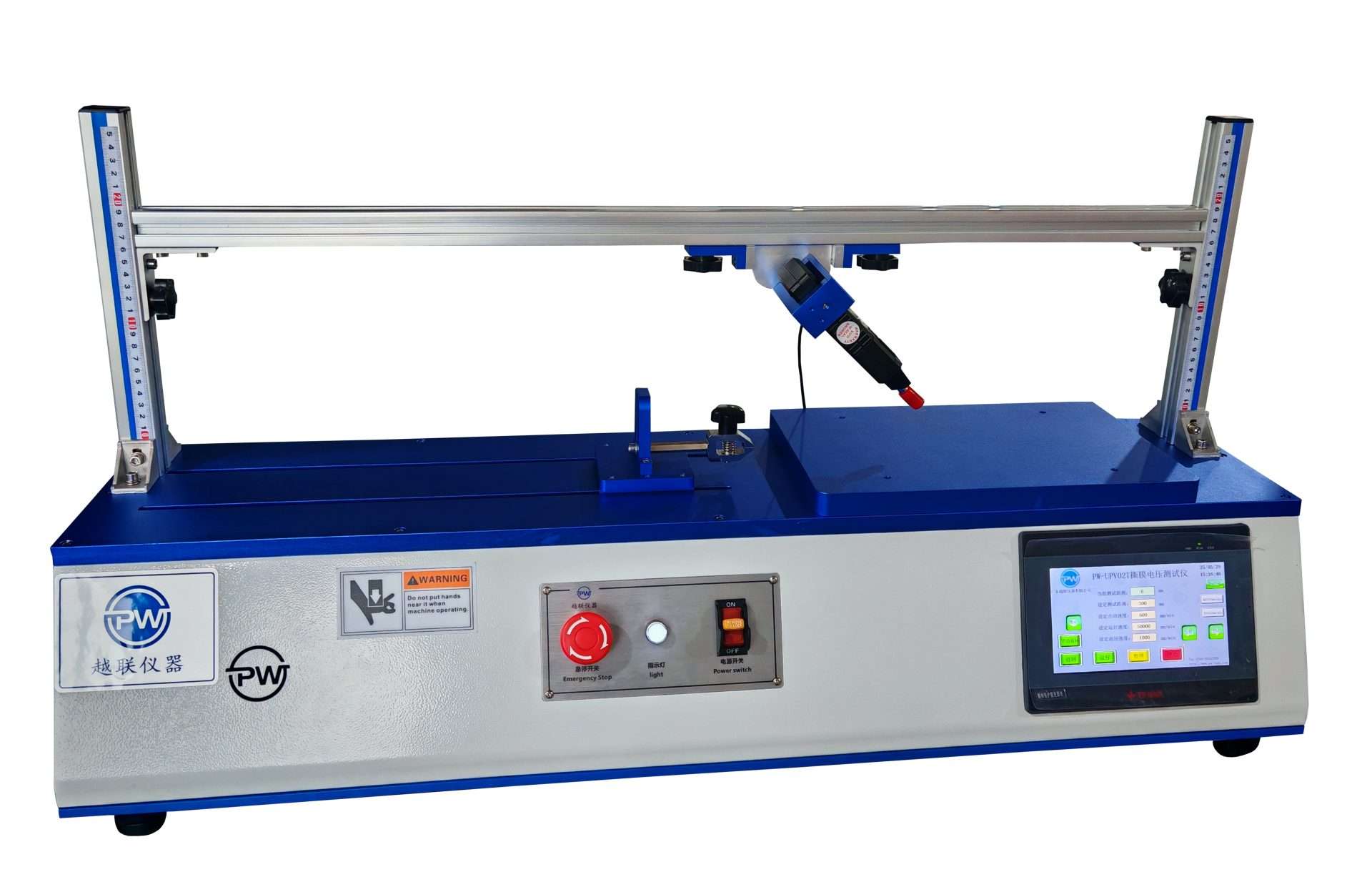

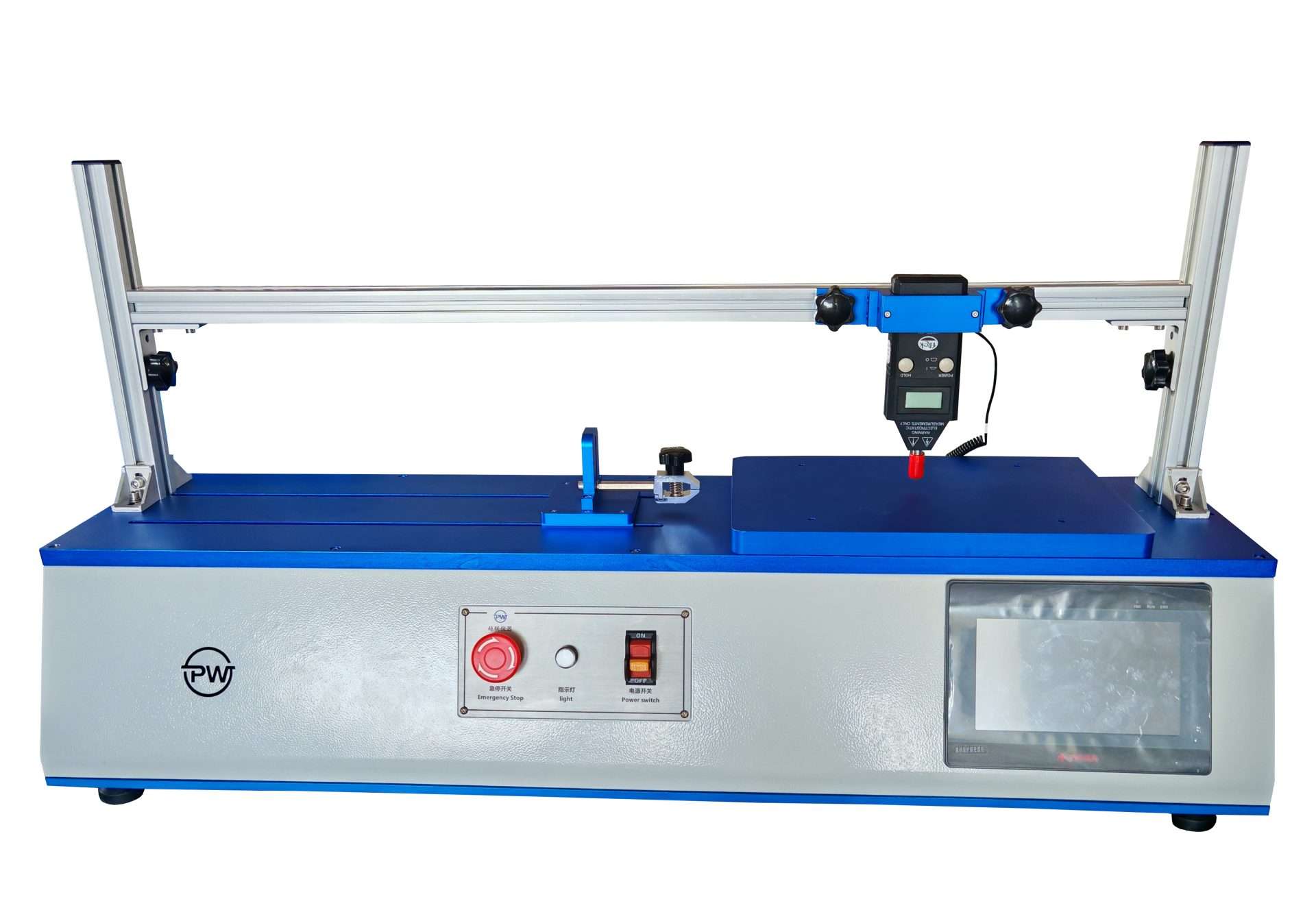

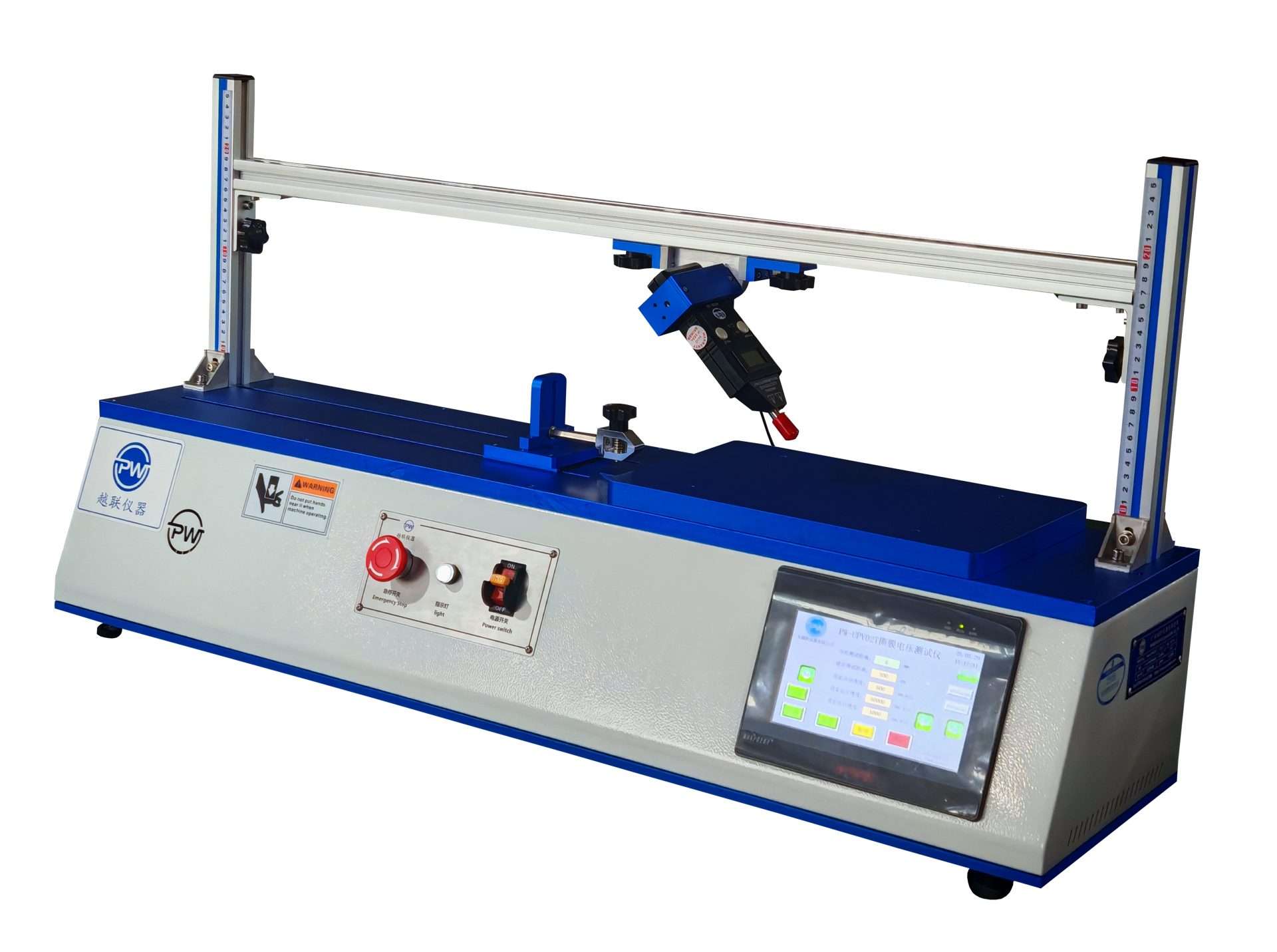

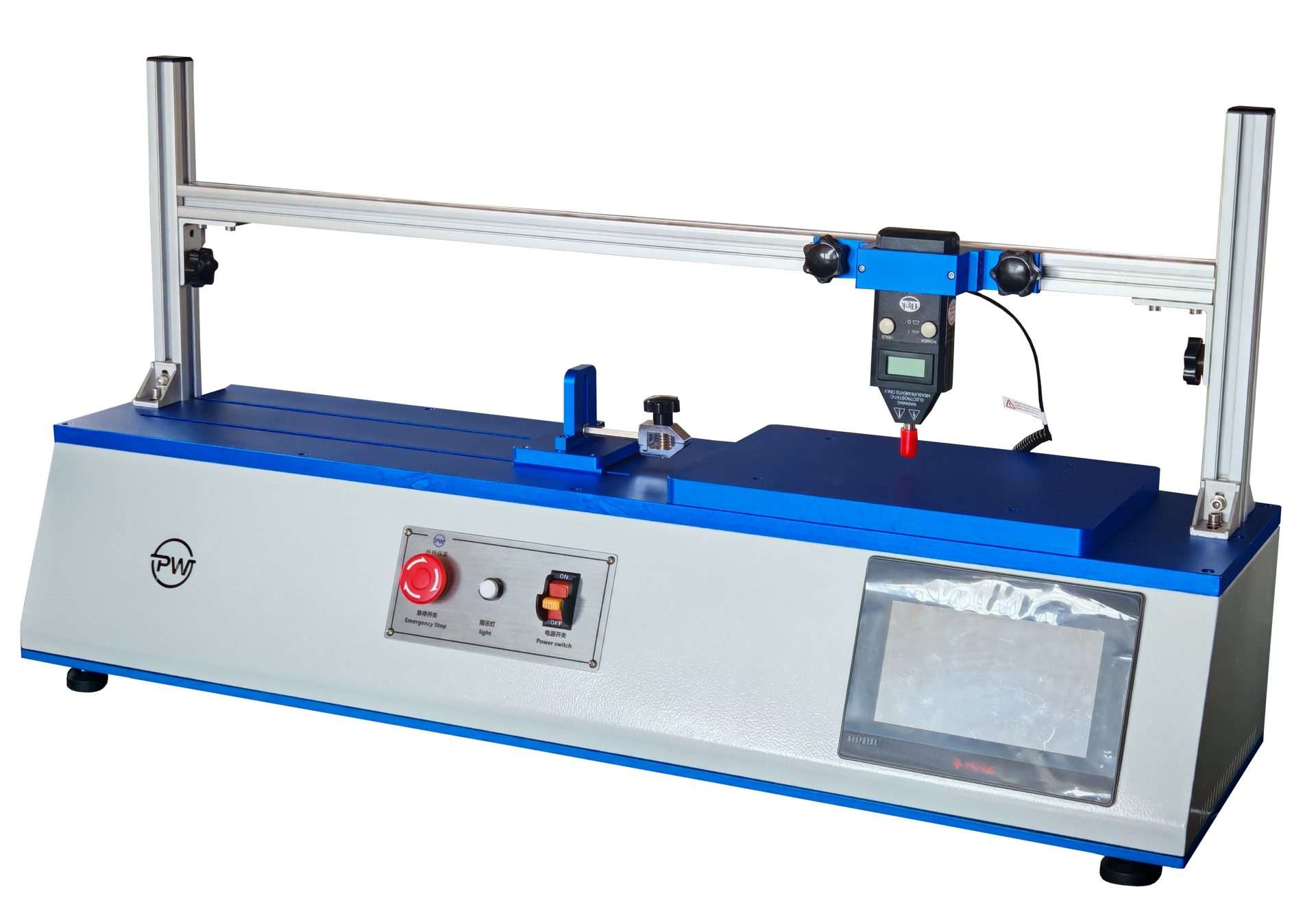

PW-UPV02T Peel-off Electrostatic Voltage Tester for Protective Film
Application:
The peel-off electrostatic voltage tester is mainly used to measure the voltage generated during the peeling of protective films.
Technical Specifications:

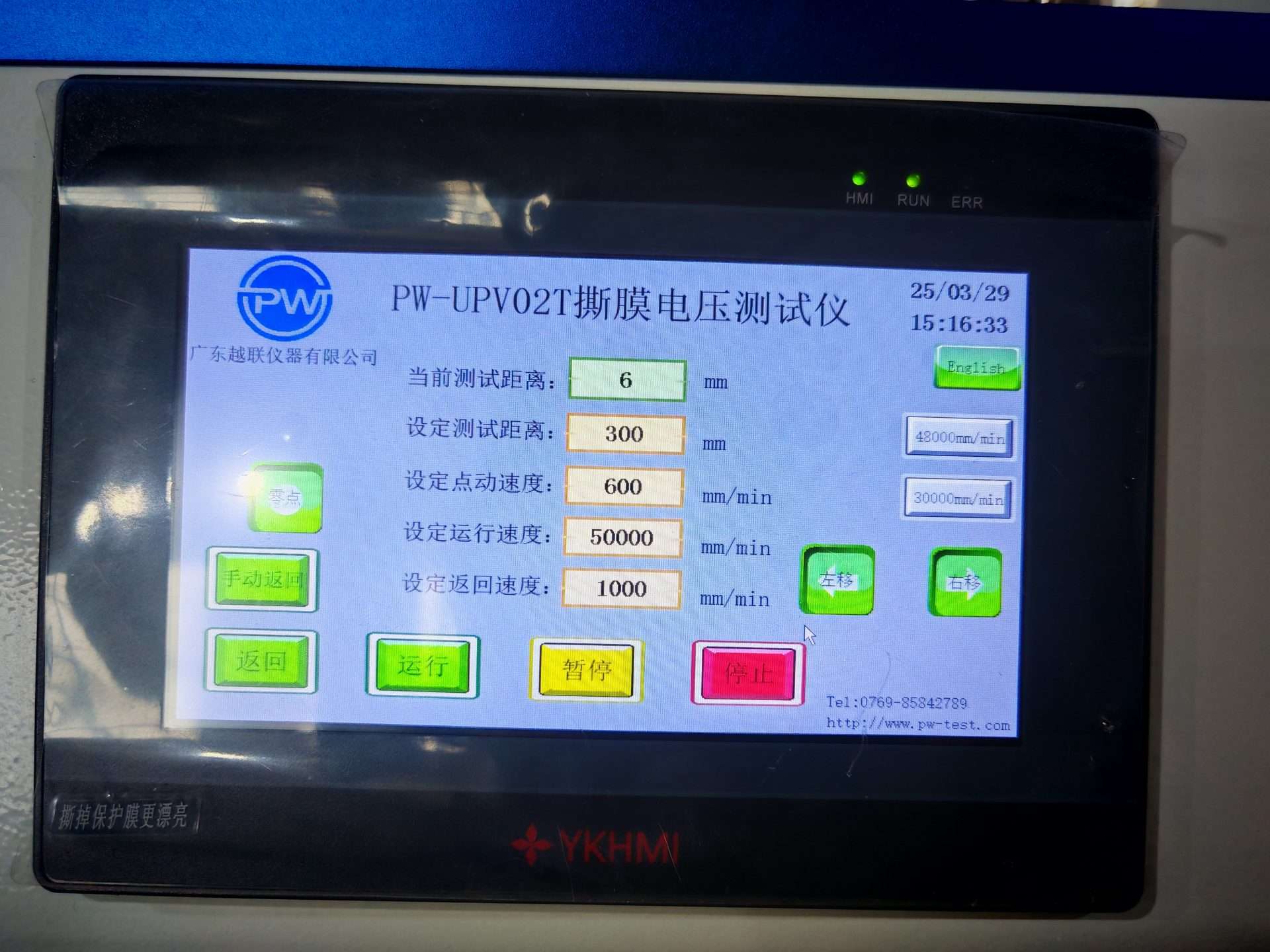

Control mode: Full touch-screen control with intelligent parameter setting and memory function; multiple speeds can be selected with one-touch operation (to be specified in advance).
Measuring speed: 0–60,000 mm/min, freely adjustable via the touch screen.
Effective stroke: Approximately 500 mm, adjustable.
Test width: 150 mm.
Specimen width: Adjustable up to ±50 mm.
Stop modes: Emergency stop button; stroke-position stop; left and right limit automatic stop; automatic return function.
Drive system: Servo motor drive.
Transmission: Ball screw.
Rated power: 200 W.
Machine dimensions: Approx. 900 mm (W) × 340 mm (D) × 510 mm (H).
Machine weight: Approx. 45 kg.
Power supply: AC 220 V, 50 Hz.
Standard accessories: One power cable and one user manual.
