Description

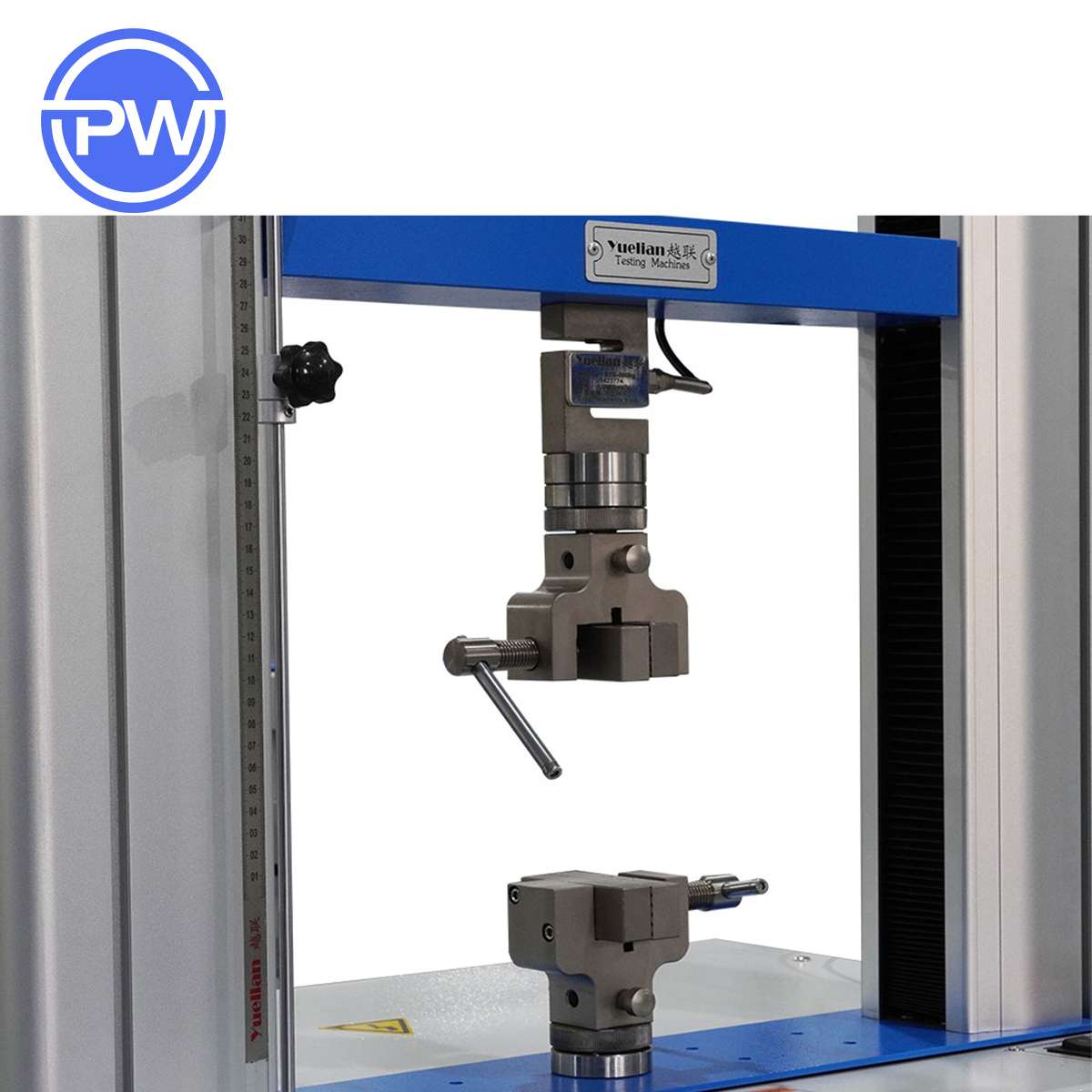

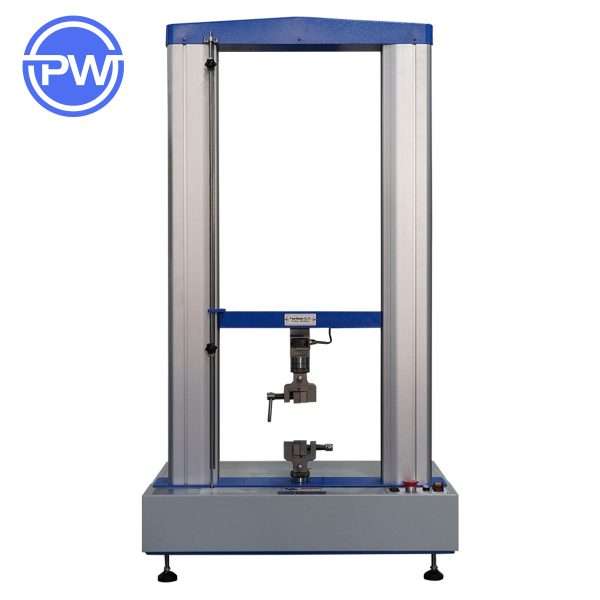

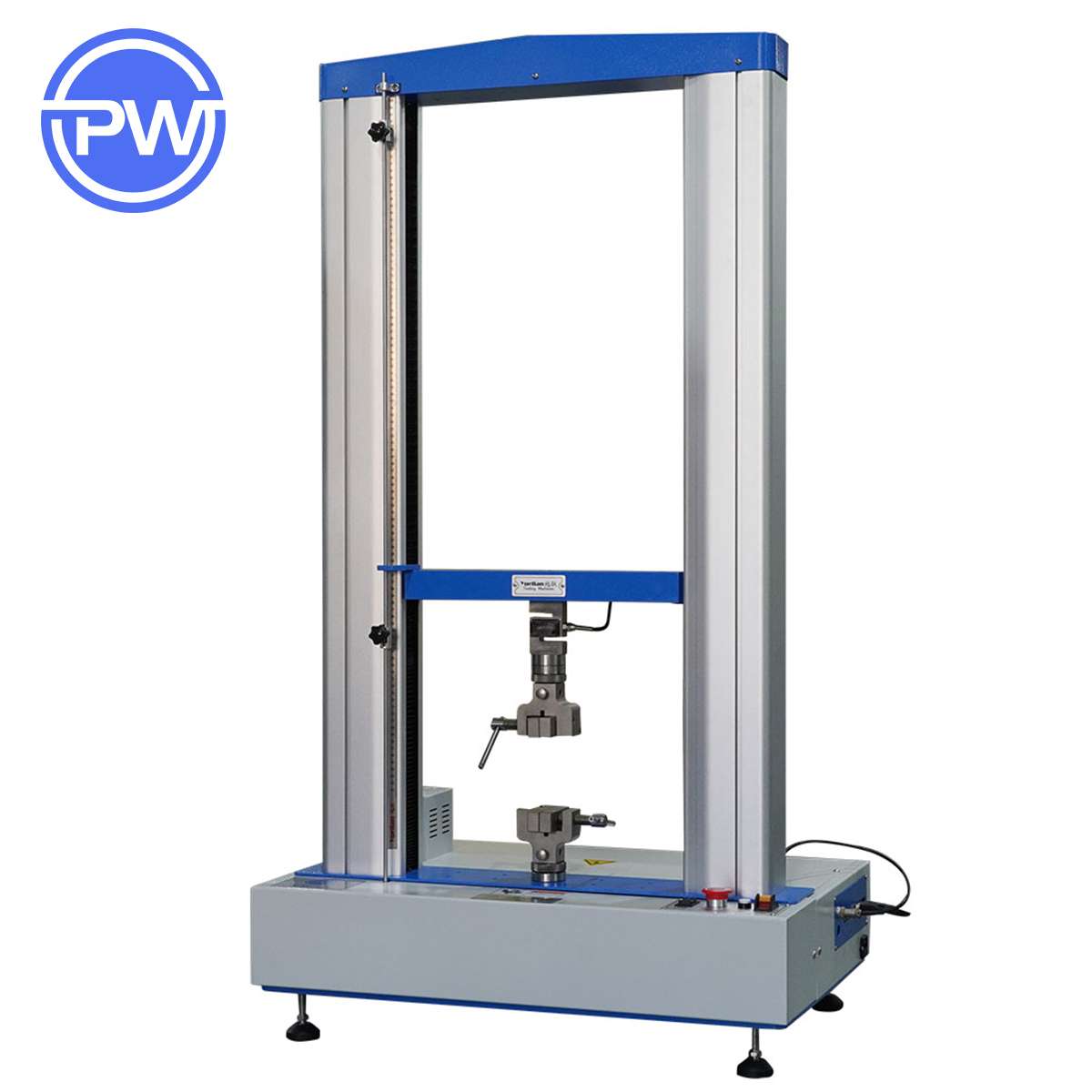

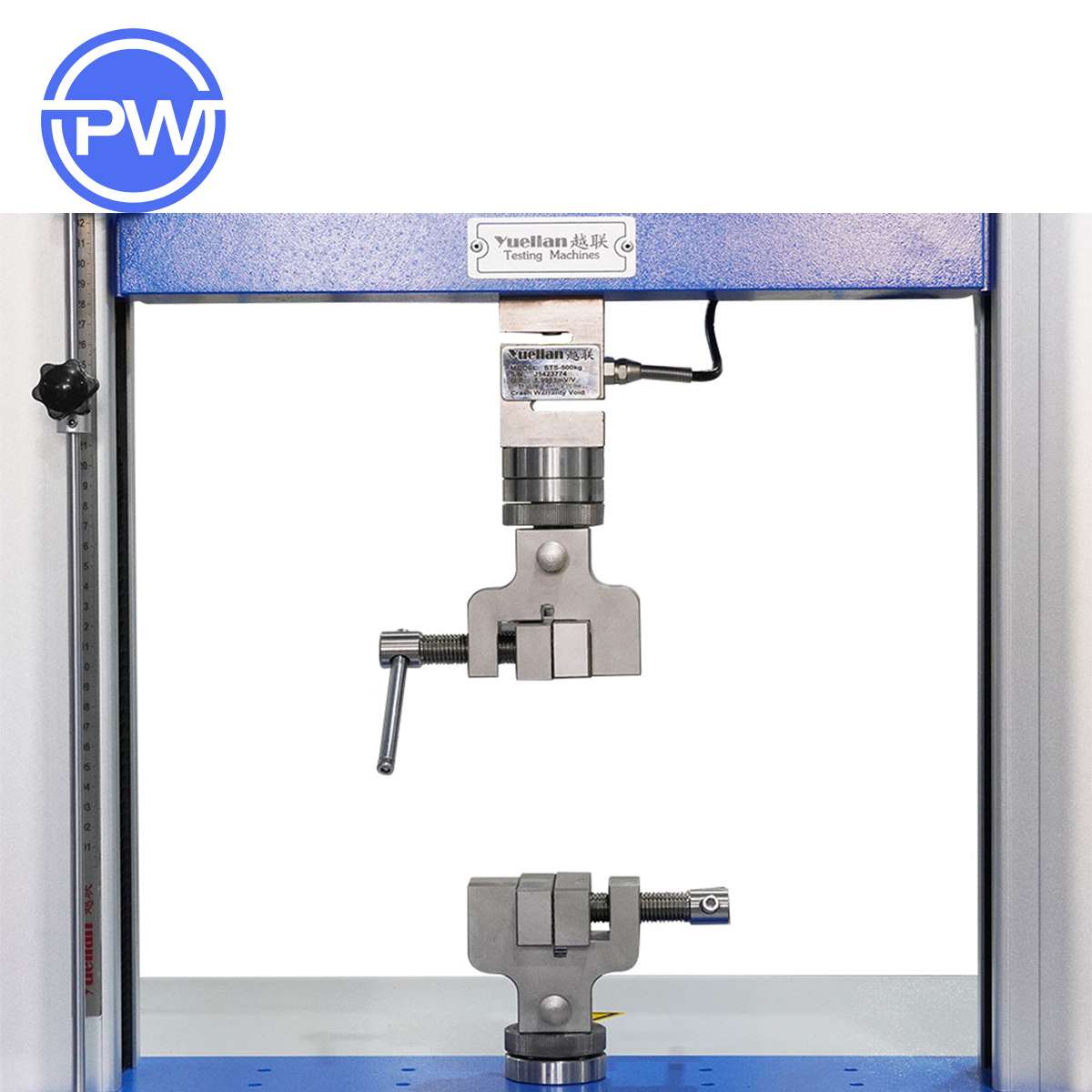

PW-UD20 Double-Column Servo Universal Material Tensile Test Machine Tensile Strength Testing Machine
Application:
This equipment is capable of conducting various tests on a wide range of materials including rubber, plastic, leather, metal, nylon thread, fabric, paper, and aviation, packaging, construction, petrochemical, electrical, and vehicle materials. It can perform tests such as tension, compression, bending, shear, adhesion, peeling, tearing, and more. This equipment is essential for quality control, incoming inspection, physical property testing, mechanics research, and material development.
Function:
Test & Control System is designed for PC Electronic Universal Testing Machines, PC Hydraulic Universal Testing Machines and PC Compression testers; Can conduct tensile, compression, bending, shearing, tearing and peeling test; The PC and interface board are used to collect, save, process and print the test results of the data; It can calculate parameters such as maximum force, yield force, average peel force, maximum deformation, yield point, elastic modulus, etc.;It can be used for curve processing, multi-sensor support, graphical interface, flexible data processing, MS-ACCESS database support, making the system more powerful.making more powerful function of system.
Specification:
| Capacity | 10N、20N、50N、100N、200N、500N、1KN、2KN、5KN(can select double capacities preparation) |
| Display | Computer display mode |
| Force Resolution | 1/500,000 |
| Force Accuracy | ≤±0.3% |
| Stroke resolution: | 1/500,000 |
| Control Mode | All computerized operation mode |
| Test Stroke | 600mm |
| Test Width | 420mm |
| Test Speed | 0.01~500mm/min, can set by computer, with up & down fast adjustment button of grips |
| Force Unit Switch | Kgf, N, Ibf, g, ton, Mpa |

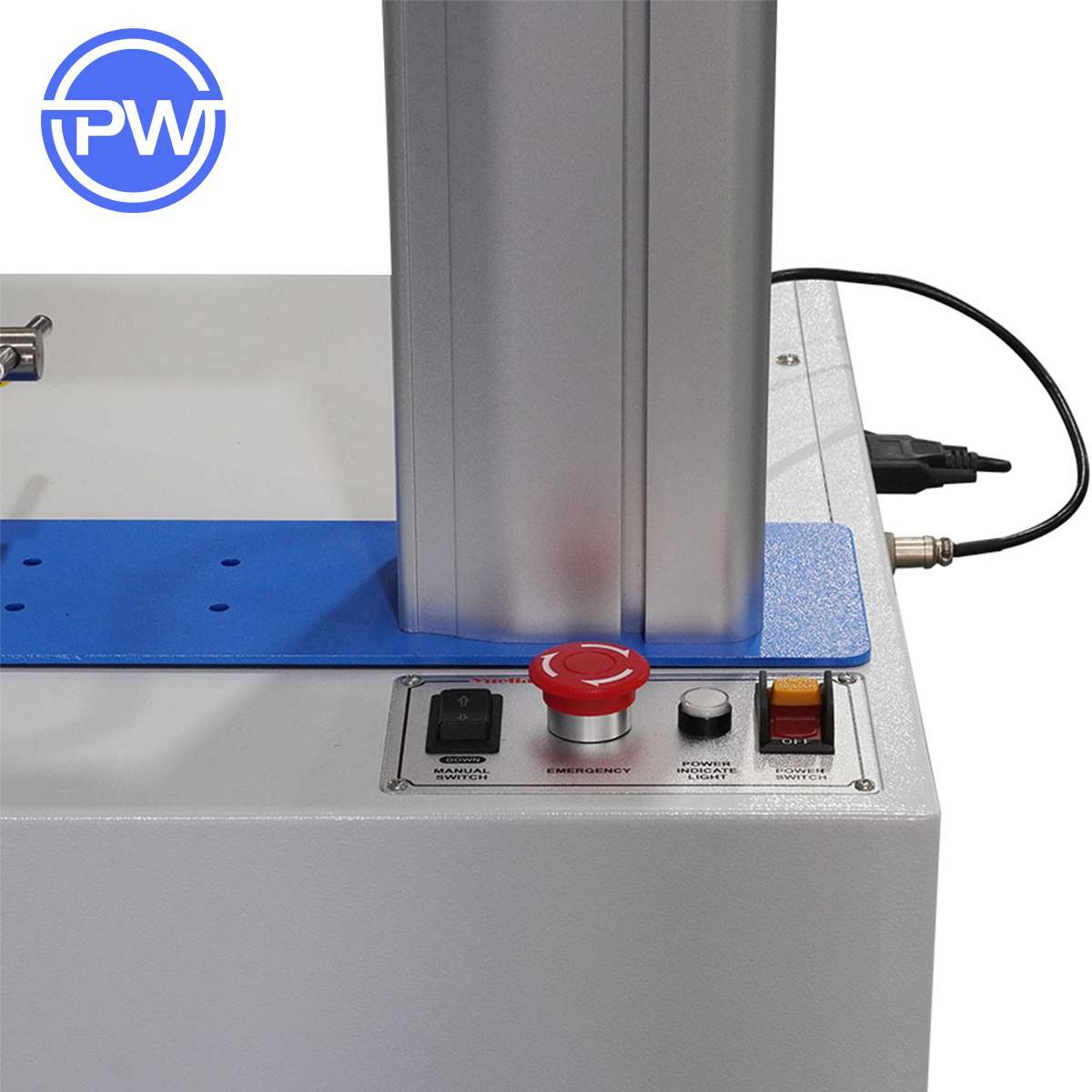

| Stop Mode | Overload stop, emergency stop button, specimen damage automatic stop, upper & lower limit set automatic stop, automatic reset function |
| Machine Dimension | 80×45×136cm(W×D×H) |
| Machine Drive | Servo motor drive, synchronous wheel and precision ball screw drive |
| Power | 400W |
| Machine Weight | Approx 220kg |
| Power Supply | 220V 50/60HZ 10A |
| Standard Device | 1 set of grips, computer software, USB computer connection wire |
| Optional | Personal computer |
