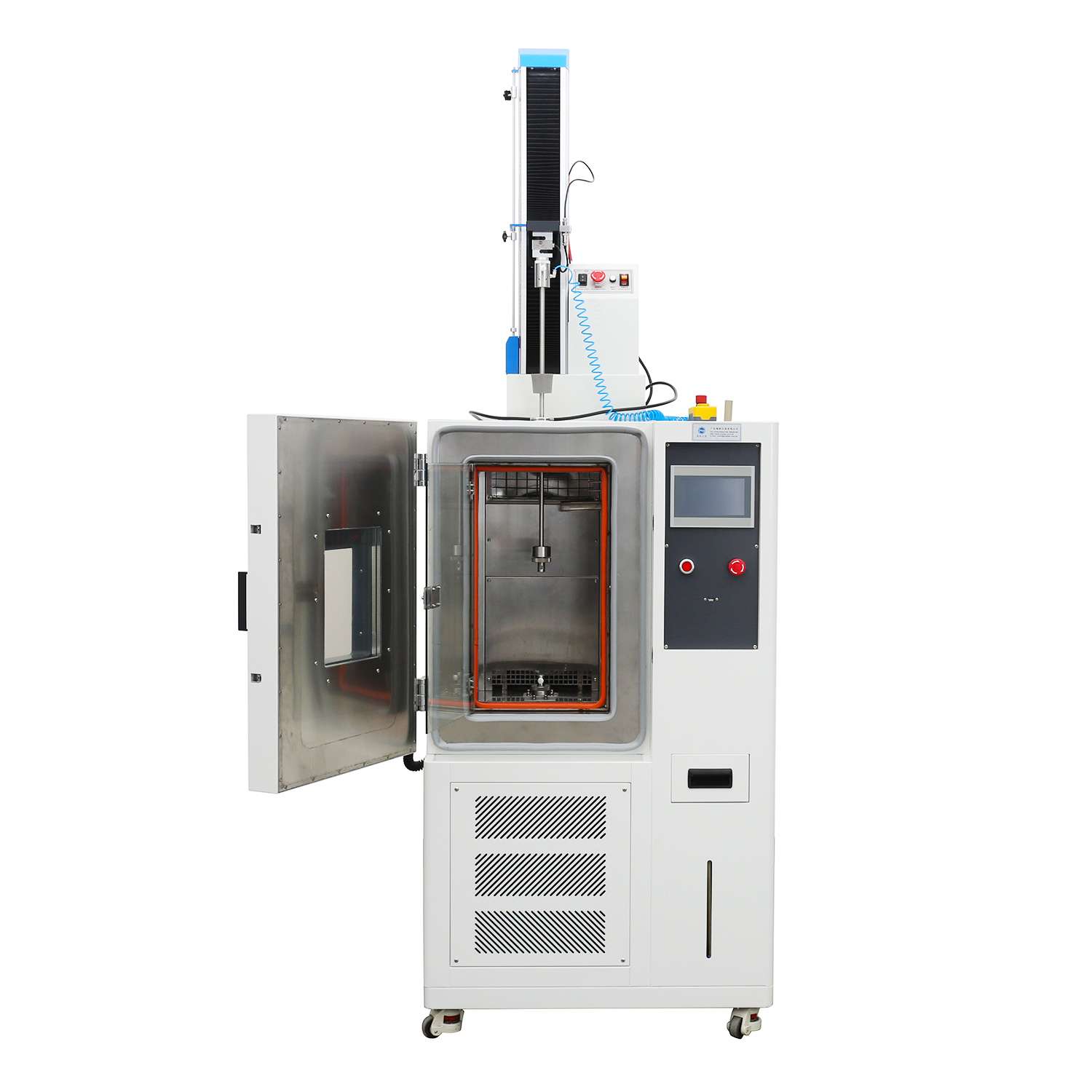

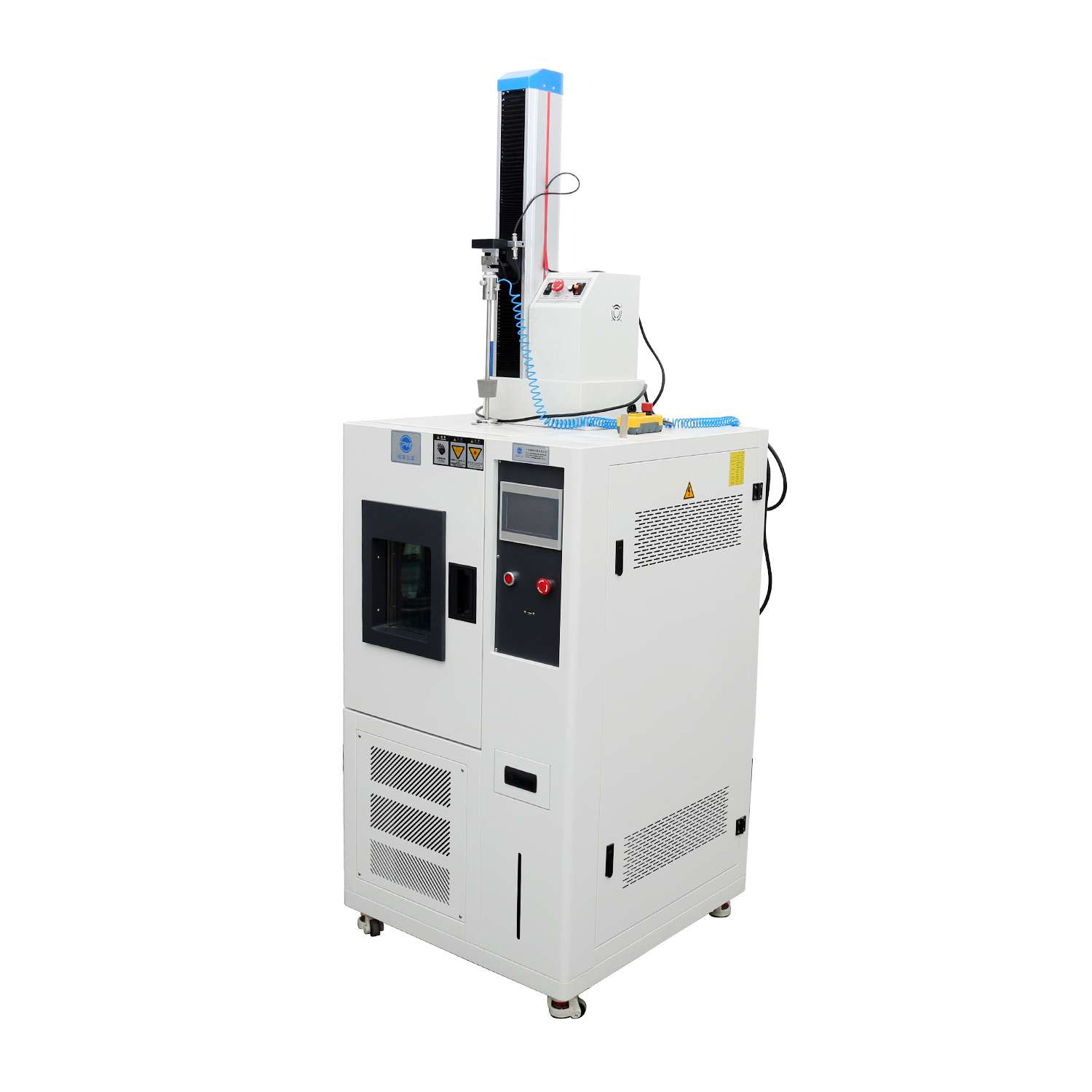

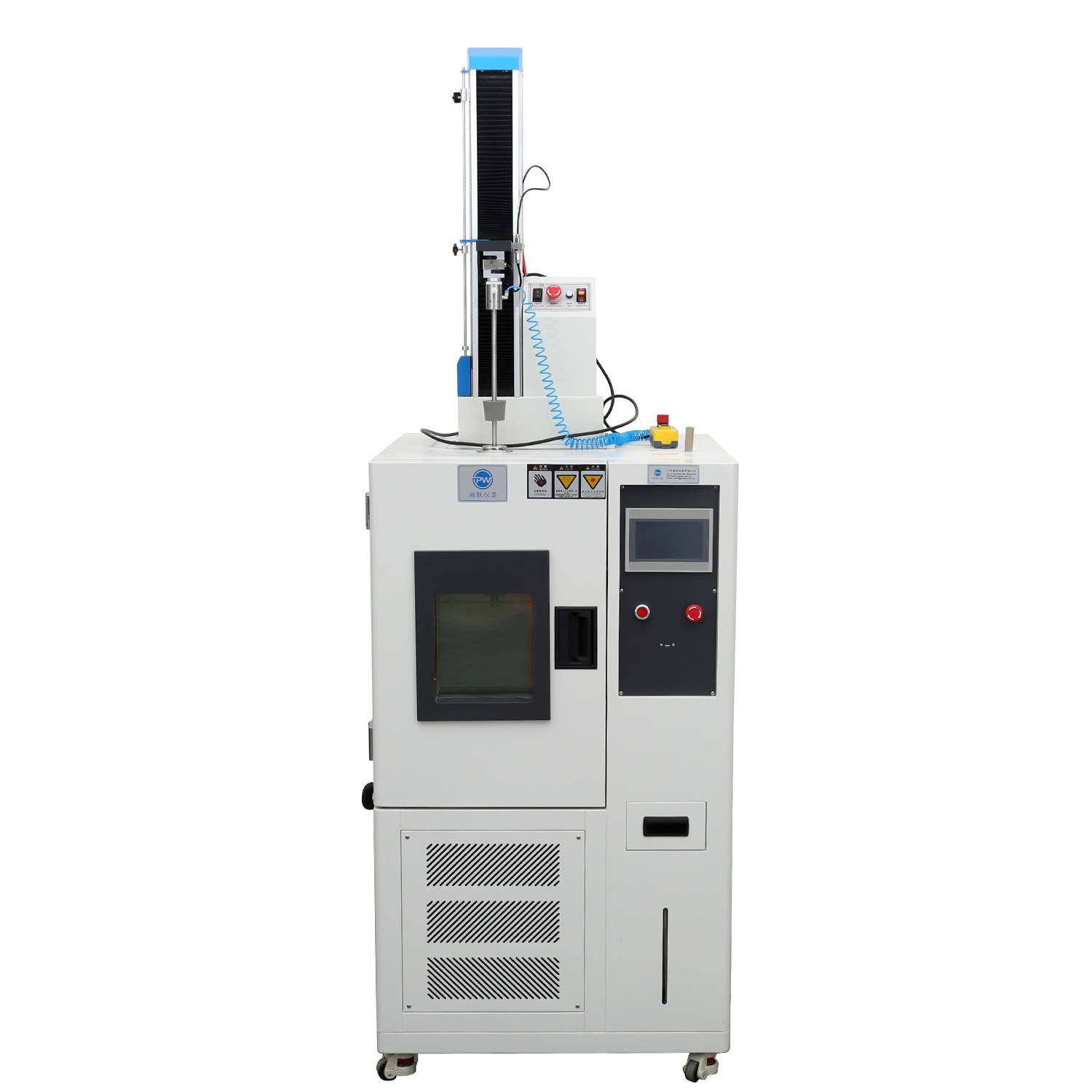

PW-UCS80-40 High Temperature Tensile Strength Chamber

I. Software part

1. Support Chinese and English languages: applications and data (Access data storage) are automatically translated at any time.
2. Supported unit system:
Metric system (N, kN, mm, MPa, etc.)
British system (Lb, kP, Inch, kpsi)
Old system (g, kg, Ton, cm, kg/cm2, etc.)
3. Supported test standards: ISO, GB, ASTM, DIN, JIS, etc., which can be added arbitrarily; centralized management of test methods is convenient for use;
4. Report format: based on crystal report and VS.Net report, it can be exported to Word, EXCEL, PDF documents, with both pictures and texts, and user LOGO pictures can be added
5. Curve function: The curve can be moved and zoomed arbitrarily, the point marking of important parameters, the parallel line marking of the E value, and it can be printed separately (high resolution) or exported as a picture file (BMP or JEG format); 169 theoretical curves.
6. Hierarchical management of users ensures the safety management and ease of use of software and data;
7. Graphical operation interface; the interface can be modified to distinguish different users; the display area of ​​the interface can be set to display or hide.
8. Re-development capability support: Parameter calculation adopts VBS script with open source code, independent report file is written with crystal report, and system parameters are stored in the database to facilitate the re-development of advanced users.
9. VBS scripting of the control process; a variety of control parameters and input and output set by the user to expand the use of the test machine;
10. The main program integrates the initial setting of the system, standard creation, sample shape, field management, which is convenient for debugging

II. Hardware part

1. Three independent analog input channels, 24-bit AD converter, programmable gain amplifier;
2. The interface with computer adopts photoelectric isolation USB2.0, which reduces interference and improves reliability
3. Force measuring unit
Adopting the latest high-speed, high-resolution, high-precision and continuous acquisition AD converter; reaching ±500,000 subdivision codes, which is better than subdivision
The six-speed zoom in the gear mode has reached the international advanced level.
Force measurement range: 0.5 – 100% FS
Measurement accuracy: 0.5 level
Resolution: 1/1,000,000
4. Measuring small deformation (electronic extensometer)
The unit adopts the latest high-speed, high-resolution, high-precision, continuous acquisition AD converter without bins; up to ±250,000 subdivision code, excellent
The six-level zoom in the binning mode has reached the international advanced level.
Deformation measurement range: 1 – 100% FS
Measurement accuracy: 0.5 level
Resolution: 1/1,000,000
Software protection: over-travel, over-capacity protection;
