Description

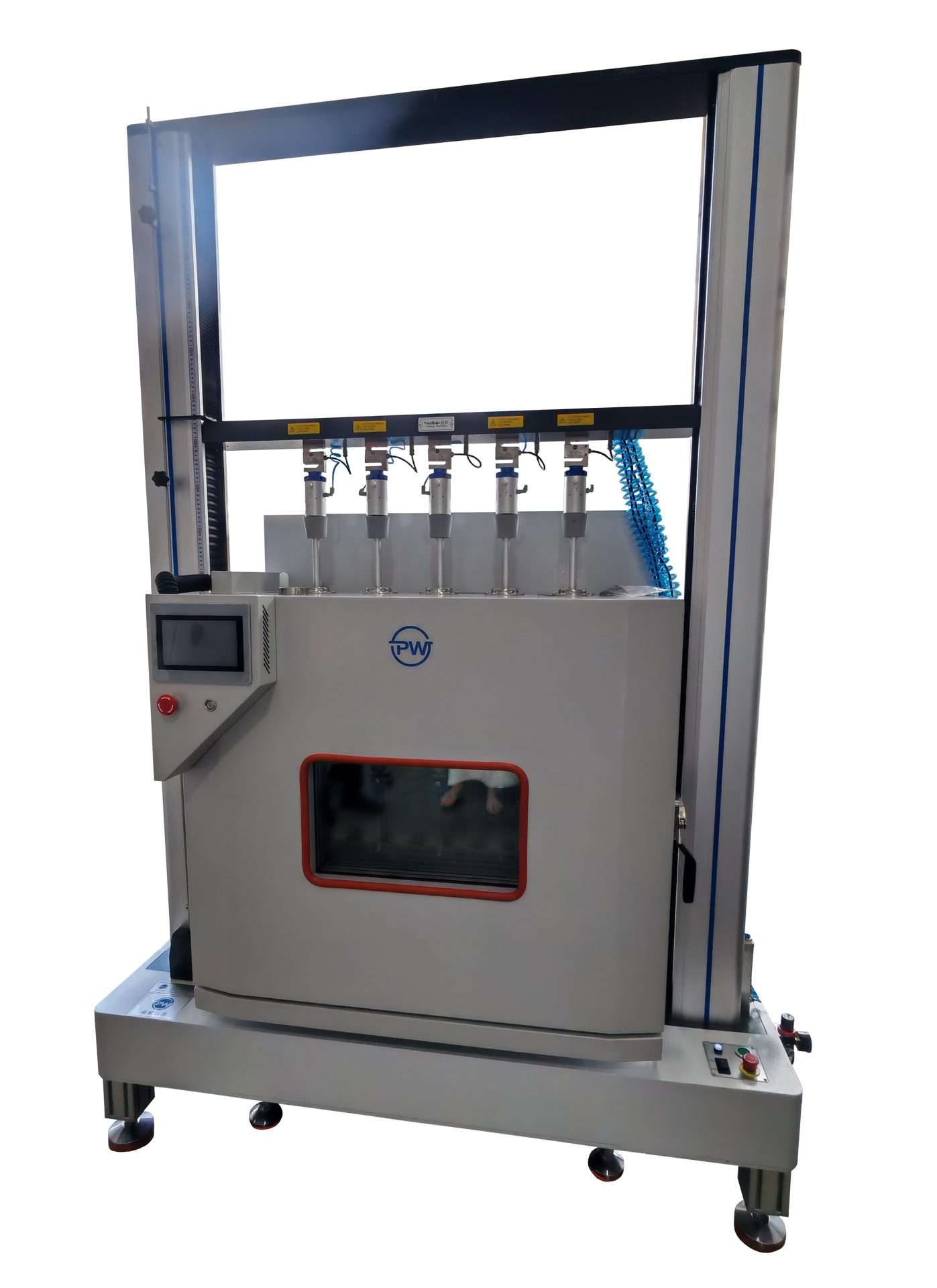

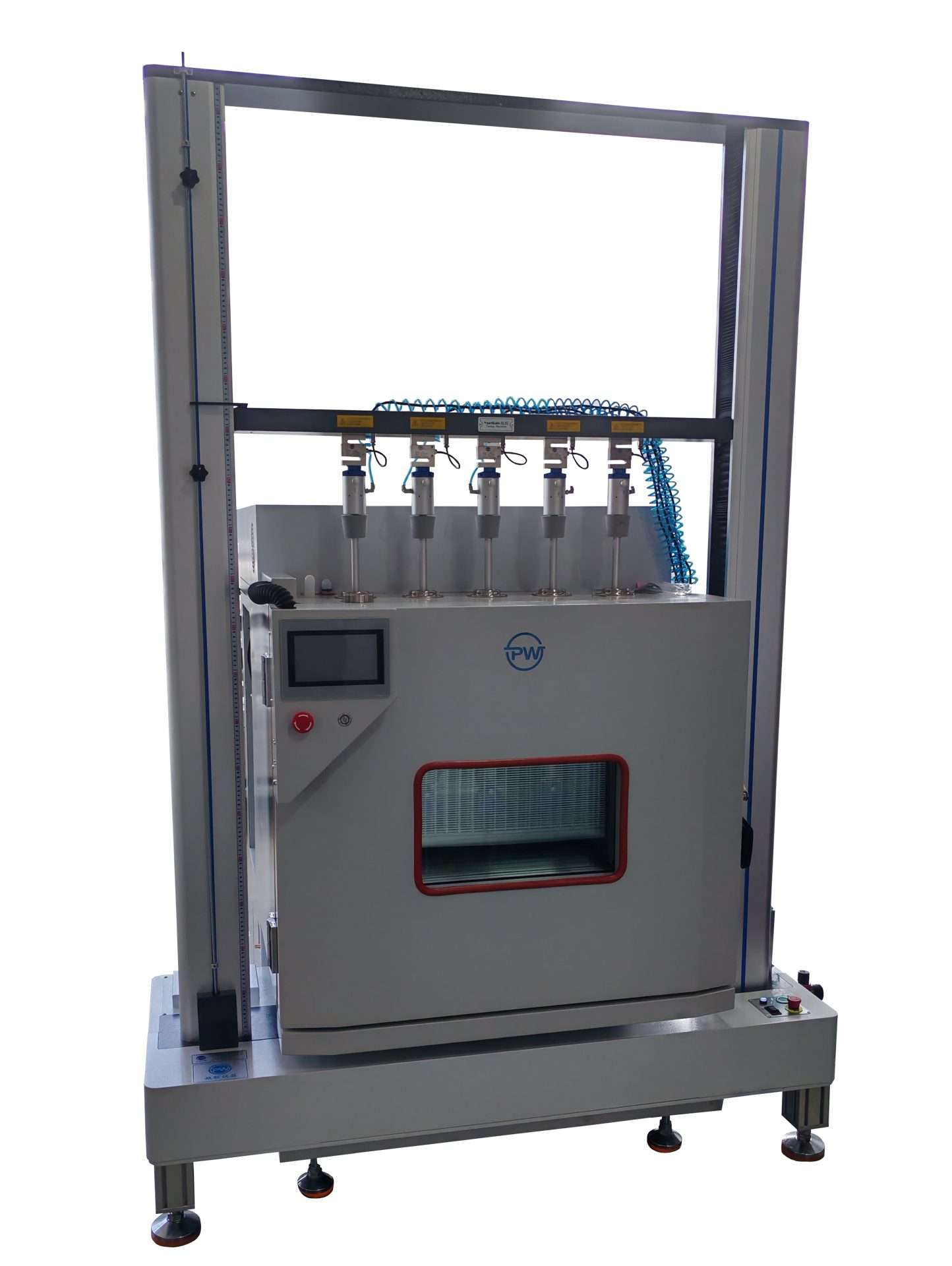

PW-UCD80-40 Stress Relaxation Tester
It finds wide application in rubber, plastic, polymer materials, adhesives, and adhesive tape industries. It tests tensile strength, elongation, Poisson’s ratio, flat compression strength, compressibility, and fatigue performance of samples under normal, low, and high temperatures. Users can switch between temperature modes with ease, achieving high efficiency and multi‑functionality in one machine.
Features a dual-column structure with three working stations operating in sync.
Technical Specifications
- Capacity: 5 kN, three working stations
- Temperature Range: -40℃ ~ 150℃
- Display: Computer display
- Force Resolution: 1/1,000,000
- Force Accuracy: 0.03%
- Accuracy Class: Class 0.5
- Stroke Resolution: 1/1,000,000
- Displacement Accuracy: ±0.01 mm
- Software Functions: Constant force, constant displacement, constant time; supports long-term repeated compression tests and stress relaxation tests
- Control Mode: Full computer operation
- Temperature Control: PID automatic calculation with stable error
- Display Accuracy: 0.1℃
- Temperature Accuracy: ±1℃
- Circulation System: Forced air circulation by fan
- Heating System: SUS304 stainless steel convection heater
- Protection Device: Leakage and overload protector
- Cabinet Material: SUS#304 stainless steel
- Cooling System: Hitachi compressor from Japan, with cold balance control technology; compact refrigeration system, low failure rate and easy maintenance
- Temperature Control: 7-inch touchscreen display, multi-program editing
- Humidity Range: 20% ~ 98% RH
- Test Stroke: Approx. 10 cm; accommodates three samples of different thicknesses simultaneously
- Test Chamber Dimensions: Approx. 60 × 35 × 62 cm (W × D × H); chamber can be opened backward for room-temperature testing with larger space
- Test Speed: 0.1 ~ 100 mm/min, computer-controlled; equipped with fixture quick-adjust buttons and control box
- Upper/Lower Platen Diameter: 100 mm; parallelism of upper and lower fixtures: ±0.01 mm
- Force Unit Conversion: kgf, N, lbf, g, ton, MPa
- Stop Modes: Overload stop, emergency stop, automatic stop upon specimen break, automatic stop at upper/lower limits, automatic reset
- Machine Dimensions: Approx. 110 × 230 × 230 cm (W × D × H)
- Drive System: Servo motor, synchronous pulley and precision ball screw drive
- Total Power: Approx. 5 kW
- Net Weight: Approx. 350 kg
- Power Supply: 220V/380V, 50/60 Hz, 30A
- Standard Accessories: 1 set of compression fixtures, 1 set of thickness accessories, professional software, computer connection cable, computer
