Description

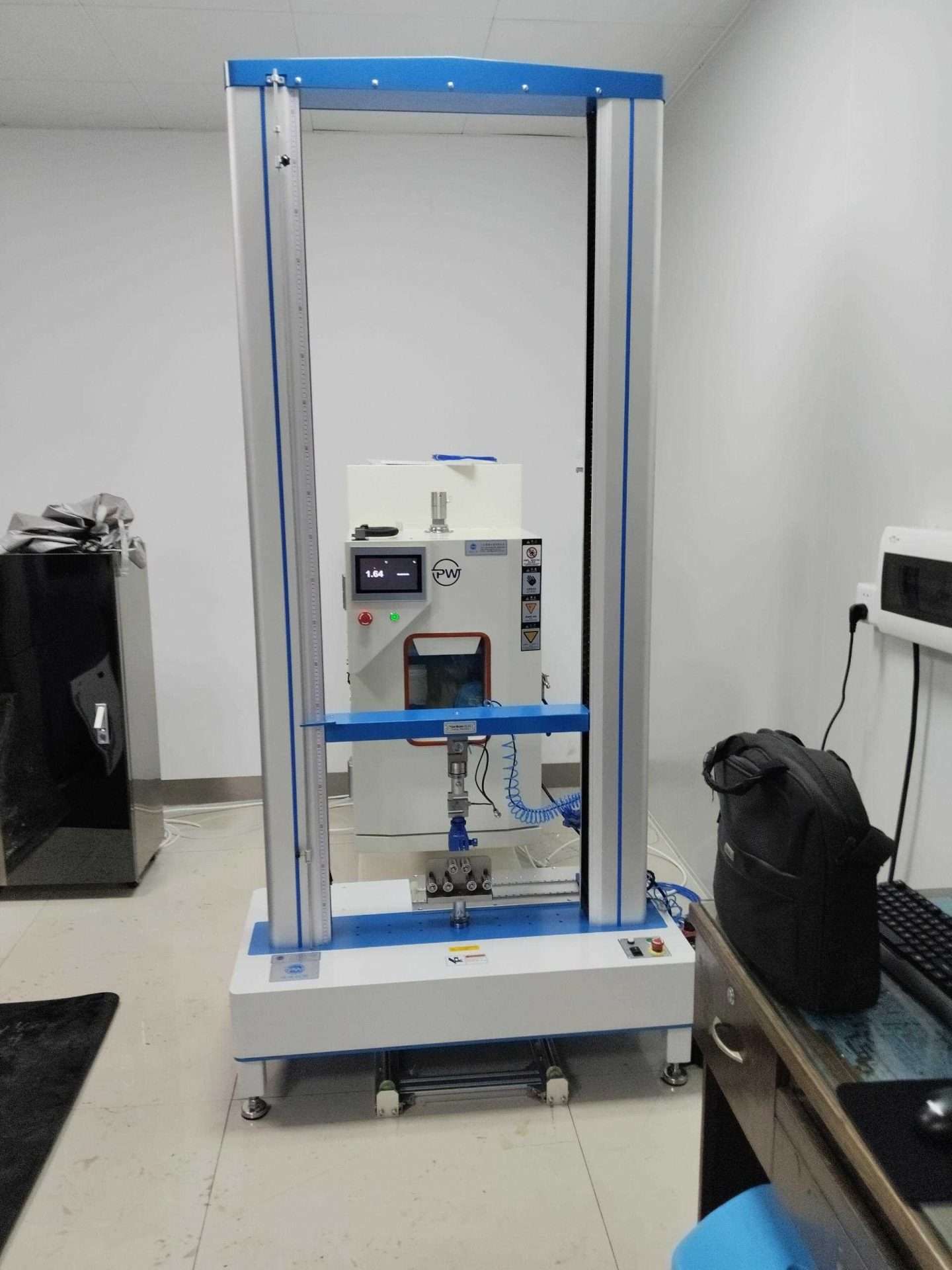

PW-UCD80-40 High & Low Temperature Tensile Machine

High and Low Temperature Tensile Testing Machine is a specialized material testing equipment that integrates a precision tensile testing system with a high-low temperature environmental chamber. It is designed to evaluate the mechanical properties of various materials, including metals, rubber, plastics, composites, wires and cables, under extreme temperature conditions ranging from -70°C to +350°C. This machine can perform tensile, compression, bending, peeling, shear, and tear tests, providing accurate data on tensile strength, yield strength, elongation, and modulus of elasticity for R&D, quality control, and material selection in aerospace, automotive, electronics, and manufacturing industries.



Applications:

Widely used in the rubber, plastic, polymer materials, adhesives, and adhesive tape industries, it is suitable for testing the tensile strength, elongation, Poisson’s ratio, planar shrinkage strength, compression ratio, etc., of materials under normal temperature, low temperature, and high temperature conditions. It can be conveniently switched for use at room temperature, offering quick and easy operation and versatility in a single machine.





Technical Parameters:

• Capacity: Max20KN (other capacities are optional);
• Temperature range: -40℃～150℃
• Display: computer display mode
• Force resolution: 1/1,000,000
• Force Accuracy: 0.03%
• Accuracy grade: 0.5 grade
• Stroke Resolution: 1/1,000,000
• Control method: Full computer operation
• Temperature control: PID automatic calculation, stable and error-free
• Display accuracy: 0.1℃
• Temperature Accuracy: ±1°C
• Circulation system: Fan forced circulation system
• Heating system: SUS304 stainless steel heat sink type heater
• Protection device: leakage and overload protector
• Case Material: SUS#304 stainless steel
• Refrigeration: France Taikang compressor refrigeration, the use of electronic expansion valve control technology, refrigeration system is simple, low failure rate, easy maintenance
• Temperature control: 7-inch touch screen display, multi-programme editing;
• Test stroke: 60 cm;
• Test chamber space: approximately 35×35×80 cm (W×D×H), the test chamber can be pushed back for room temperature use, providing more space.
• Test speed: 0.01 to 500mm/min, computer-controlled, with fast adjustment buttons for both upper and lower grips.
• Force unit conversion: kgf, N, Ibf, g, ton, Mpa
• Stop mode: overload stop, emergency stop button, specimen destruction automatic stop, upper and lower limits set automatic stop, automatic reset function
• Machine size: about 110×230×280cm(W×D×H)
• Machine power: servo motor drive, synchronous wheel and precision ball screw drive
• Total power: approx. 5KW
• Machine weight: about 350kg
• Power: 220V/380V 50/60HZ 30A
• Standard Configuration: 1 set of tensile fixture, software, computer connection cable.
• Option: Personal computer
