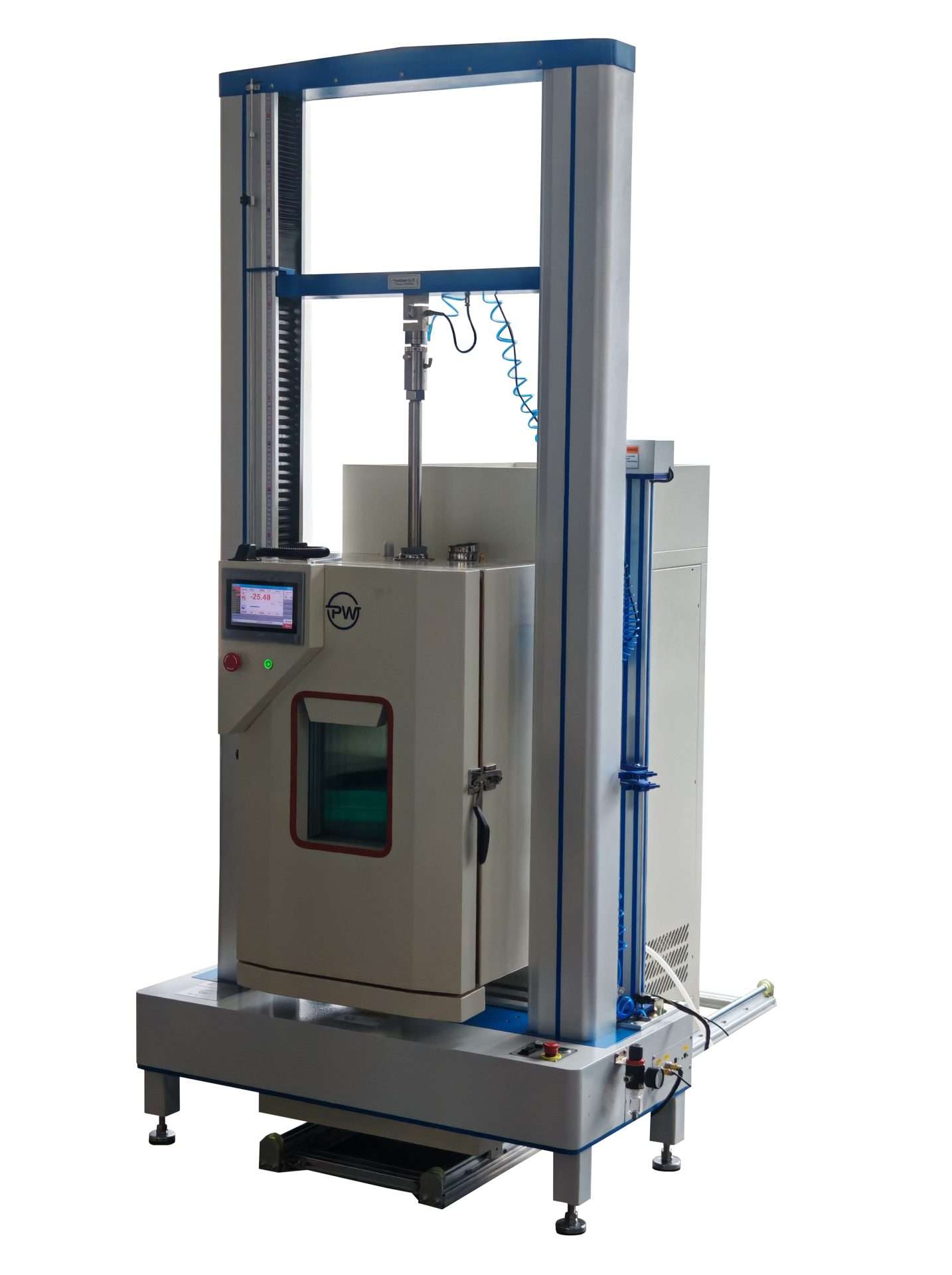

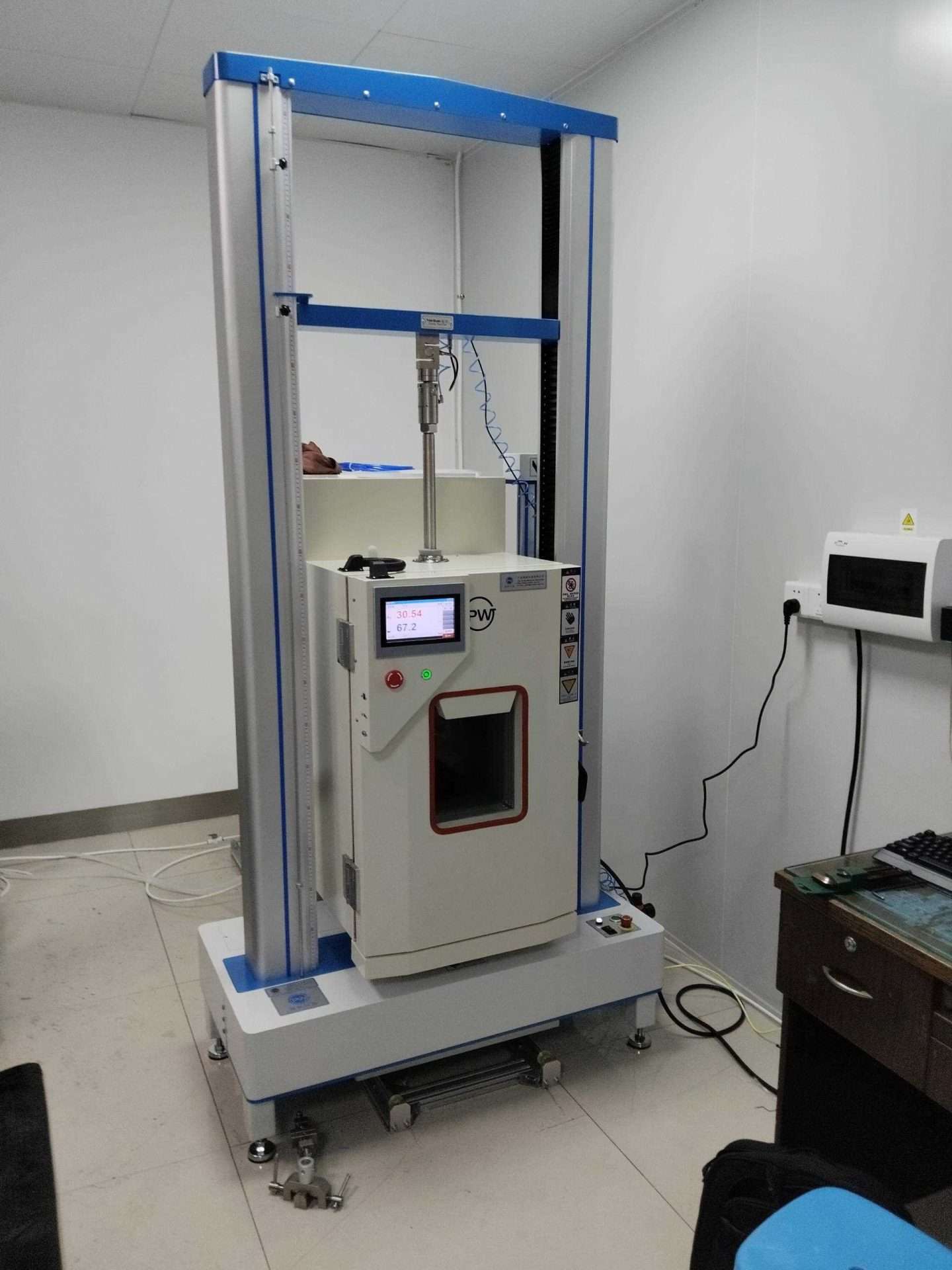

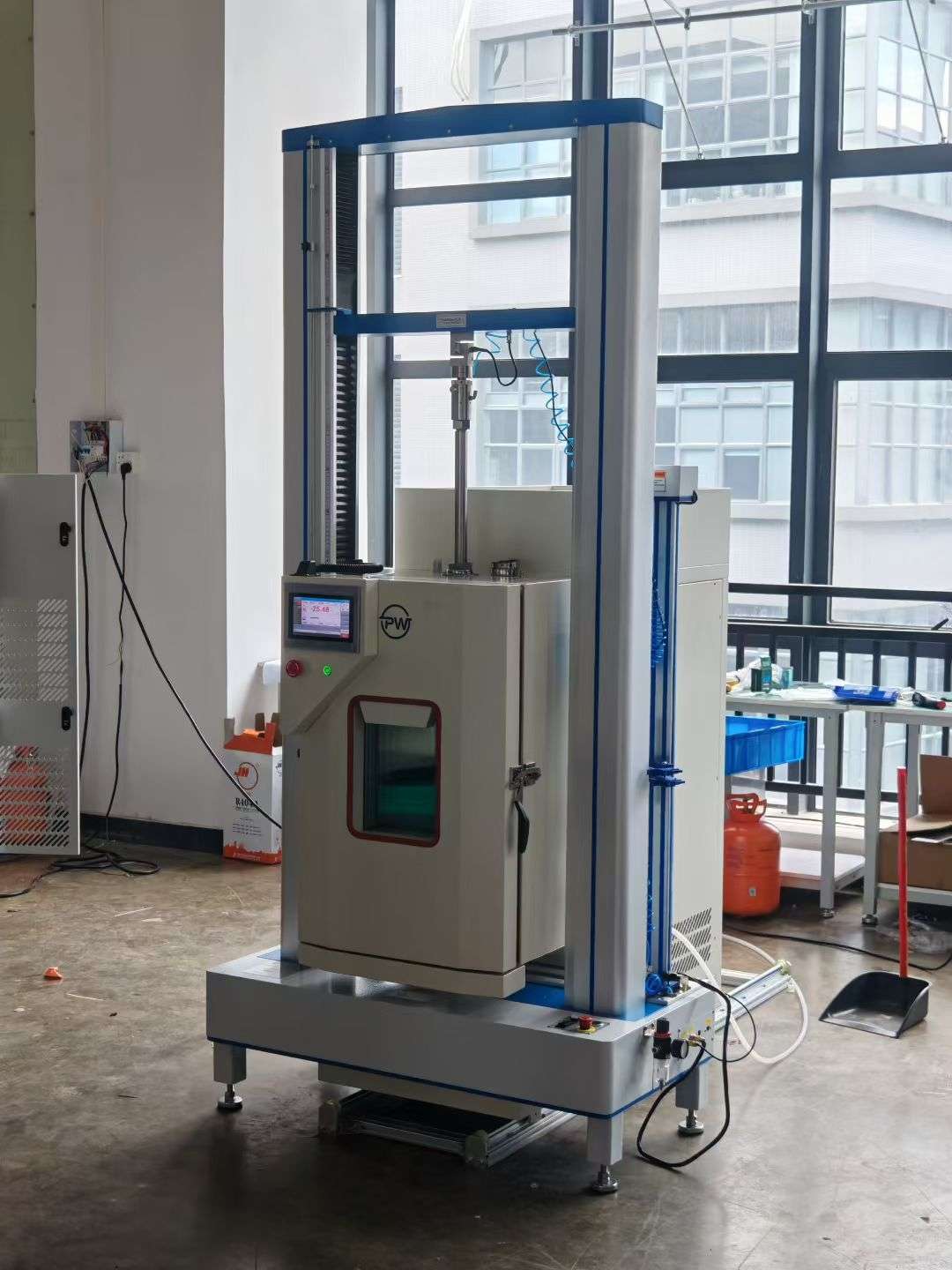

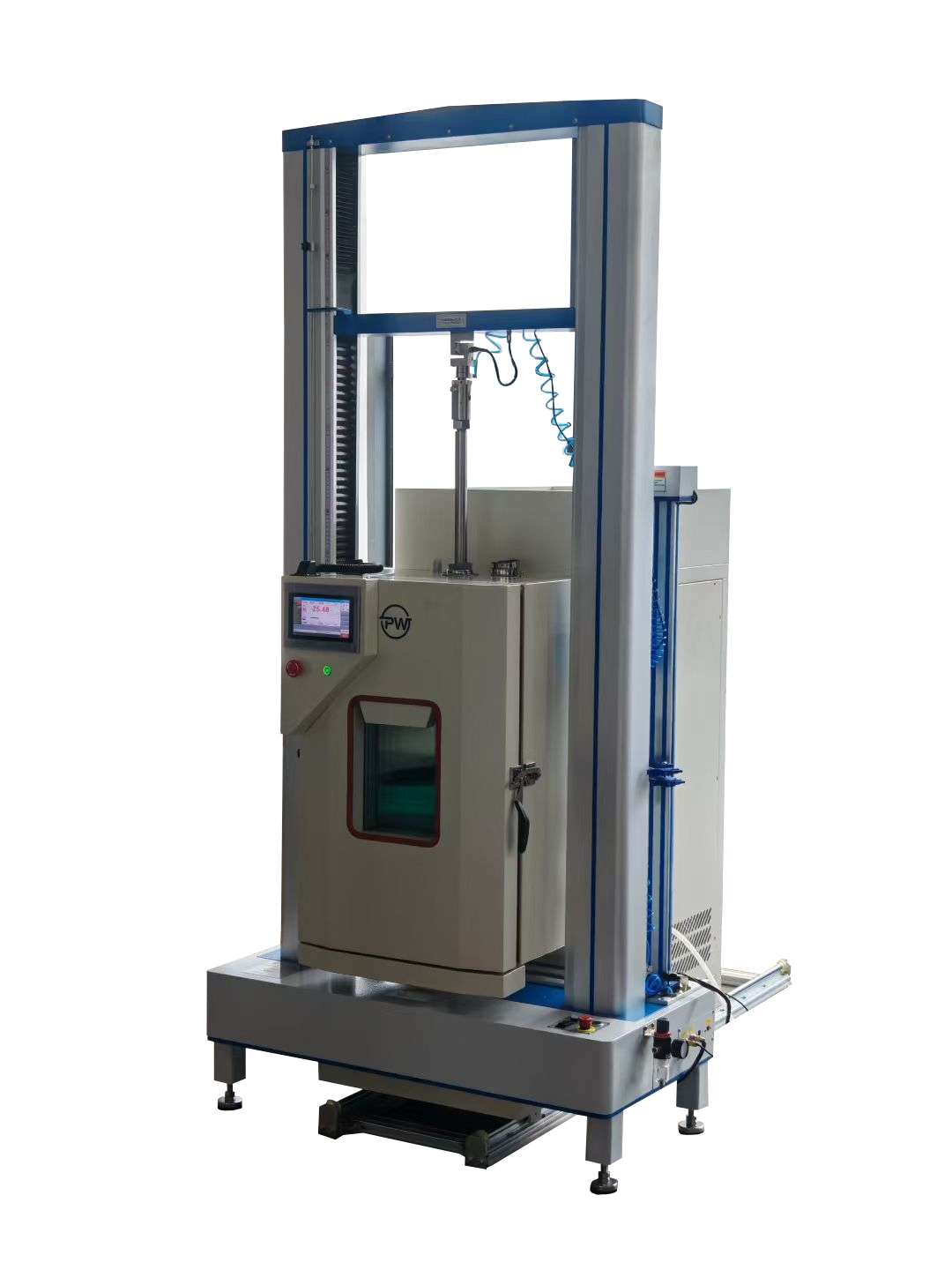

PW-UCD128A-40A High & Low Temperature Tensile Tester
Widely used in industries such as rubber and plastics, polymer materials, adhesives, and adhesive tapes. It is suitable for testing the tensile strength, elongation, Poisson’s ratio, planar compression strength, and compression ratio of materials under various conditions, including ambient temperature, low temperature, and high temperature. The ambient temperature mode can be switched on conveniently and quickly, allowing for a single machine with multiple uses.
The constant temperature and humidity tensile testing machine is a specially modified model for environmental testing. Equipped with a constant temperature and humidity chamber, it can test the physical properties of materials, such as tensile force, compressive force, tear strength, shear force, peel strength, unwind force, and tack (ring method), under different humidity and temperature environments. For ambient temperature testing, the constant temperature and humidity chamber can be moved aside to increase usable space and convenience.
I. Machine Specifications:
| Specifications： | |
| Item | PW-UCD128A-40A |
| Capacity (MAX) | 10KN(optional 10N~10KN force sensor) |
| Control Method | Full computer control mode, powerful software |
| Unit of Force | N、kN、gf、kgf、lbf、kP、tf(SI)、tf(long)… |
| Unit of Length | mm、cm、Inch、m、km、um… |
| Force Resolution | 1/1,000,000 |
| Accuracy | ±0.1% |
| Stroke Resolution | 1/1,000,000 |
| Sensor Accuracy | 3/10,000 |
| Test Space | 400*400*800mm(W×D×H) |
| Speed Range | 0.01~500mm/min; (Customizable) |
| Temperature Range | -40~150℃ |
| Humidity Range | 20%~98%（Optional） |
| Shutdown Mode | Overload stop, emergency stop key, automatic stop for test piece destruction, automatic stop for upper and lower limit setting; |
| Machine Power | Servo motor drive |
| Machine Dimensions | About 1300×2300×2800mm (W×D×H) |
| Machine Net Weight | About 450KG |
| Power | 400W |
| Power Supply | 220V 50~60HZ |
| Machine Accessories | 1 network port communication cable, 1 software |
| Optional Accessories | Computers, peel-off steel sheets, rolling wheels, other peel-off jigs |
II. Software Features
The measurement and control system is specifically designed for microcomputer electronic universal testing machines, microcomputer hydraulic universal testing machines, and microcomputer presses. It can perform tensile, compression, bending, shear, tear, and peel tests. A PC and interface board are used for data acquisition, storage, processing, and printing test results. It can calculate parameters such as maximum force, yield force, average peel force, maximum deformation, yield point, and elastic modulus. It supports curve processing, multiple sensors, a graphical interface, flexible data processing, and MS-ACCESS database support, making the system more powerful.
