Description

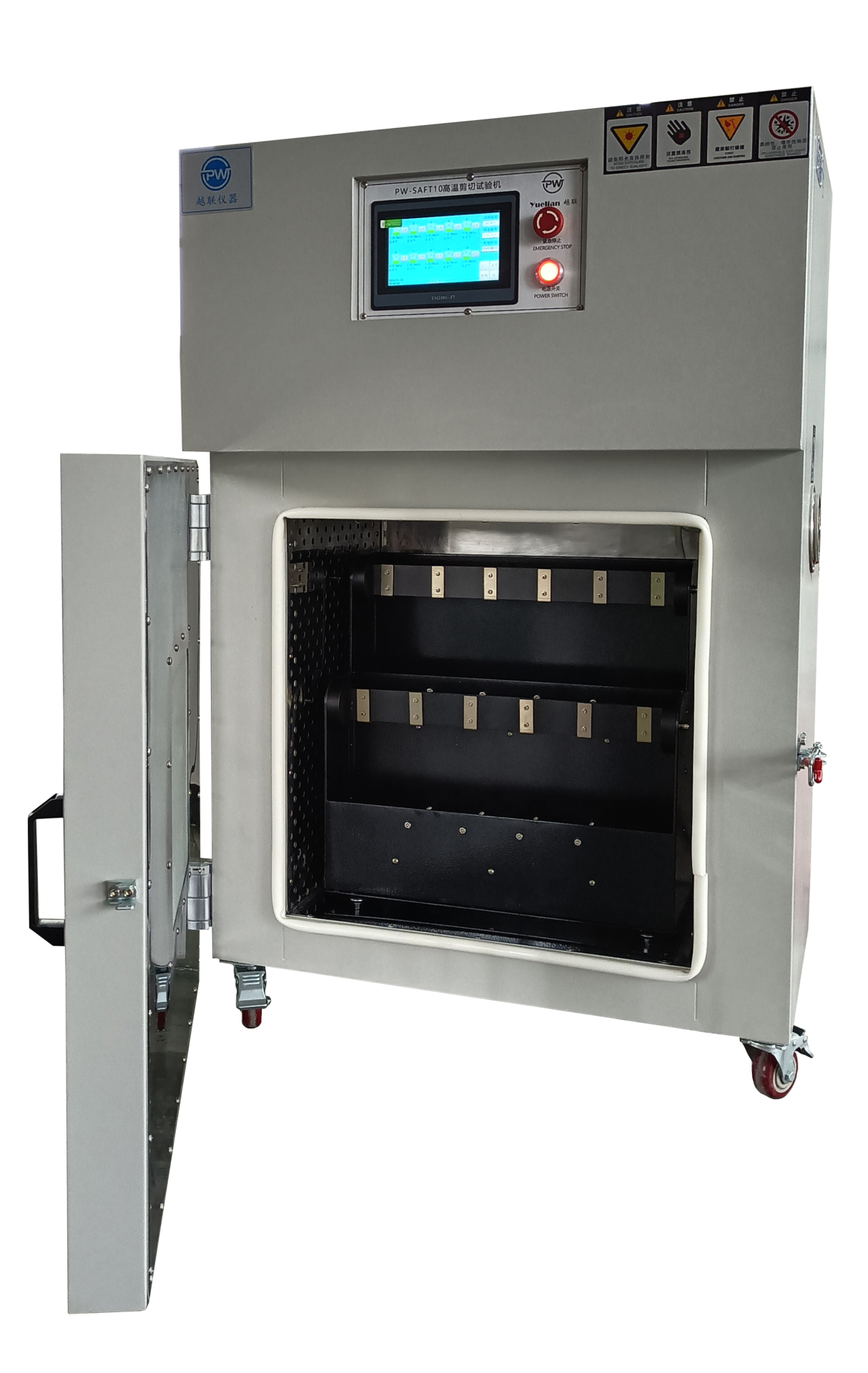

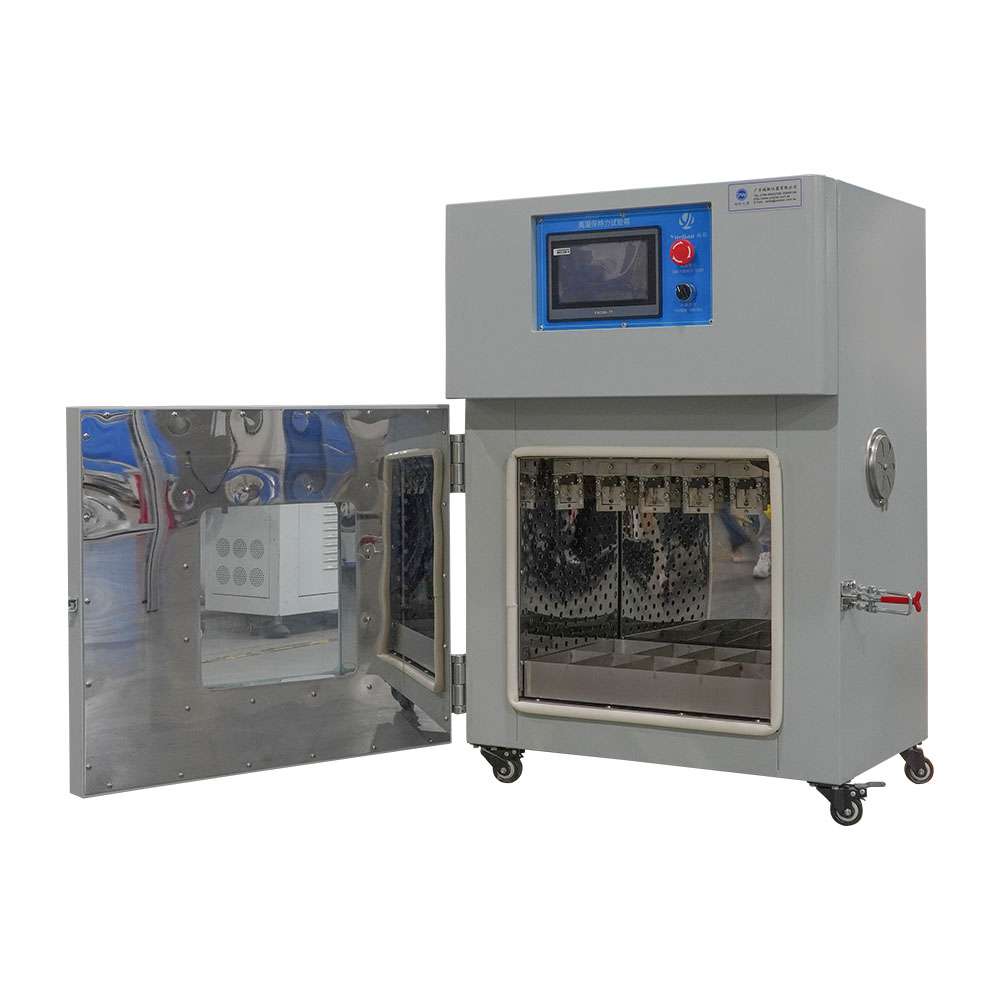

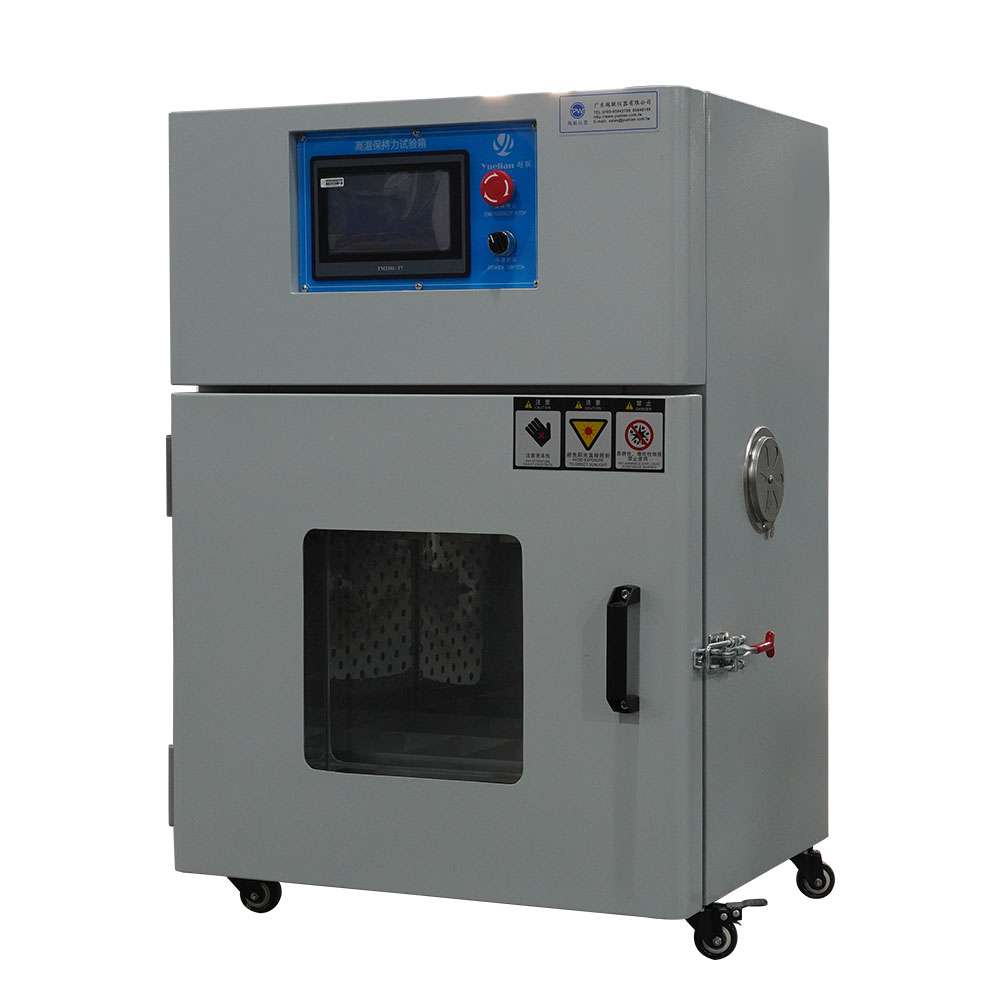

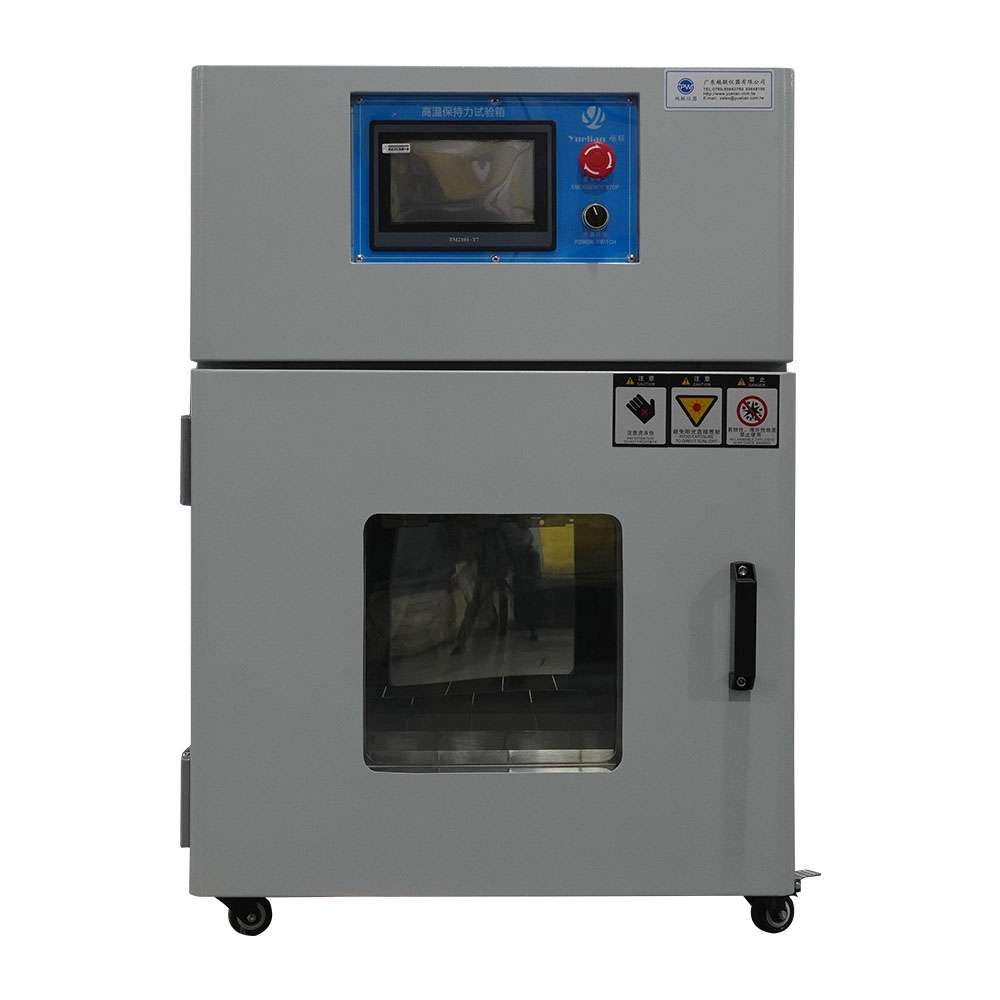

PW-SS10C-T2 Split-Type High-Temperature Shear Tester

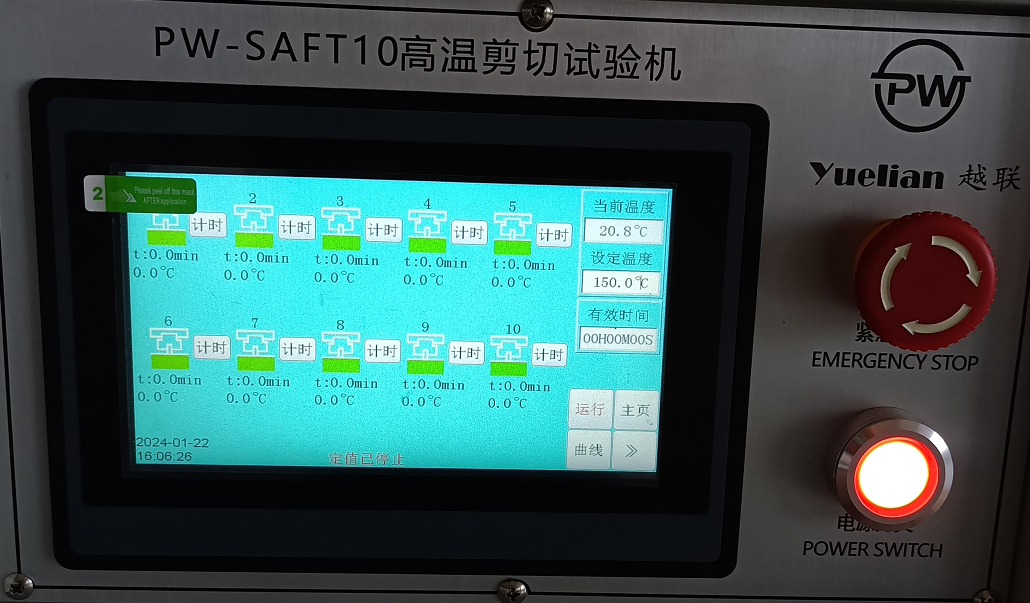

This equipment applies weights to adhesives, adhesive tapes, protective films, and similar products to measure their static load-bearing duration or displacement under sustained force. It evaluates the adhesive performance at elevated temperatures, meeting shear testing requirements for both ambient and high-temperature conditions. The system provides real-time display of temperature and elapsed time for each test station.



Specifications：
Item	PW-SS10C-T2	PW-SS20C-T2	PW-SS30C-T2
Number of test groups	10	20	30
Timer	Electronic LCD display, automatic dwell-time retention, up to 999 999.9 minutes, built-in battery
Weight of Weights	1 kg weight (included as standard; additional weights optional)
Materials of construction	Sheet-metal construction with electrostatic powder coating
Vibration-damping materials	Spring shock absorption plus anti-drop guardrail for weights
Quantity of weights	10	20		30
Number of Connecting Pieces	10	20		30
Number of steel plates	10	20		30
Machine Dimensions W×D×H cm	85×55×140	125×55×140		125×55×160
Machine Weight (KG)	95KG	155KG		185KG
