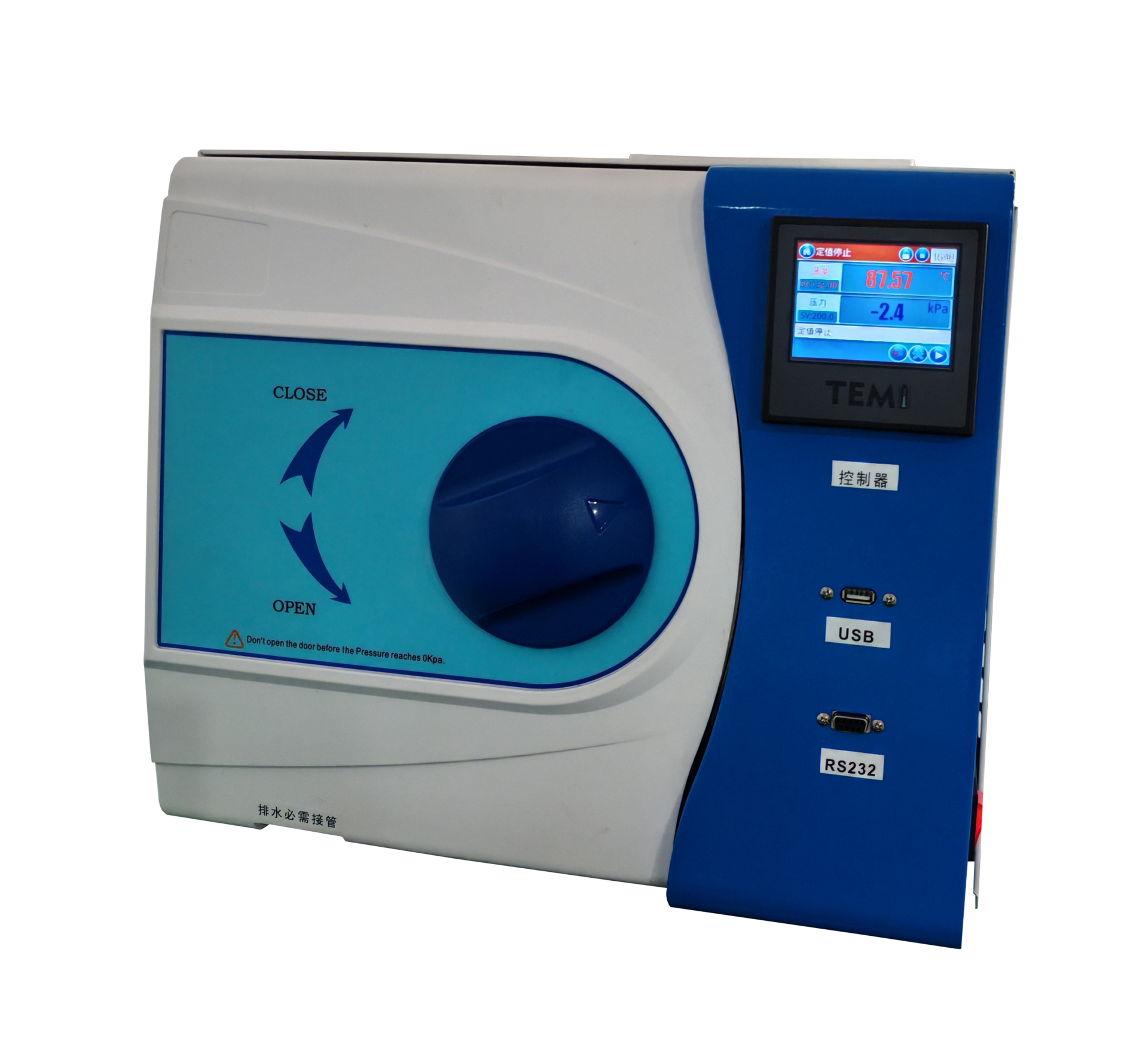

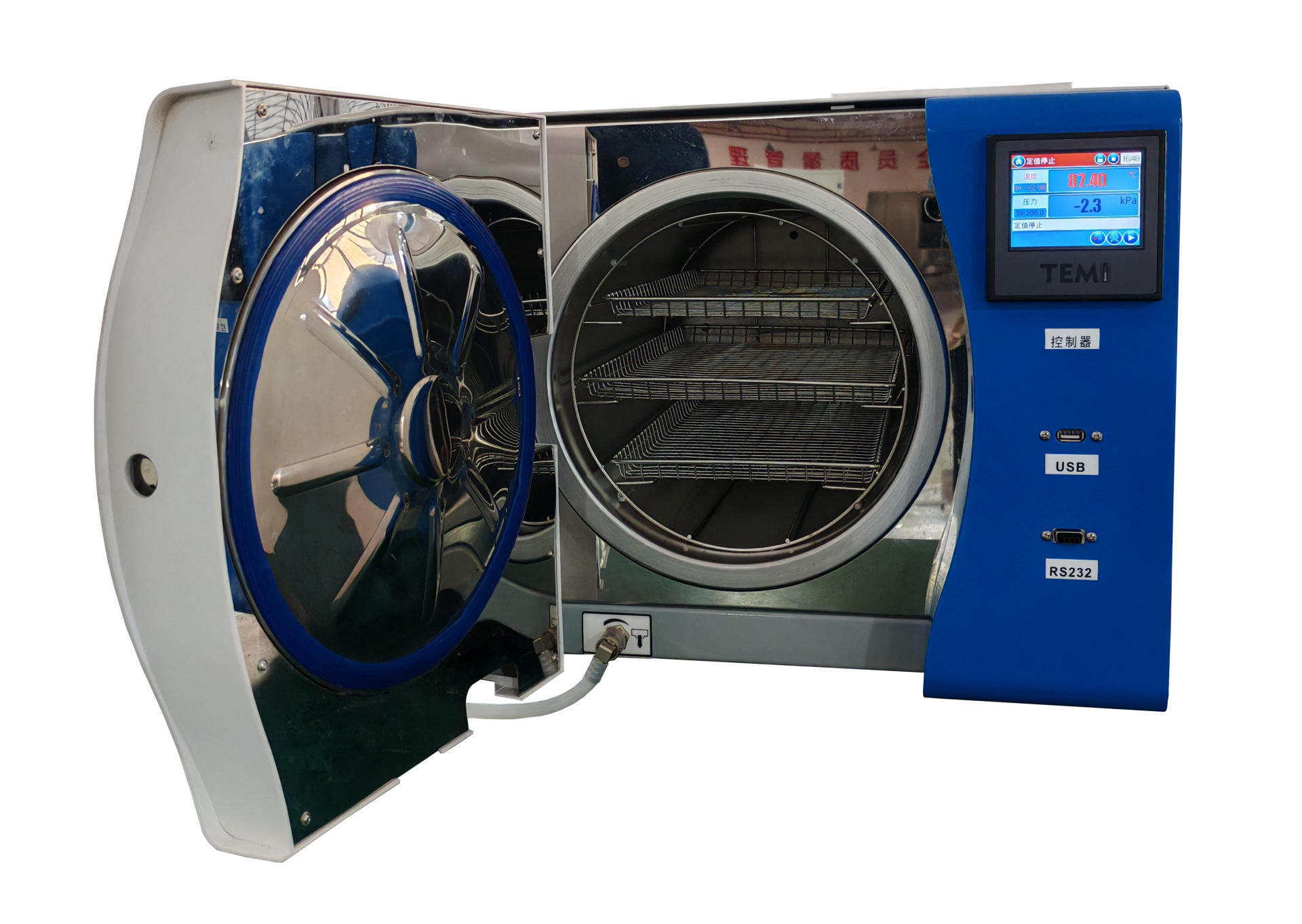

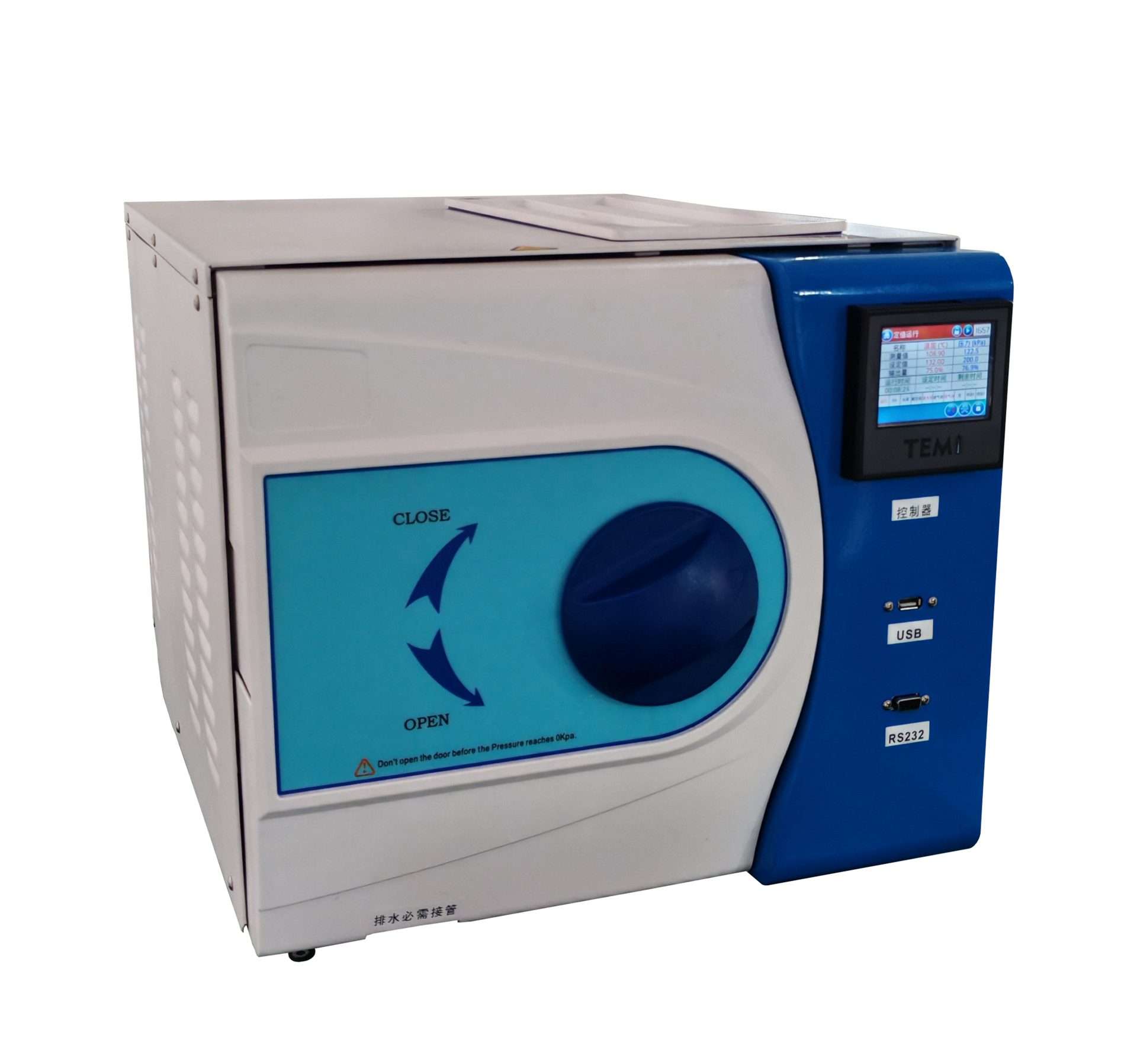

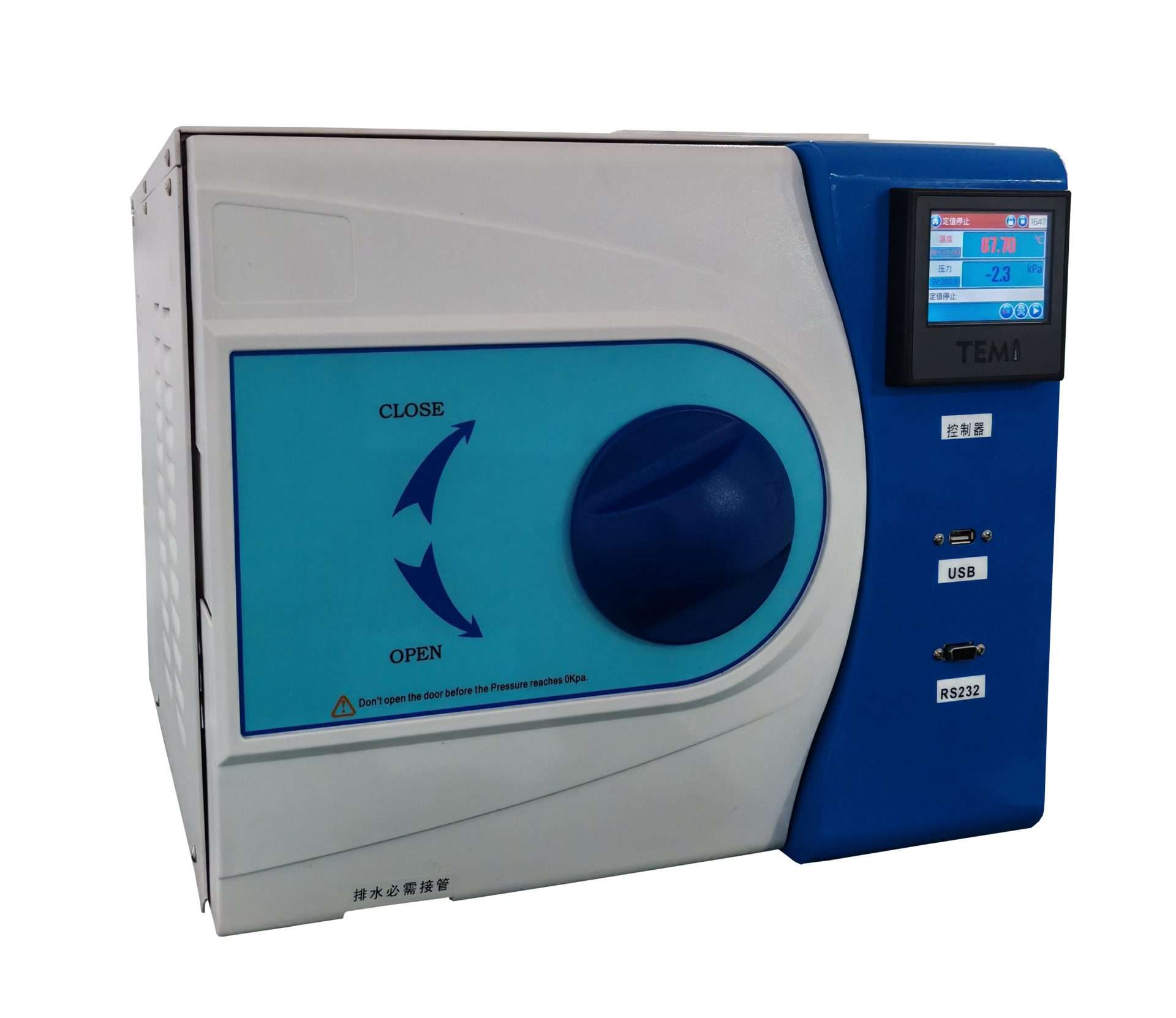

PW-PCT35B High-Temperature Accelerated Aging Test Chamber
Application:
The PW-PCT35B is designed for accelerated aging and reliability testing under high-temperature, high-pressure saturated steam conditions. It provides stable and precise control of temperature and pressure, ensuring consistent and reliable test results. The chamber is suitable for laboratory and quality control applications in material and product durability evaluation.
Specifications:
1. Chamber door opening method: Manual, single door.
2. Internal dimensions: φ246 × D450 (mm)
3. External dimensions: 442 × 400 × 720 mm (W × H × D)
4. Equipment weight: Approx. 60 kg
5. Design pressure: 0.0 kg/cm² to 3.0 kg/cm² (control point pressure)
(Safety pressure capacity: 3.5 kg/cm²)
6. Time range: Adjustable from 0 to 999 hours
7. Design temperature: 100–121°C / 132°C (100–132°C)
(Saturated steam temperature)
8. Humidity range: 100% RH (saturated steam humidity)
9. Power supply: AC 220V, 50/60 Hz, 25 A
10. Temperature uniformity: ±2.0°C
11. Heating-up time: Approx. within 35 minutes from RT to 132°C
(at control point temperature)
12. Pressurization time: Approx. within 45 minutes from 0.0 kg/cm² to 2.0 kg/cm²
