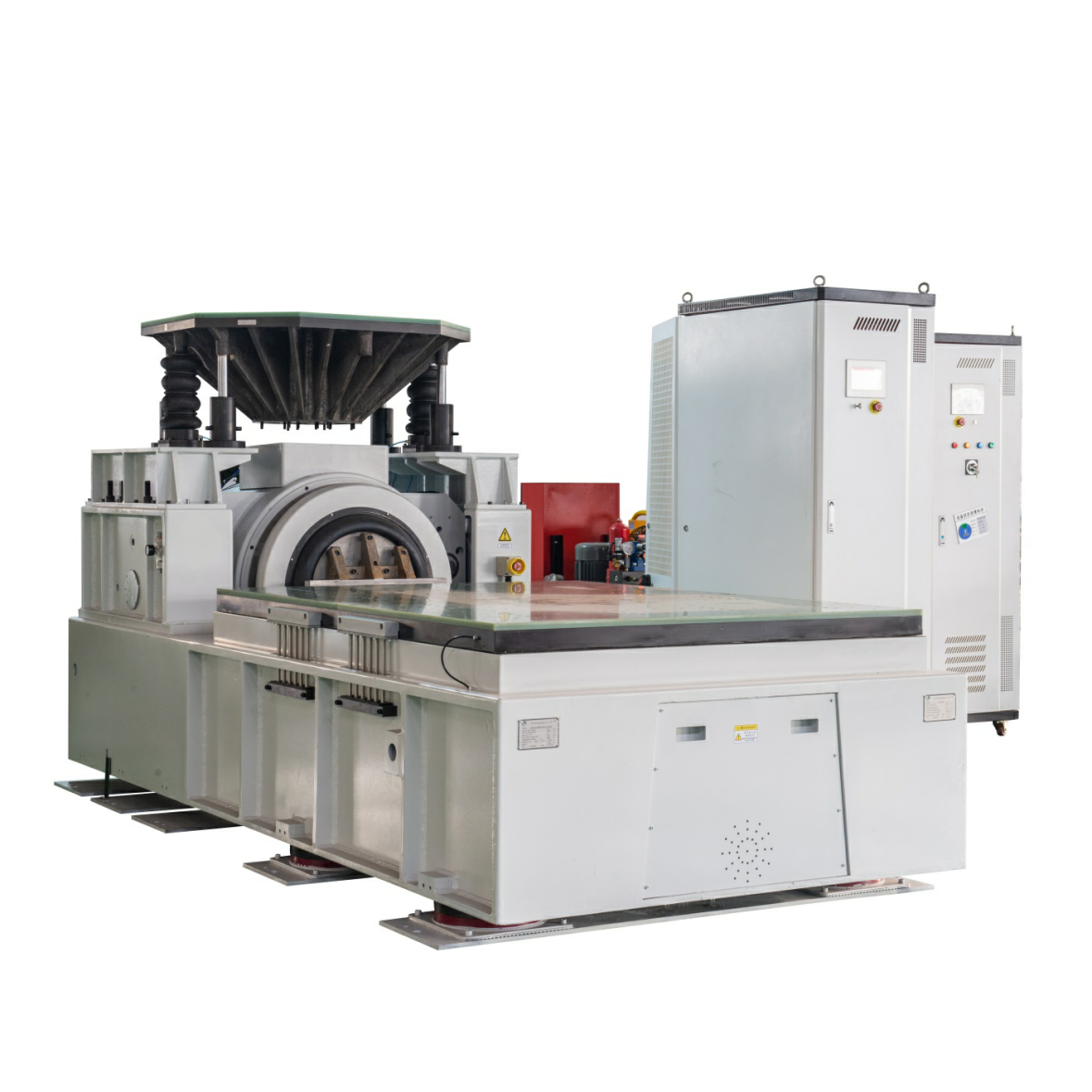

PW-DV-300-150-3/TB0404 Environmental Vibration Temperature Humidity Test System
Introduction:
The PW-VENZO 800 series vibration controllers are excellent controllers with an excellent price/performance ratio. Vibration control solutions from 2-channel to multi-channel are available. The instrument adopts the most advanced international DSP framework and control algorithms, 32-bit floating point 450MHz DSP processor, high-performance 24-bit ADC, and up to 130dB dynamic range to ensure reliable control quality. Each input channel has a parallel sampling rate of 102.4kHz, which can perfectly realise the functions of transient impact and long-time waveform reproduction. The instrument is connected to the mainframe computer through a high-speed network as well as the advanced floating ground design, which greatly reduces the system noise and all kinds of interference to ensure the accuracy of control. All software modules have Chinese operation interface, which is simple and easy to operate. PW-VENZO 800 allows you to select the required hardware modules and software modules according to your needs, and you can also upgrade the software and hardwares in the future according to your needs.
Specification:
| PW-DE-300-150 Shaker Body Parameters | |
| Rated sinusoidal excitation force (peak) | 3kN |
| Rated random excitation force (rms) | 3 kN |
| Shock excitation force (peak) | 6 kN |
| Frequency range | DC～4000 Hz |
| Maximum displacement p-p | 25.4 mm |
| Maximum speed | 2 m/s |
| Maximum acceleration (unloaded) | 1000m/s2 |
| First order resonant frequency | 2900 Hz±5% |
| Maximum load | ＞120 kg |
| Axial vibration isolation frequency | 3Hz |
| Diameter of working table surface | Φ150 mm |
| Allowable eccentricity moment | ＞196N×m |
| Moving coil mass | 3kg |
| Countertop screws | 13×M8 |
| Nut | M8 |
| Leakage | <3 Mt (<1 Mt on special request) |
| Overall dimension (L×W×H) | 756 mm × 530 mm × 630 vertical table body |
| Table body mass | Approx. 490 (vertical table body) |
