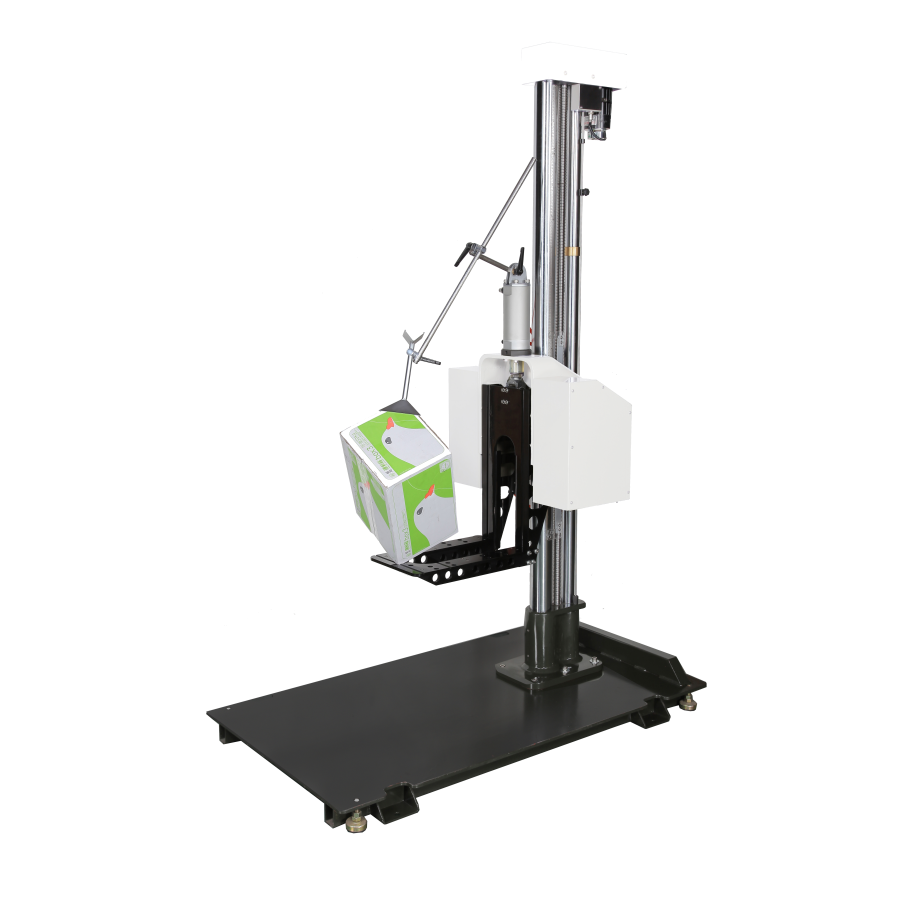

PW-D Series Pneumatic Drop Tester For Packaging and Electronic Materials
Applicable Standards:
ASTM D5276、GB/T 4857.5、CNS 2999、ISTA-1A、ISTA-2A
Product Introduction:
The drop test machine adopts pneumatic drive, single-wing structure, which can be operated in a small space. It is suitable for packaging and electronic materials to conduct free-fall impact testing, such as cardboard boxes, leather cases, mobile phones, electrical appliances, electronic products, and their accessories. It simulates the impact resistance of packaging materials during transportation, and the test results can be used as a safety basis for product packaging and transportation, or for assessing the safety of products when subjected to impact during use. It can also be applied to drop impact and packaging drop tests. The pneumatic drop tester is suitable for the packaging and electronics industries to test the impact resistance of products, and the drop height can be adjusted according to product characteristics, making it very convenient to use.
Conform to Standards
Drop Test Diagram:
| Model | PW-D10 | PW-D11 | PW-D12 |
| Maximum Test Weight | 60 kg | ||
| Lift Speed | 2000 mm/min | ||
| Maximum Test Height (M) | 130cm | 180cm | 200cm |
| Minimum Test Height (M) | 30 cm | ||
| Test Table Area (X·Y) | 27×47 cm | ||
| Maximum Sample Size | 80x80x unlimited cm | ||
| Control Method | Wired remote control | ||
| Cushioning Device | Hydraulic cushioning device | ||
| Air Pressure | 0.5MPA | ||
| Power Supply | Single-phase 220V 8A | ||
| Machine Height (H) | 205cm | 266cm | 288cm |
| Machine Weight (without base plate) | 225kg | 250kg | 275kg |
Base Plate Size (optional purchase) :
| 85x150cm | 120x150cm | 120x180cm | 150x180cm | 180x180cm | 240×150 cm |
