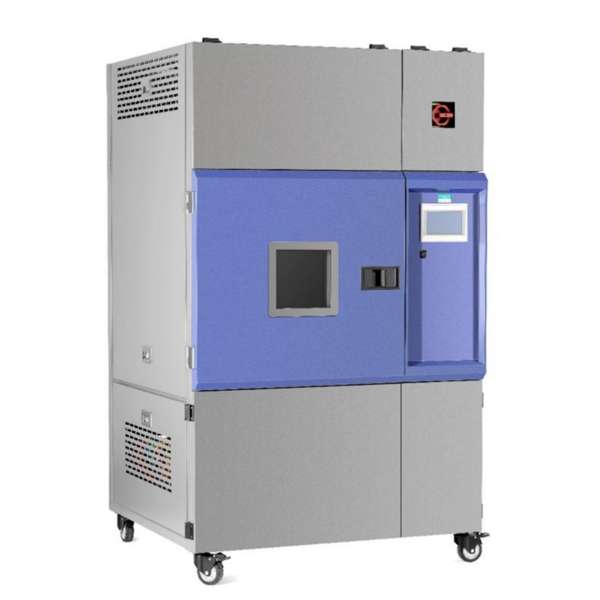

PW-CX6500B Water-cooled Xenon Lamp Aging Test Chamber For Sale
Introduction:
Xenon lamp spectrum vs. solar spectrum
Industrial-Grade Sunlight Simulation
The PW water-cooled xenon lamp aging test chamber (model CX6500B) utilizes a 6.5 kW long-arc xenon lamp cooled by dedicated water systems to simulate full-spectrum solar radiation and its impact on materials under high fidelity. As a premier solar chamber tool, it provides accelerated environmental simulation and consistent aging results for sectors such as automotive materials, plastics, paints, inks, textiles, electronics, and packaging—supporting research, product development, and quality control.
Intelligent, Safe, and Precise Control
Equipped with a reliable Emerson PLC and intuitive touchscreen interface, the chamber enables real-time monitoring and automated adjustment of sample rack temperature (BST/BPT), room conditions (DB), humidity, irradiance, and exposure time. Safety and performance are assured through alarm systems that monitor equipment status and faults.
Large Capacity and High Performance
With internal dimensions of approximately 124 × 114 × 202 cm and exposure area of 6,500 cm²—supporting ~65 samples (140 × 70 mm)—the chamber pairs high throughput with precision. The xenon lamp offers ~2,000 h of lifespan (at 0.51 W/m², 340 nm) while delivering 0.3–2.4 W/m² irradiance across selectable wavelengths (340 nm, 420 nm, 300–400 nm). Additional features include real-time control, standardized testing modes, and capability to support light-dark and spray-free test cycles.
Product application:
The PW-CX6500B xenon arc test chamber is a climatic chamber utilizing a long-arc water-cooled xenon lamp as its light source. It enables solar chamber simulations and accelerated aging tests for scientific research, product development, and quality control. Widely trusted by climate chamber manufacturers, it serves industries including automotive materials, plastics, packaging, paints, inks, dyes, stabilizers, textiles, electronics, and electrical appliances.
Product Features:
PLC controller from Emerson, USA (EMERSON), automatic control, safe and reliable operation in climate test chambers
Touch screen human-machine interface, easy to operate and powerful, ideal for xenon arc test chamber applications
Real-time display and automatic control of sample rack temperature (BST, BPT), working room temperature (DB), relative humidity, light irradiance energy, time, ensuring precise climatic chamber conditions
Equipment status, equipment fault monitoring for uv chamber stability
Setting of test parameters in solar chamber environments
Alarm and information display function for enhanced tensile testing machines integration
Specification:
Overall dimensions: 124cm×114cm×202cm (width×depth×height)

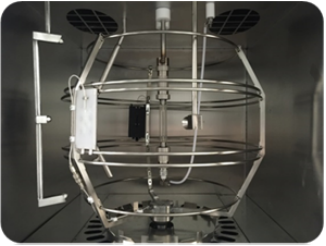

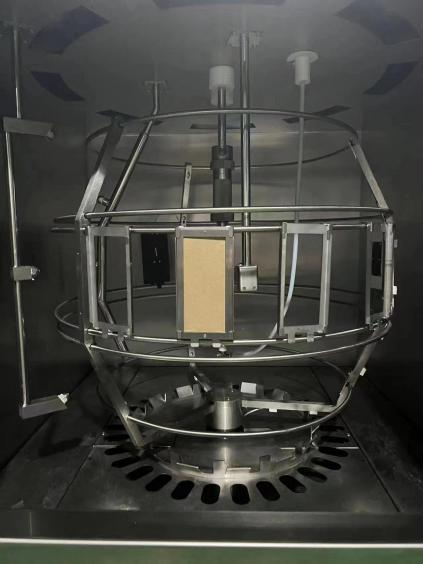

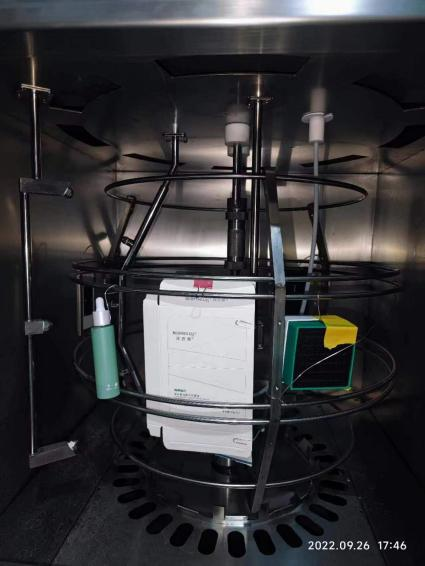

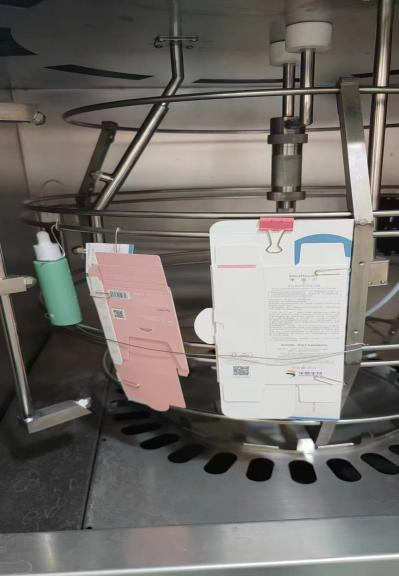

Exposure area: 6500cm2 / about 65 standard samples (140mm × 70mm)
Light source: 6.5kW long-arc water-cooled xenon lamp
Light source life: about 2000h (to irradiance 0.51 W/m2 @ 340nm)
Irradiance display waveband: 340nm, 420nm, 300 ~ 400nm optional
Irradiance range:
0.3 W/m2～1.33W/m2 (@340nm)
0.6 W/m2～2.4 W/m2（@420nm)
29 W/m2～130 W/m2（@300～400nm)
Sample table temperature: Black plate temperature: 40℃～110℃
Black label temperature: 40℃～120℃
The temperature inside the box is 38℃～80℃.
Humidity inside the box: When light: 30%RH～75%RH (related to temperature)
When dark: up to 100%RH
Test conditions: light, dark, spray-free combination
Test standards supported by
Conform to standards: SAE J2412, SAE J2527, ASTM G 155 ISO 105-B02, ISO 105-B04, ISO 105-B06, ISO 4892-2-A, ISO 11341-1,
GB/T 16422-2, GB/T 1865
▲Users can set their own test parameters to meet the requirements of most common standards at home and abroad.
About Us
Since 2007, PW Instruments (Guangdong) Co., Ltd has been a leading climate chamber manufacturer, specializing in products like UV chambers, solar chambers, temperature humidity test chambers, and universal material testing machines. With HQ in Dongguan and a presence in Shanghai and Suzhou, PW serves global industries across automotive, electronics, materials science, and beyond. Certified to GB, ISO, ASTM, EN standards, and ISO 9001 and CE, our solutions deliver precision, durability, and world-class support for accelerated aging and environmental testing needs.
Contact us today to upgrade your testing lab with our powerful and high-capacity water-cooled xenon lamp aging test chamber.
FAQ
What is the xenon lamp’s power and lifespan?
A 6.5 kW water-cooled long-arc lamp, offering about 2,000 h of operation under 0.51 W/m² at 340 nm.
How many samples can be tested simultaneously?
Up to 65 standard 140 × 70 mm samples across 6,500 cm² exposure area.
Which parameters are controlled?
Sample temperature, ambient temperature and humidity, light irradiance, and timing via PLC and touchscreen UI.
Are safety features included?
Yes—fault detection, equipment alarms, and auto shutdown prevent misuse or damage.
Which industries use this chamber?
Widely applied in automotive materials, plastic and coatings, textiles, inks, electronics, and packaging industries.
