Description

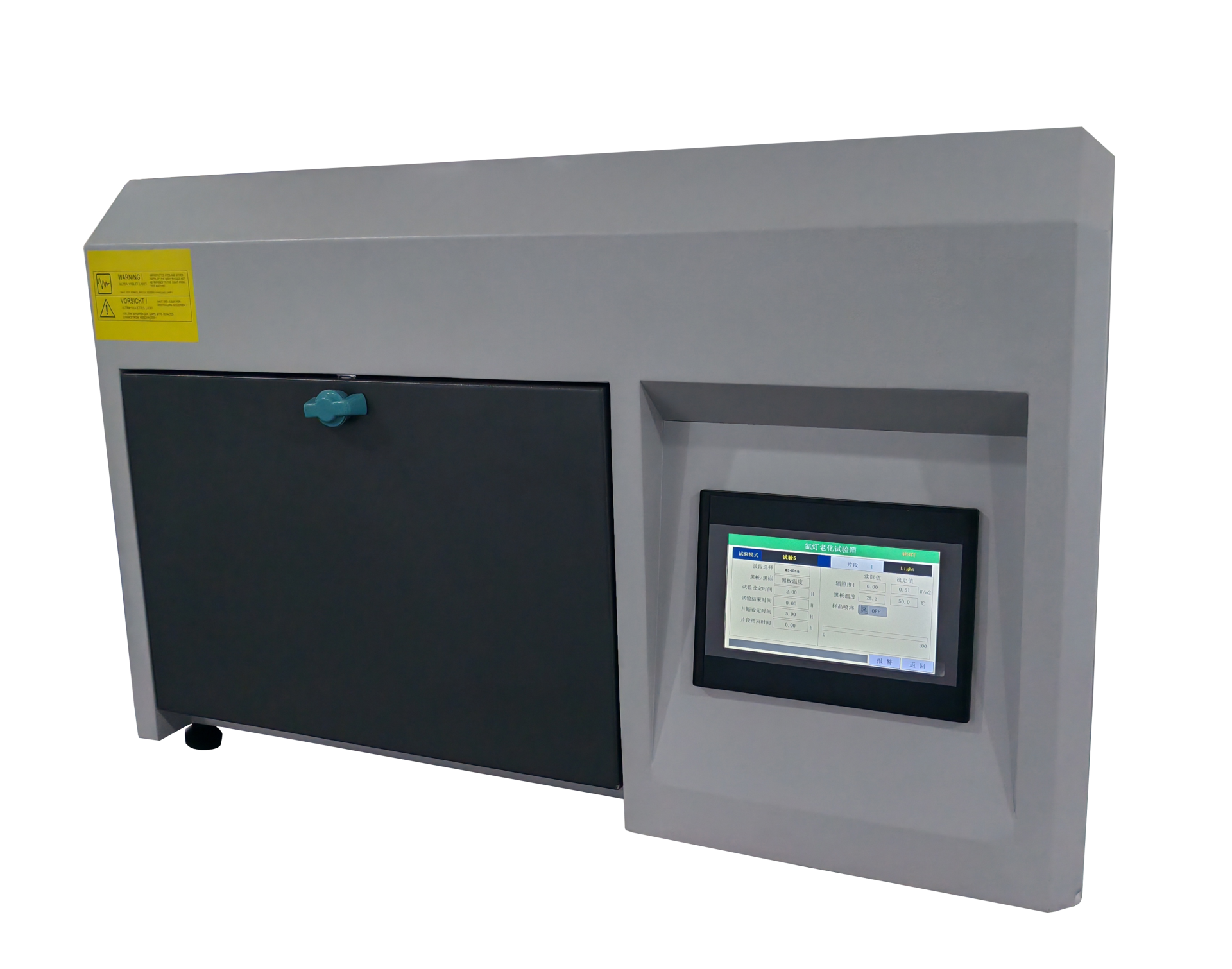

PW-CX19 Air-cooled Xenon Lamp Aging Chamber
Application:
This equipment is a simple desktop xenon lamp aging chamber, which can be used in various auto interiors, plastics, paint, coating, E-meter, textiles, printing and dyeing, dyestuff, decorative materials, wooden floors, safe hats, leathers, petrochemicals, rubber, ect., which is simulating the artificial aging of sunshine test and light resistance, climate resistance, perspiration&light resistance, ect. By setting radiation energy, temperature, humidity, spray, light alternated with darkness in the test chamber, to provide standard necessary for a simulation of natural environment and then test the material of property evolution, such as fade, aging, soft, hard, break, ect.
Features:
- Exposure method: Up and down adjustable sample tray, three-dimensional space can test 3D specimens;
- Light source system：apply imported long arc xenon lamp, high-intensity, 1.8KW professional AC air-cooled xenon arc lamp;
- Using specialized filter components, and the filtered spectrum fully conform to GB, FZ, AATCC, ISO, JIS, ect.
- Irradiance control: digital setting of light intensity , real-time monitor, self-regulation,meet the stability requirements of different standards for the test light source( can switch to 420nm, 340nm, 300-400nm or 300-800nm single-band monitoring)
- Temperature control: black-panel thermometer (BPT), black-label thermometer(BST), can switch to air temperature (CHT) and test as the sample at the same station, which truly reflects the test condition of the sample , and tested data is displayed on color screen in the form of numbers,graphs, curves, ect. by CPU . No need to stop observing.
- Humidification display: the instrument has humidity display value, not controlled.
- Data output mode: the apparatus is equipped with a USB port, and the test data can be directly exported to the EXL table file and read on the computer by using the U disk.
- Data display mode: 7-inch weinveiw color touch screen display and control, support Chinese and English operation, multiple test monitoring modes(numbers, curves, forms), simply control, intuitive and clear.
- Standard setting: custom setting or program setting, AATCC, ISO, GB, JIS and other test standards, which can be permanently saved after setting.
- Monitoring interface: friendly monitoring interface, running curve
Technical Parameters:
| Specifications： | |
| Dimensions | 360×380×140（D×W×H）mm |
| Packing size | 580×500×600mm（D×W×H ） |
| Lamp power | 1.8KW((1 air-cooled imported long-arc xenon lamp)) |
| Lamp life | 1200 hours of lighting |
| Energy control points | @340nm、@420nm、@300～400nm or @300～800nm（When ordering, specify that you need to choose one of the bands） |
| Irradiation intensity | 0.25～0.38W/m2@340nm
0.45～0.71W/m2@420nm 20～51W/m2@300～400nm 500～650W/m2@300～800nm （When ordering, specify that you need to choose one strength） |
| Blackboard temperature | 38～89℃ (adjustable) |
| Temperature fluctuations | ±2℃ |
| Humidity display | No humidity |
| Sprinkler systems | No spraying |
| Specimen trays | Flat type 290mm×315mm |
| Inner material | SUS304# Stainless steel plate, corrosion resistant, easy to clean, beautiful and generous |
| Display screens | 7-inch color touch screen HMI |
| Mode of operation | Programmed operation (dark, photoperiod mode) or fixed value operation are available |
| Power supply | AC220V 50HZ 3.5KW |
