Description

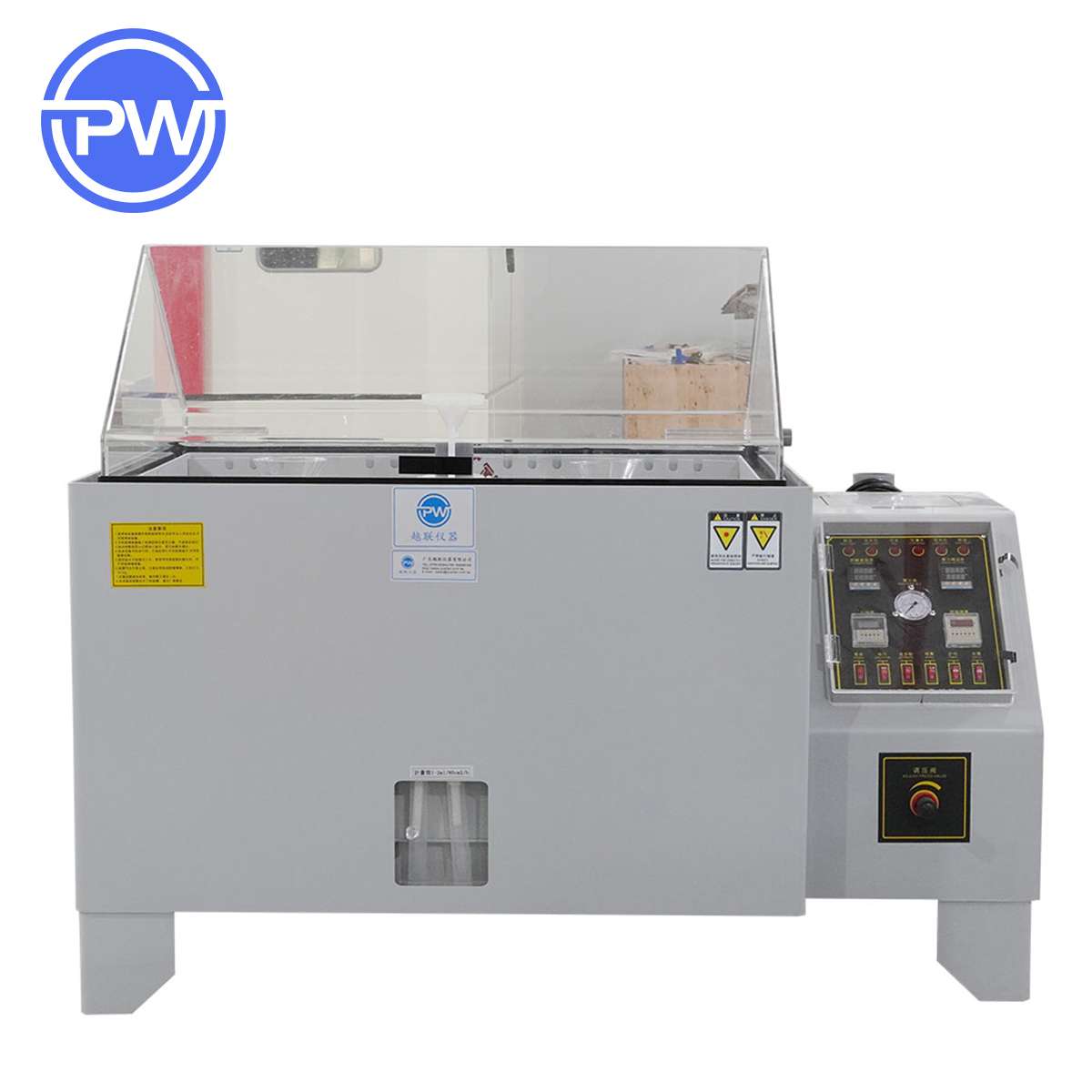

PW-CS270 Economic Environmental Salt Spray Test/Testing Chamber for Corrosion Test Machine Equipment For Sale
Efficient Corrosion Testing Design
The PW CS270 is a cost-effective environmental test chamber built to assess corrosion resistance of spare parts, electronic components, and metallic protective layers. The test chamber incorporates a durable PVC construction supporting up to 60 °C and a SUS304 saturated air barrel ensuring heat and pressure resistance. It enables salt spray test chamber applications across industries with reliability.
Precise Salt Fog Control
This salt fog test chamber employs a two-stage air supply system—rough (2–2.5 kg/cm²) with oil-water filtration and precise adjustment (1 kg/cm², ¼ PT). The salt fog produced offers uniform atomization without crystallization, enabling continuous salt spray corrosion test chamber use. Spray rate is adjustable between 1–2 ml/80 cm²/hr (16-hour average volume), ensuring consistent testing environments.
Intelligent Thermal and Safety System
Temperature control ranges from RT+ 5 °C to 55 °C in the test chamber, and higher in the saturated air barrel during corrosion tests (e.g. 50/63 °C). Both zones use PID controllers with ±0.3 °C accuracy. The unit includes features such as a titanium heating tube, auto OFF switch, digital timer (0.1 s–9990 hr), and an automatic water refill system—making it a dependable corrosion test chamber for extensive testing cycles.
Product Advantages
Cost-Effective, Compact Format
The CS270 delivers environmental chamber capability in a compact 100 L chamber (inner size 90×60×50 cm, outer 141×88×128 cm), perfect for limited spaces requiring reliable salt spray test chamber functionality without overspending.
Consistent Corrosion Simulation
With uniform spray delivery, atmospheric pressure control, and precision heating, this chamber ensures repeatability and accuracy in salt fog test chamber assessments, essential for quality control and regulatory compliance.
Automated Safety and Operation
Auto water refill, PID-controlled dual heating, and built-in safety cutoffs safeguard long-duration tests. These features reduce maintenance demands and support continuous operation, distinguishing this adjustable salt spray corrosion test chamber in lab environments.
Application
The salt spray corrosion test chamber is suitable for testing spare parts, electronic components, protective coatings on metallic materials, and industrial products in controlled environmental chamber conditions.
Features
Test chamber made by PVC board, durable temperature up to 60°C;
Closures made by PVC Impact-resistant board;
Hidden supplementary reagent bottle with water level display, easy to clean and unbreakable;
Saturated air barrel made by SUS#304 material, high pressure-resistant, quality insulation ;
Plane indexing rack, angle adjustable.
Salt spray testing: test chamber 35°C±1°C, saturated air barrel 47°C±1°C
Corrosion test: test chamber 50°C±1°C, saturated air barrel 63°C±1°C
Two-stage adjustment air supply system
Rough adjustment: 2-2.5kg/cm² with oil water filtrate function
Precision adjustment: 1kg/cm² 1/4PT pressure
Take suck salt then flog, uniform atomization, none blocking crystallization, ensure continuous testing.
Adopted special glass nozzle, spray volume & angle can be adjustable
Adjustable spray volume: 1 – 2 ml 80cm²/hr(16 hours average amount)
Directly heating method, speed temperature rising, OFF/OFF auto switch, titanium heating tube.
Test chamber temperature range 0 – 99.9°C, LCD display with P.I.D, control error ± 0.3°C
Saturated air barrel temperature range 0 – 99.9°C, LCD display with P.I.D, control error ± 0.3°C
Heating tank liquid expansion safety temperature range 0-120°C
Saturated air barrel liquid expansion safety temperature control 0-120°C
Digital timer from 0.1s-9990hr
Automatic water adds supplementary system, will be adding when in low water level automatically.
Technical Parameters
| Model | PW-CS270 |
| Temperature range | RT+ 5°C ~ 55°C |
| Temperature uniformity | 2°C |
| Temperature fluctuation | ±0.5 |
| Salt spray sedimentation rate | 1~2ml/80cm²•h |
| Inner size (L×W×H) | 90x60x50cm |
| External size(cm)(L×W×H) | 141x88x128cm |
