Description

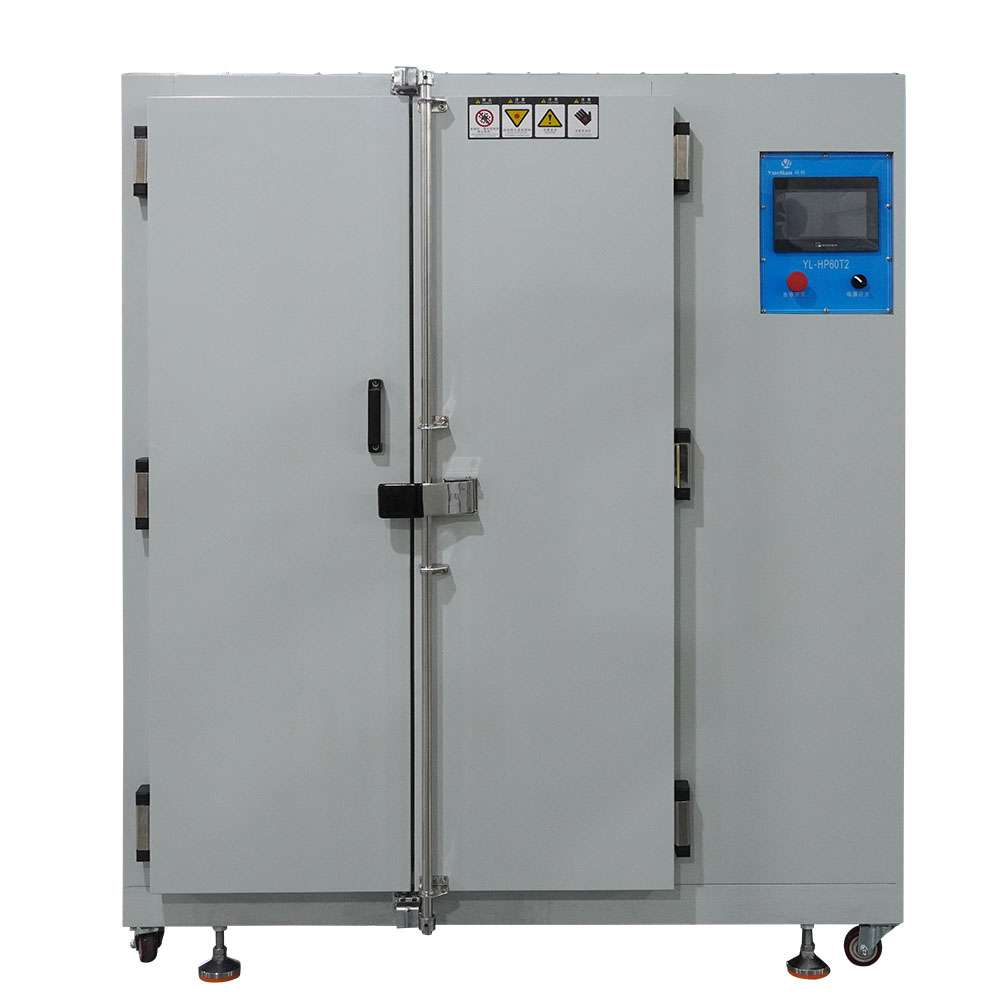

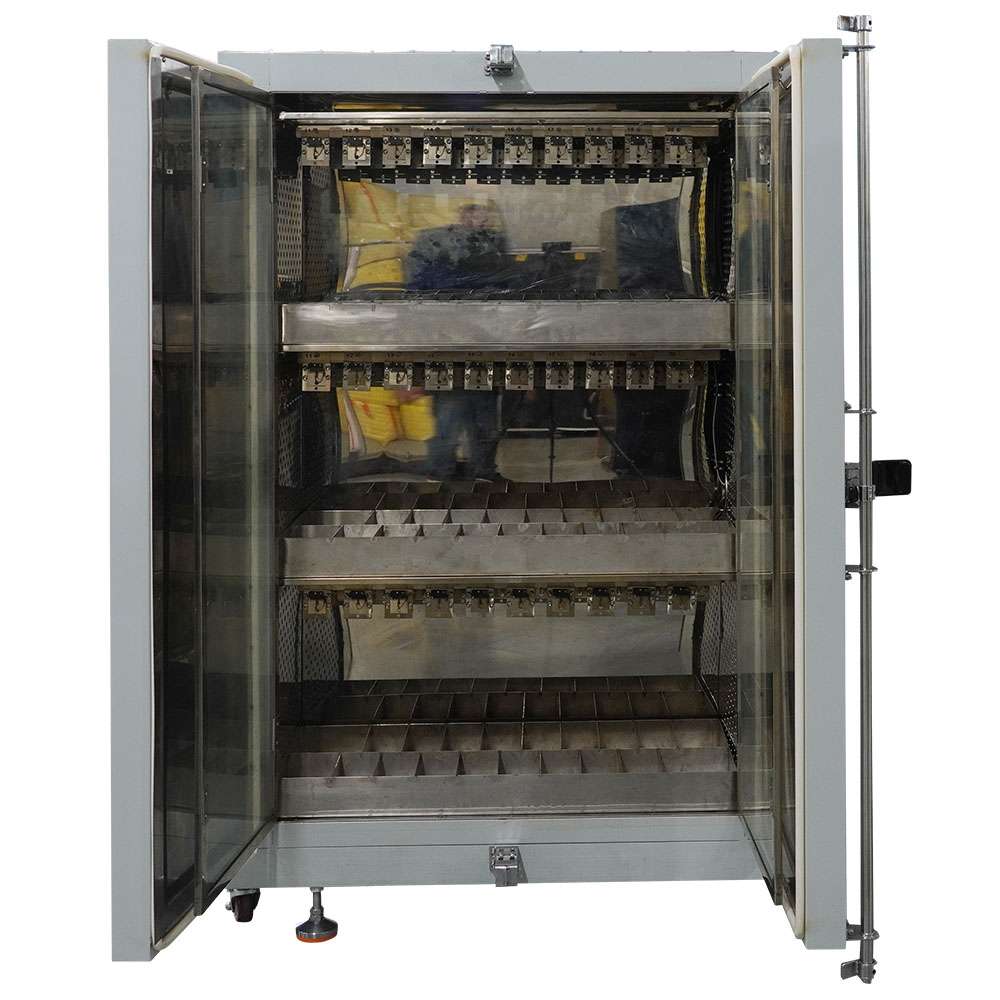

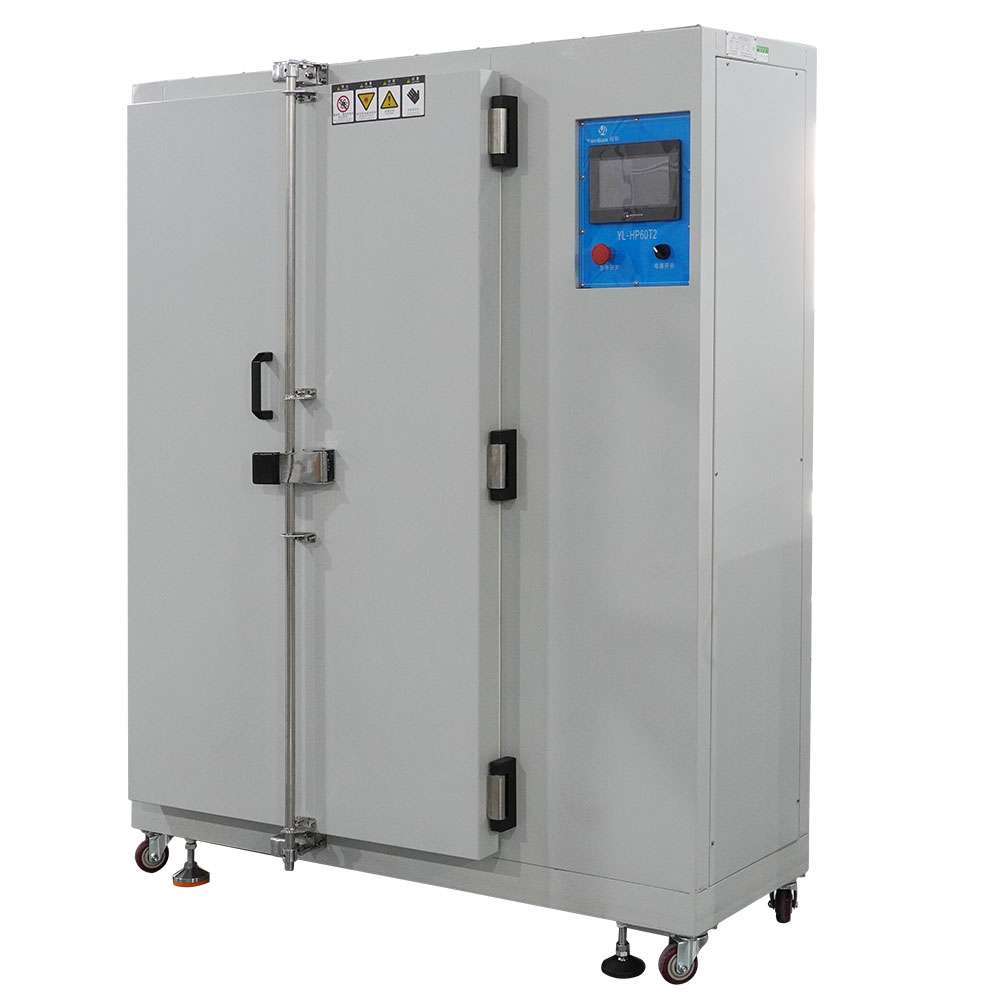

PW-CO800-T2 High Precision Laboratory Drying Oven
I. Product Use
It is widely used for drying and testing polymer materials, die-cutting materials, adhesives, adhesive tapes, films, and other products and semi-finished products at temperatures up to 300 °C, and it can also help users understand the high-temperature resistance characteristics of materials in different temperature ranges. Because it provides stable and accurate temperature control, it ensures reliable test results, so it is widely trusted in material research and quality inspection. But it should be noted that the equipment must be used within the rated temperature range to ensure safety and performance.
II. Specifications
| Specifications： | |
| Inner Size | 100*80*100cmW*D*H (various sizes available to order) |
| Outer Size | 140*120*160cmW*D*H |
| Distribution Accuracy | ±2%（1℃）at-room100℃ |
| Control Method | Intelligent controller with automatic PID calculation, compensation and calibration + S.S.R. temperature control for more stable and precise temperatures |
| Heating Method | Forced horizontal air circulation for fast heat-up times |
| Temperature Analysis | 0.1°C unit display |
| Temperature Range | Normal temperature +5 to 200°C (various temperature bands can be customized) |
| Machine Materials | Full SUS#304 stainless steel argon arc welded interior and high grade baked enamel exterior |
| Accessories | Double overtemperature protection and 2 shed panels |
| Time Setting | 0 to 9999 hours (minutes) Power failure memory type |
| Security Protection | Independent over-temperature protection, safety overload switch |
| Function Description | Internal hot air circulation for even heating of baked objects, heating and timing, constant temperature and timing functions, etc. |
| Features | Good heat insulation, thermal insulation, heat preservation technology, superior sealing effect, low energy consumption, low body shell temperature, less impact on the indoor environment temperature, ultra-high temperature protection, overload automatic power-off system double protection. |
| Power Supply | 380V 50HZ/60HZ |
Use Scenarios
Controlled Drying for Polymer and Adhesive Testing Environments
In polymer and adhesive research laboratories, the PW-CO800-T2 functions as a precision tool to perform drying and thermal resistance evaluation under meticulously controlled temperature conditions. The oven’s ability to sustain uniform heat distribution and advanced overtemperature protection meets exacting safety and consistency standards required for material validation. This functionality supports quality assurance protocols and facilitates the development and certification of new materials in a laboratory setting, delivered by a trusted laboratory drying oven manufacturer. Its integration within thermal testing workflows ensures repeatable data crucial for product development cycles.
Quality Inspection in Die-Cutting and Semi-Finished Material Processing
Manufacturing facilities engaged in die-cutting and preparation of semi-finished products employ the PW-CO800-T2 to guarantee materials meet thermal stability thresholds prior to further processing. The oven’s precision heating and extensive timer settings enable controlled conditioning of substrates, aiding compliance with processing specifications and reducing failure rates. Installed as part of a comprehensive quality control station, this laboratory oven enhances process reliability while aligning with productivity demands. Sourced from a reputable drying oven factory, it supports workflow integration crucial for manufacturing traceability and material certification.
FAQ
What materials can the PW-CO800-T2 laboratory drying oven handle?
Our laboratory drying oven is designed to handle polymers, adhesives, films, tapes, and various semi-finished products. It supports controlled drying and thermal testing to evaluate material properties reliably, making it ideal for material research and quality inspection.
Can I customize the temperature range of this drying oven?
Yes, our drying oven factory offers customization options for temperature bands, with a standard operating range up to 300 °C. We tailor controls and heating parameters to meet your specific testing or production requirements.
How do you ensure safety during high-temperature operation?
We equip the oven with double overtemperature protection and an automatic power-off safety overload switch. These features ensure safe operation and protect your samples and equipment under demanding laboratory conditions.
Do you provide installation or technical support for the PW-CO800-T2?
We offer comprehensive after-sales service including technical support to ensure smooth installation and operation. Our experienced team is ready to assist with any inquiries related to this precision oven supplier product, ensuring optimal performance.
