Description

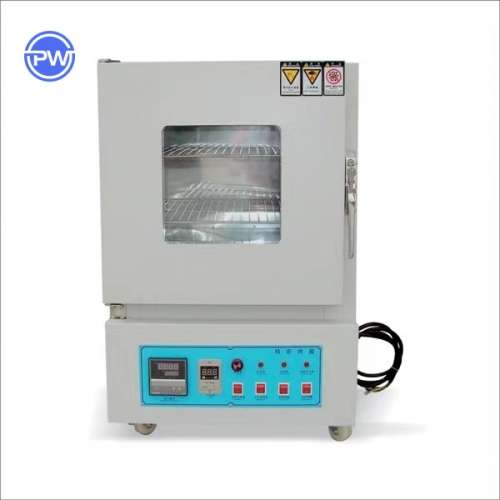

PW-CO Series PW Test Factory Precision Oven Machine Equipment Selling
Use
The oven provides a stable and reliable test space temperature environment required by physical and chemical changes such as preheating and drying for various materials, qualitative changes and other physical and chemical changes. It can be widely used in rubber and plastics, adhesive tape, food and pharmaceuticals, daily chemical industries and other industries.
Feature
1. Simple operation procedures and good temperature uniformity;
2. The door is a double-layer tempered glass structure, which can clearly observe the test items in the box;
3. Over temperature protection, automatic power off when overloaded;
Technical Parameters
| Model | A:T3-72； B：T3-150；C：T3-270；D：T3-480；E：T3-1008；F：T3-1800 (Note: T stands for oven, 3 stands for 300℃, 72 stands for volume) |
| Inner box size（Length X width X height）mm | A：40×40×45； B：50×50×60； C：60×90×50； D：80×100×60； E：140×120×60； F：160×140×80 |
| Temperature Range | (2～5) 2=200℃ ； 3=300℃； 4=400℃ ；5=500℃ |
| Distribution accuracy | ±1%（1℃）At-room 100℃ ； |
| Control Method | P.I.DAutomatic temperature calculation |
| Heating method | Hot air circulation system |
| Temperature analysis | 0.1℃Unit display |
| Manufacturing material | Internal SUS#304 stainless steel, external high-grade paint |
| Accessory | Double over-temperature protection and 2 pieces of plate |
| Time setting | 0～9999 hours (minutes) power failure memory type |
| Safety Protection | Independent over-temperature protection, safety overload switc |
| Power voltage | AC220V/50HZ Simplex |
Use Scenarios
Material Preheating and Thermal Stability Testing in Research Laboratories
In laboratory environments dedicated to material science and chemical analysis, the PW-CO Series laboratory oven ensures precise preheating and temperature stability essential for accurate physical and chemical transformations. By delivering uniform heat via its hot air circulation oven system and maintaining strict control through PID regulation, it supports experiments assessing thermal aging, adhesive curing, and plastic stability. Integration with laboratory management systems allows seamless process documentation and quality assurance, addressing compliance needs while optimizing research efficiency.
Quality Control and Drying Operations in Pharmaceutical and Food Industries
Within pharmaceutical and food production facilities, this drying oven factory model plays a critical role in sample conditioning and quality assurance. It provides consistent thermal environments to dry and prepare samples without compromising product integrity. The model’s over-temperature protection and user-controllable timers help meet industry safety standards and GMP requirements. By offering uniform temperature distribution and sturdy construction, it integrates smoothly into existing quality control workflows, contributing to reliable testing outcomes and regulatory adherence in manufacturing processes.
FAQ
What safety measures does the PW-CO Series precision oven include?
We have equipped the PW-CO Series precision oven with double over-temperature protection and an automatic power-off function. These safety features ensure safe operation and prevent overload conditions, protecting both the equipment and your testing environment reliably.
Can the PW-CO Series be customized for specific testing volume or dimensions?
Yes, the PW-CO Series offers multiple models with varying inner box dimensions to fit your testing needs. From compact sizes like 40×40×45 mm to larger volumes such as 160×140×80 mm, we provide flexible options tailored for diverse laboratory or factory applications.
How do you ensure precise temperature control in your laboratory ovens?
Our ovens utilize a PID automatic temperature control system maintaining ±1% accuracy. Combined with hot air circulation, this guarantees uniform temperature distribution and stable testing conditions essential for reliable chemical and physical material processes.
Do you provide installation or maintenance support for your drying oven factory equipment?
We support our customers by providing detailed technical guidance for installation and routine maintenance to ensure optimal performance of your drying oven factory equipment. Our team is available to assist with troubleshooting and prolong the lifespan of your precision ovens.
