Description

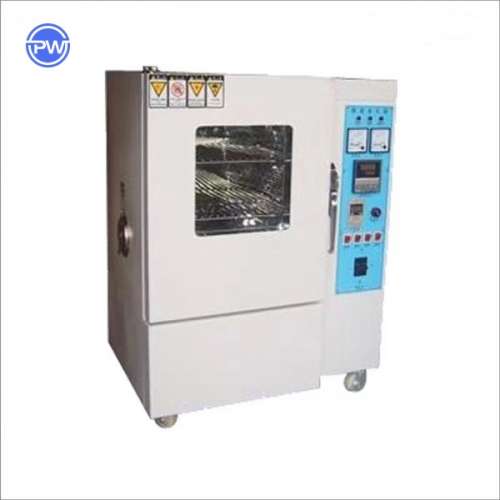

PW-CAV2 Series Ventilation Aging Test Chamber Machine Equipment Manufacturer Sale
Use
The ventilation aging test chamber uses the intensity ventilation method to affect the physical changes of the specimen, the body structure is sealed and insulated, and is equipped with a watt-hour meter to calculate the ventilation constant of the power consumption. Specially used in rubber and plastic aging testing machine, product design meets UL requirements.
The VA2 series ventilation aging test chamber is widely used in laboratories, laboratories, electronics, hardware, optoelectronics, plastics, molds, shoe materials, spraying, printing, aerospace and other industries.
Feature
1. The exterior is made of SECC steel plate and refined powder baking paint, and the interior is made of SUS stainless steel;
2. Brand new high temperature resistant long shaft motor;
3. Vortex fan
4. Silicon Packing (Silicon Packing);
5. Overheating protection: automatic power off when overloaded;
6. Circulation method: forced horizontal air circulation;
7. Heating method: PID + S.S.R;
8. Temperature range; room temperature + 20-260 degrees; Note: the temperature is adjustable
9. Thermostat: PID microcomputer control;
10. Timer: when the temperature rises, the time has come, and the time has come, cut off the fire;
11. VA2-101 and VA2-150 have glass windows, while models above VA2-270 do not have glass windows.
12. There are intake and exhaust devices;
13. High temperature protection, over current protection.
Technical Parameters
| Model | VA2-101 | VA2-150 | VA2-270 |
| Internal dimensions (W*H*D)mm | 450＊500＊450 | 500＊600＊500 | 600＊900＊500 |
| Outside size (W*H*D)mm | 650＊1000＊620 | 700＊1160＊660 | 830＊1580＊680 |
| Heating time | RT—260℃ about 45 minutes | RT—260℃ about 45 minutes | RT—260℃ about 45 minutes |
| Accuracy | ±0.5℃ | ±0.5℃ | ±1.0℃ |
| Evenness | ±1.0℃% | ±1.0℃% | ±1.0℃% |
| Voltage | 50HzAC、220V、1PH | 50HzAC、220V、1PH | 50HzAC、220V、1PH |
| Current | 2.5kw | 3KW | 5KW |
| Grid piece | Two layers of grid plate are divided inside | The inner part is divided into 4 layers grid plate 2 pieces | The interior is divided into four eight-layer grid plates |
| Remark | Single door | Single door | Single door |
