Description

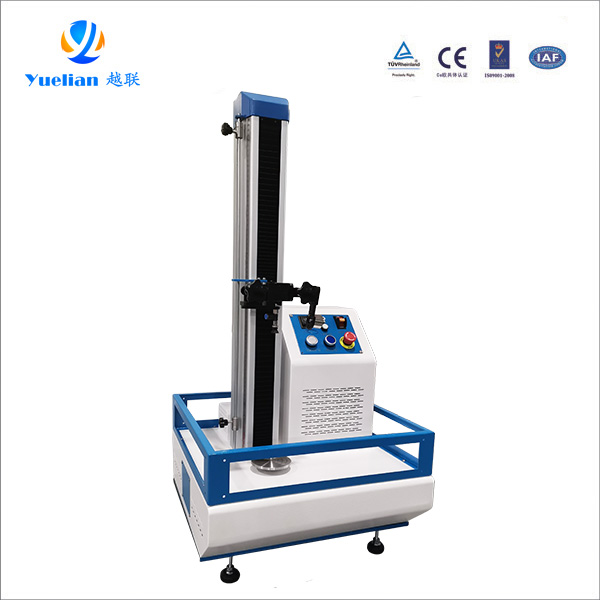

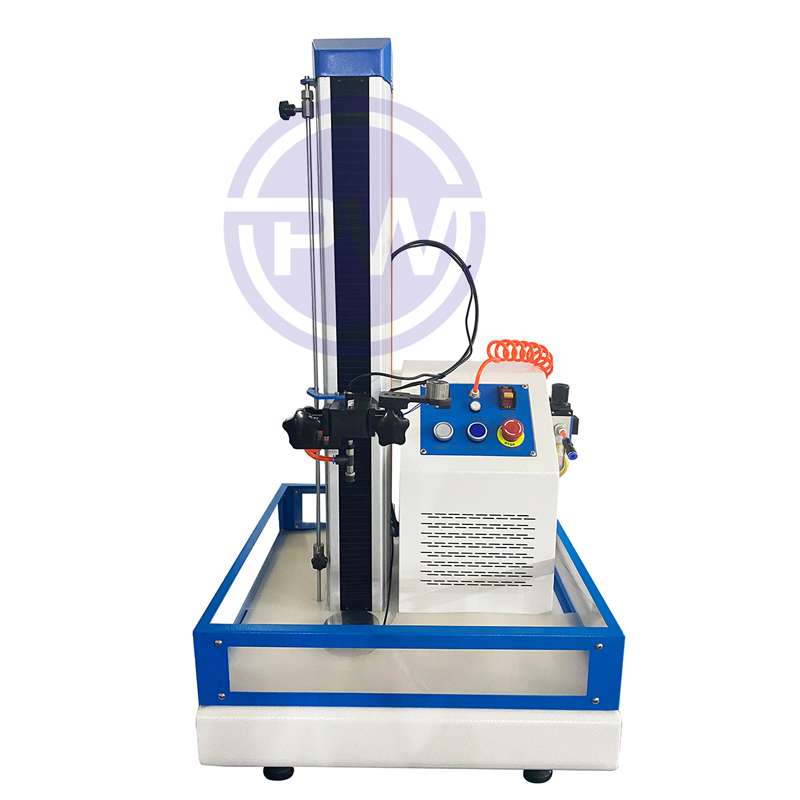

PW-5507FIE Falling Dart Impact Test Equipment Plastic Paper and Paperboard Drop Ball Impact Tester
Applications:
PW-5507FIE Foam Ball Drop Impact Energy Tester, through the given diameter and quality of the steel ball in the specified height of the free fall on the specimen, test the impact of falling on the object, but also to test the foam impact absorption test, the machine adopts a high-frequency acquisition system so that the machine is safe, reliable, measuring accuracy and other characteristics.
Testing Theory:
Software Interface:
Test Report:
Specification:
Steel ball drop distance: 0-800mm (height adjustable)
Quality of steel ball or acrylic ball: customised
Sensor capacity: according to the customer falling ball weight and height configuration (optional standard model or high-end models)
Height control: electric motor lift
Control mode: full computer control
Software acquisition frequency: 100KHZ
Ball release: vacuum suction cup automatic release
Sensing device: infrared fixed-point sensing ball centre distance
Centre point adjustment: front and back, left and right mobile adjustment
Machine size: length 600mm * width 340mm * height 1170mm
Machine weight: 45kg
Use voltage: 220V
