Description

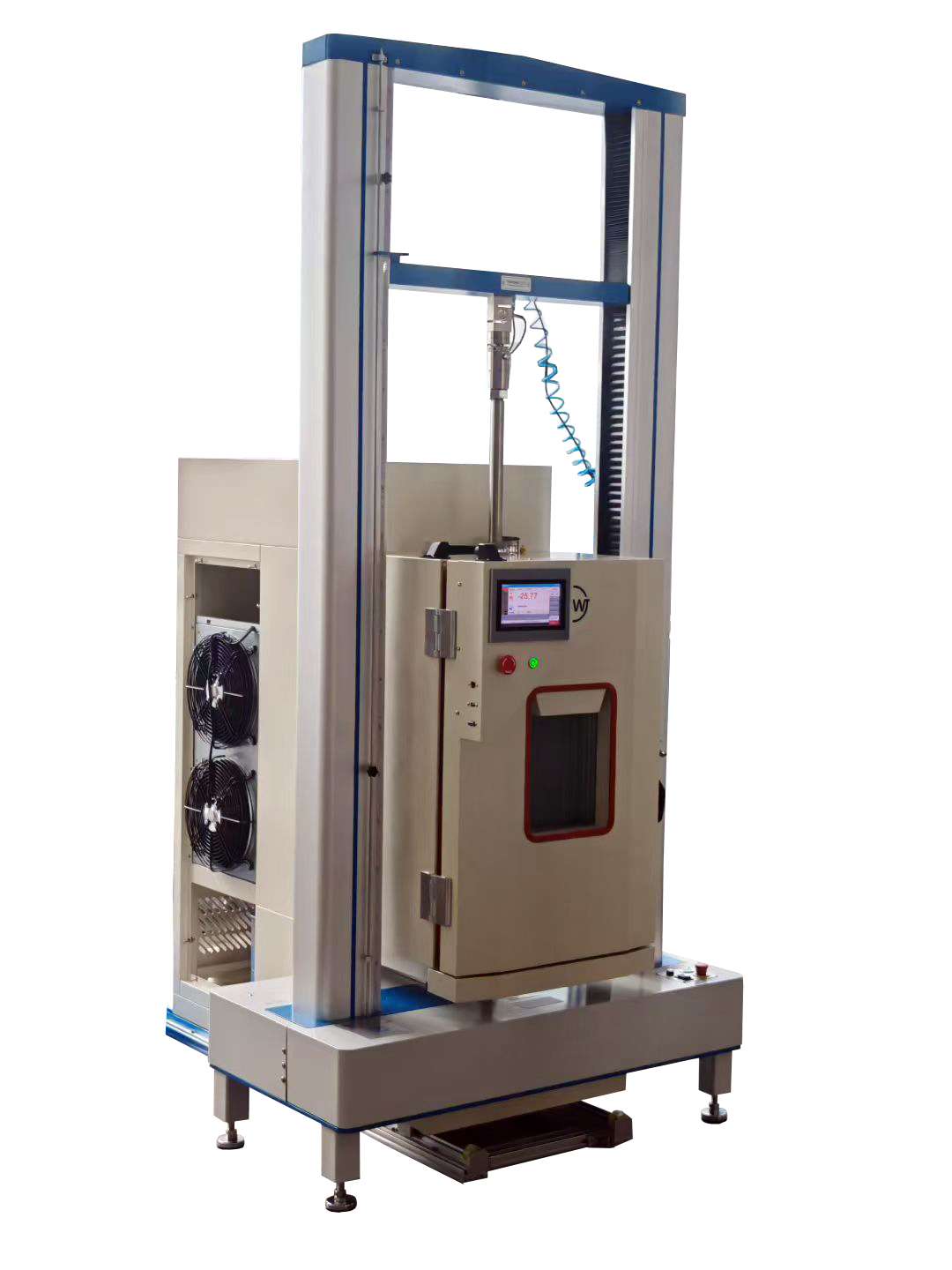

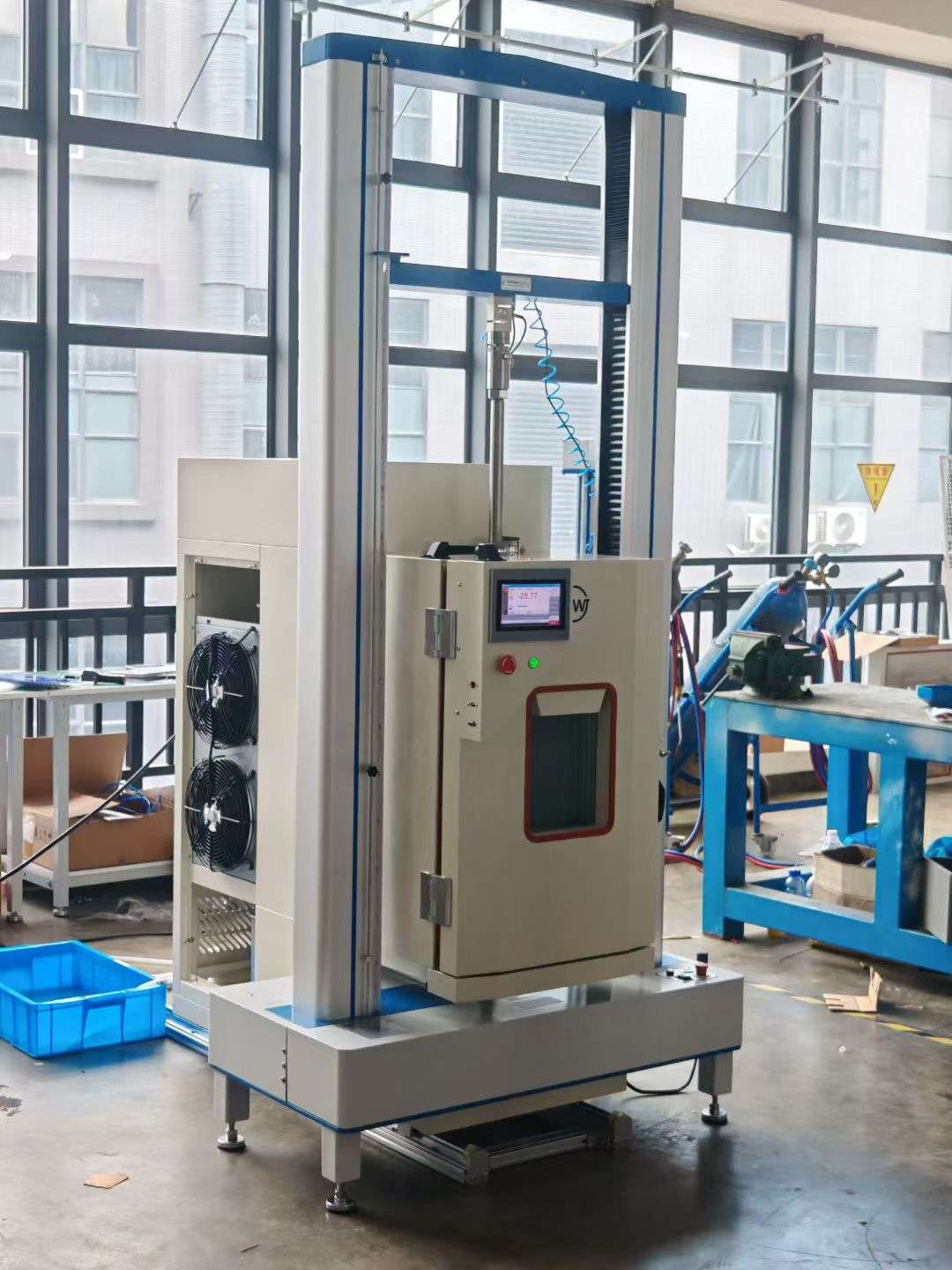

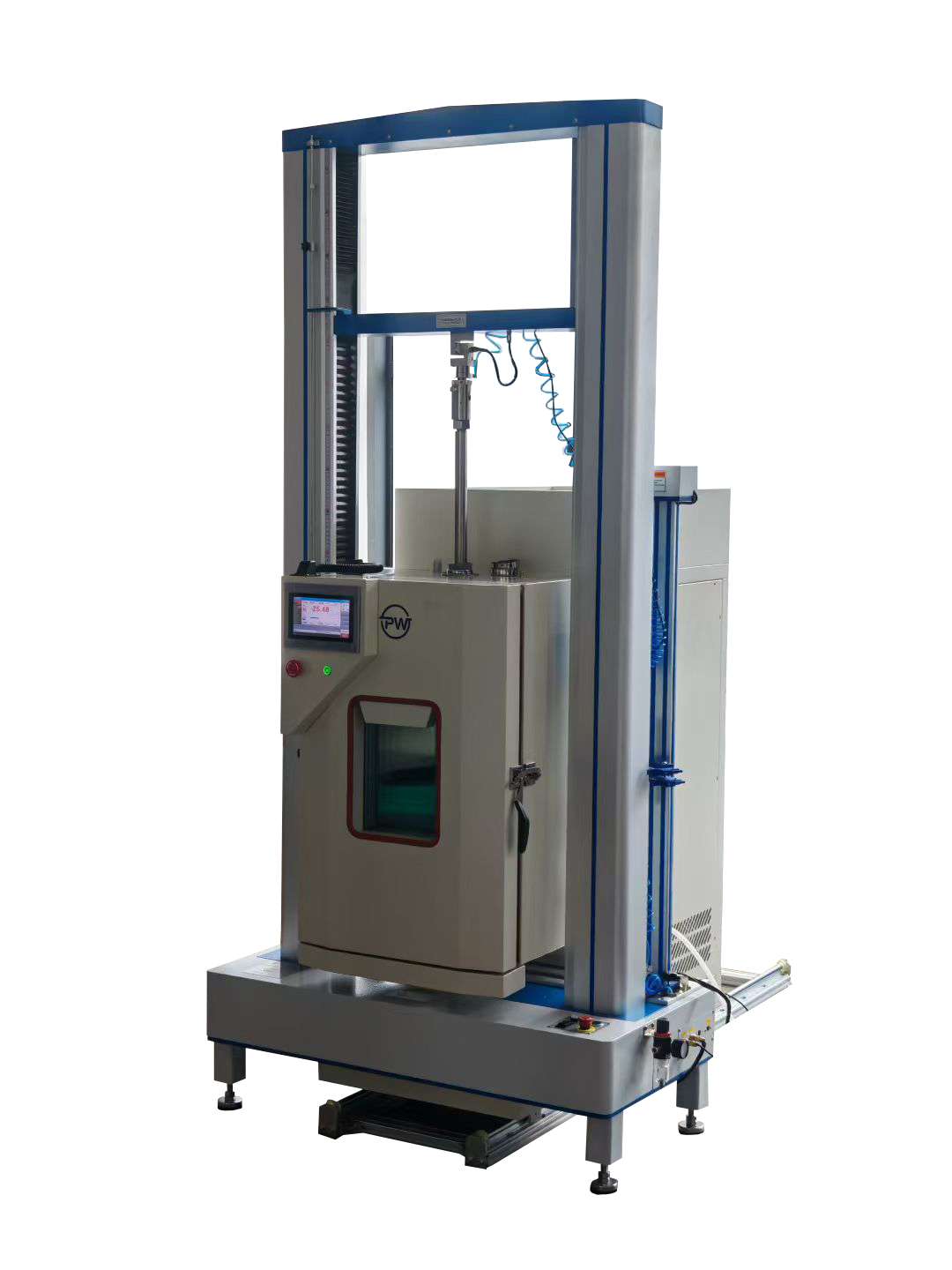

PW-UCD80A-40A High and Low Temperature Tensile Tester



Scope of application:

Widely used for polymer materials, die-cutting materials, adhesives, adhesive tapes, films and other products and semi-finished products of -40 ℃ ~ 150 ℃ to complete 90 ° or 180 ° peel test, tensile test, to understand the mechanical test of materials in different temperature range as a reference of material properties, the machine occupies little space and has good operability.

Specifications

Capacity (MAX): Max 20KN(50N / 100N / 500N / 1KN / 2KN / 5KN / 10KN / 20KN)

Unit of Force: N、kN、gf、kgf、lbf、kP、tf(SI)、tf(long)…

Unit of Length: mm、cm、Inch、m、km、um…

Force Resolution: 1/1,000,000

Accuracy: ±0.1%

Stroke Resolution: 1/1,000,000

Sensor Accuracy: 3/10,000

Test Stroke: 60 cm

Test Space: 350×350×620 mm

Speed Range: 0.01~500 mm/min (Customizable)

Temperature Range: -40~150℃

Humidity Range: 20%~98% (Optional)

Machine Dimensions (W×D×H): 800×930×2600 mm

Machine Net Weight: 350 KG
