Description

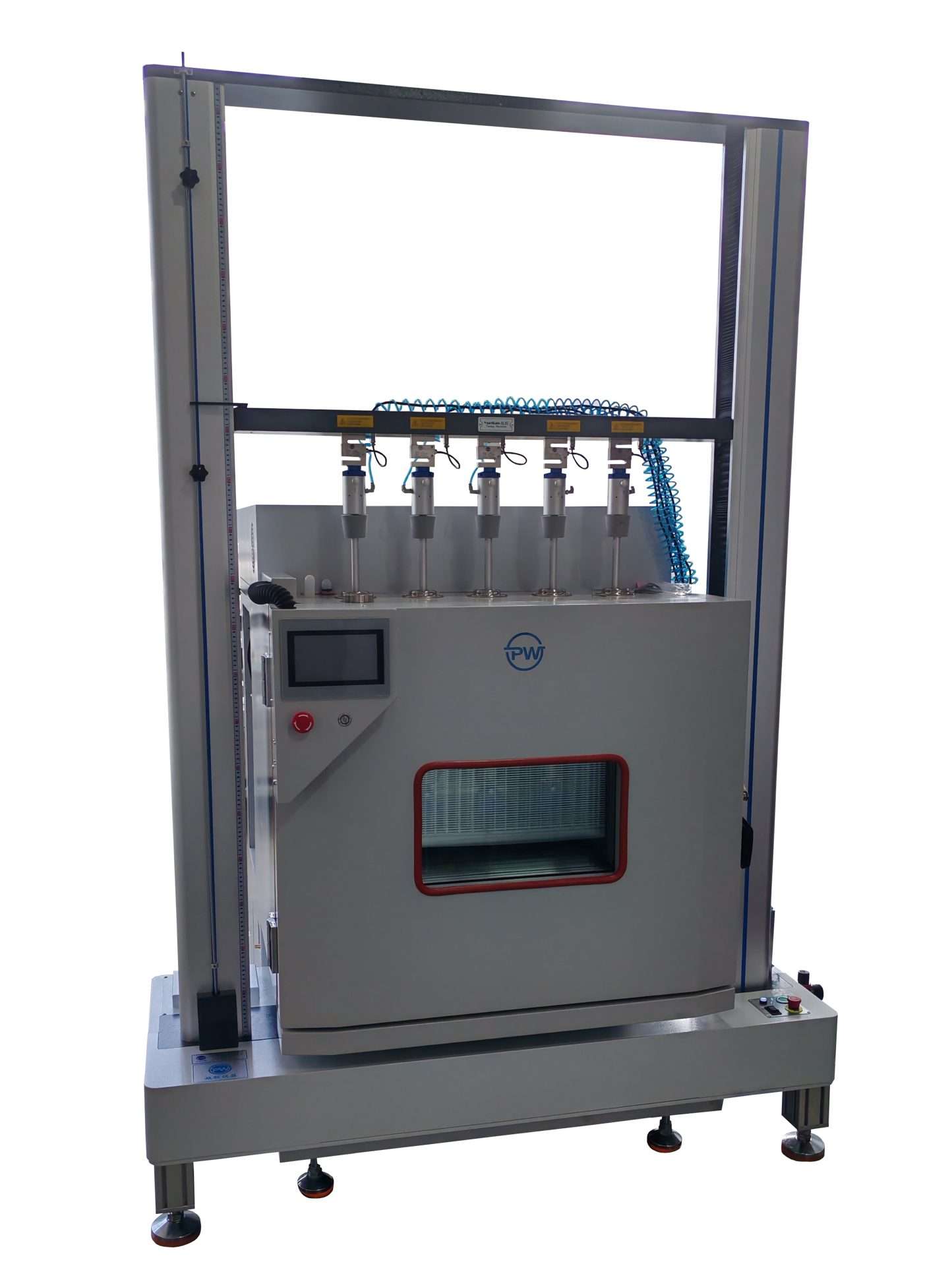

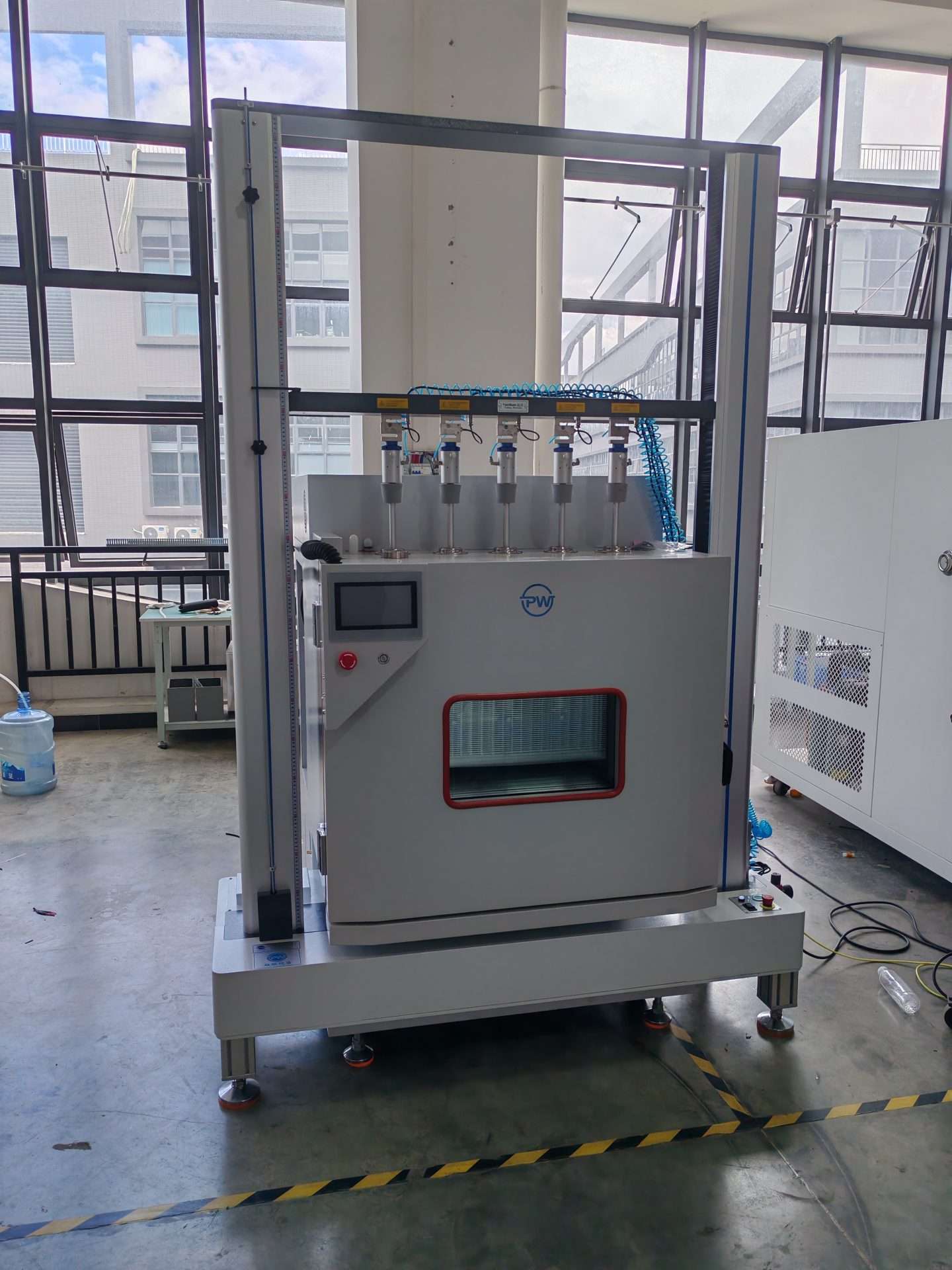

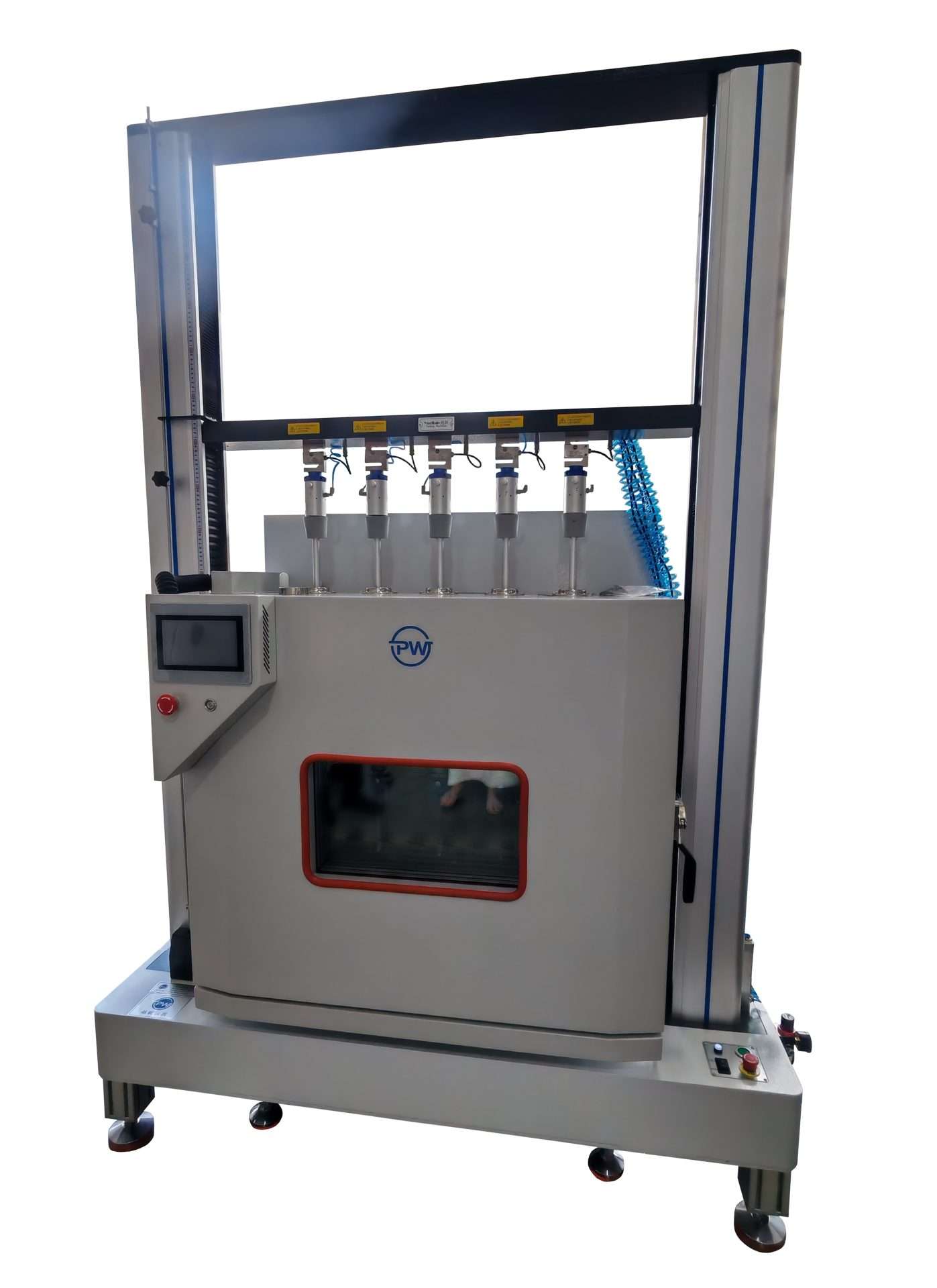

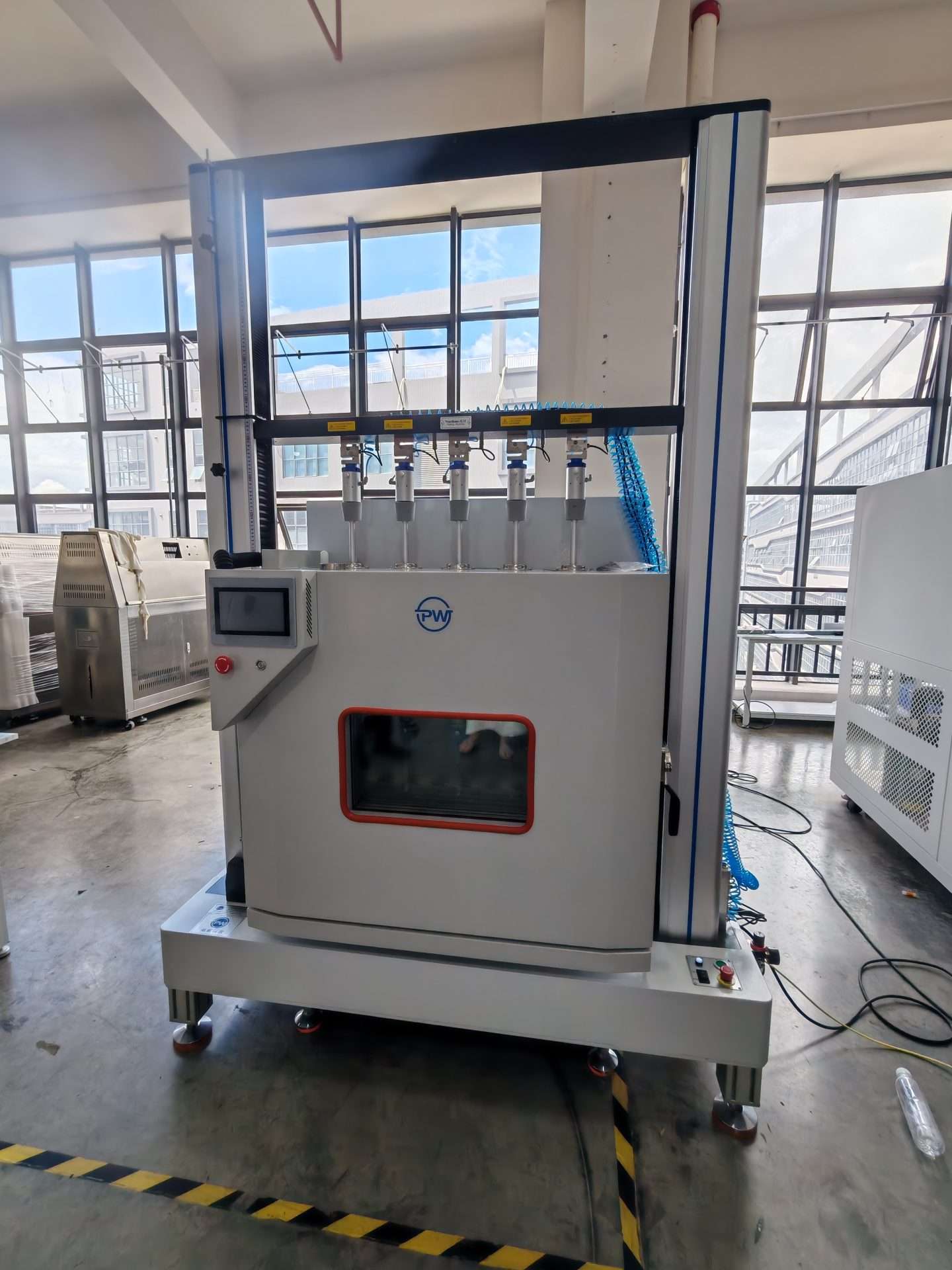

PW-UCD217-40-5S Five-Station High-Low Temperature Peel Force Tester
This machine is widely used in rubber, plastic, polymer, adhesive and tape industries. It performs tests on tensile strength, elongation, compression strength and compressibility of materials under ambient, low and high temperature conditions. Users can easily switch to room‑temperature operation, enabling fast, convenient and multi‑functional testing in one unit.
Technical Specifications
- Capacity: 50N~1KN, 5-station configuration
- Temperature Range: -40℃～150℃
- Display: Computer display
- Force Resolution: 1/1,000,000
- Sensor Accuracy: 0.03%
- Machine Accuracy Class: Class 0.5
- Stroke Resolution: 1/1,000,000
- Displacement Accuracy: ±0.01mm
- Software Functions: Supports tension, compression, peeling, tearing, release force and other tests
- Control Mode: Full computer operation
- Temperature Control: PID automatic calculation with stable error
- Display Accuracy: 0.01℃
- Temperature Accuracy: GB±2℃
- Circulation System: Forced air circulation by fan
- Heating System: SUS304 stainless steel convection heater
- Protection Device: Leakage and overload protector
- Cabinet Material: SUS#304 stainless steel
- Cooling System: Imported compressor, compact refrigeration system, low failure rate and easy maintenance
- Temperature Control: 7-inch touchscreen display, multi-program editing
- Humidity Range: 20%~98%RH
- Test Stroke: Approx. 40cm; supports testing 5 samples simultaneously
- Test Chamber Dimensions: Approx. 100×35×62cm (W×D×H); backward opening available upon request for larger space
- Test Speed: 0.1～500mm/min, computer-controlled; equipped with quick fixture adjustment buttons and control box
- Force Unit Conversion: kgf, N, lbf, g, ton, MPa
- Stop Modes: Overload stop, emergency stop, automatic stop on specimen break, automatic stop at upper/lower limits, automatic reset
- Machine Dimensions: Approx. 130×230×230cm (W×D×H)
- Drive System: Servo motor, synchronous pulley and precision ball screw drive
- Total Power: Approx. 6KW
- Machine Weight: Approx. 380kg
- Power Supply: 220V 50/60Hz 30A
- Standard Accessories: 5 sets of flat peeling fixtures, 20 pieces/box of peeling steel plates, 1 set of software, 1 computer cable; customer-supplied computer
